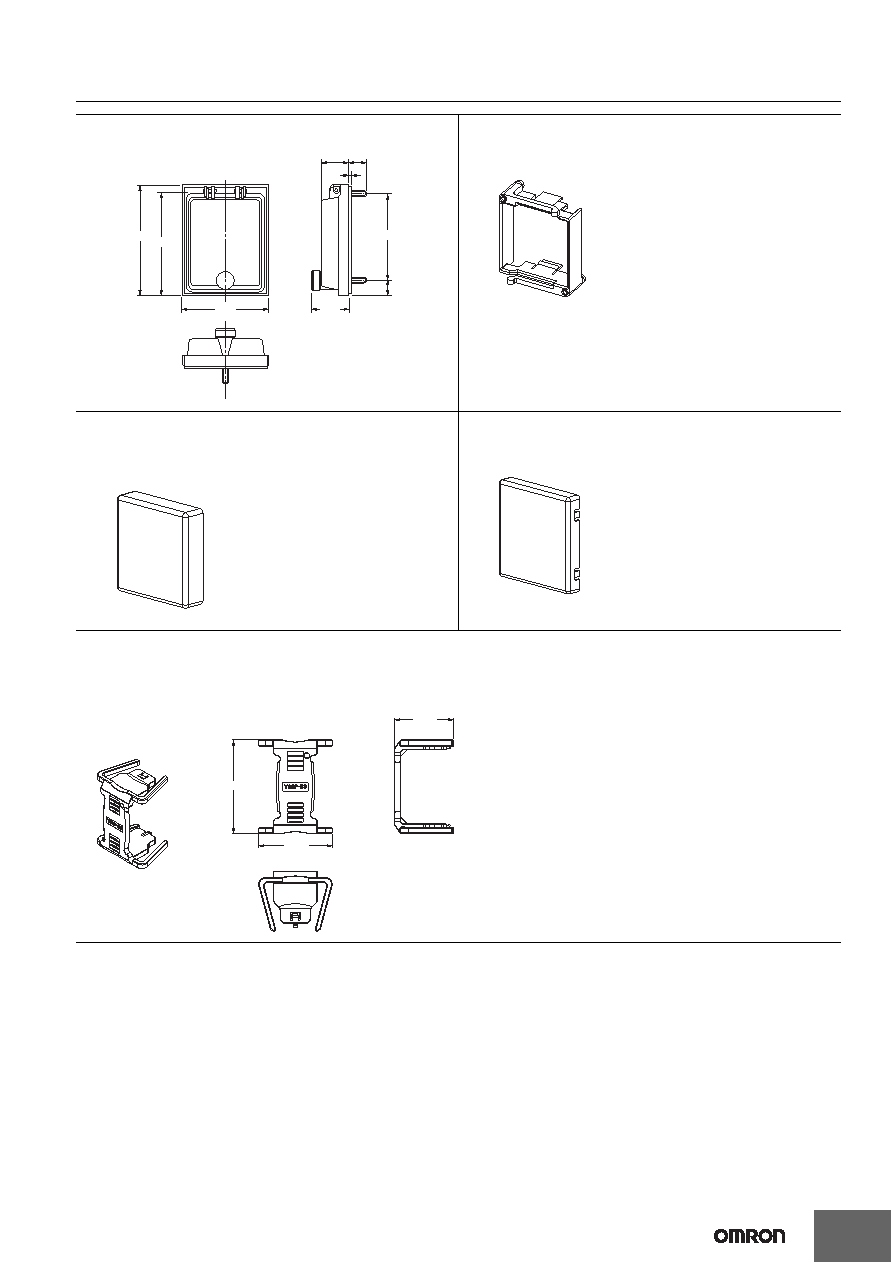

E5CD/E5CD-B

Draw-out Jig (Cannot be used on a Push-In Plus terminal block type)

Y92F-58

Waterproof Cover

Y92A-48N

Mounting Adapter

Y92F-49

Front Cover

Y92A-48D

Note: This Front Cover cannot be used if the Waterproof Packing is

installed.

Front Cover

Y92A-48H

67.6

28.9

21.9

(2)

79.2

87.7

The Mounting Adapter is provided with

the Digital Temperature Controller.

Order this Adapter separately if it

becomes lost or damaged.

This Front Cover is soft type.

It is able to operate the controller with

using this cover.

This Front Cover is hard type.

Please use it for the mis-operation

prevention etc.

55.5

43.6

35.2

Use this Draw-out Jig to remove the interior body of the Digital Temperature Controller from the case to perform maintenance without

removing the terminal wiring.
