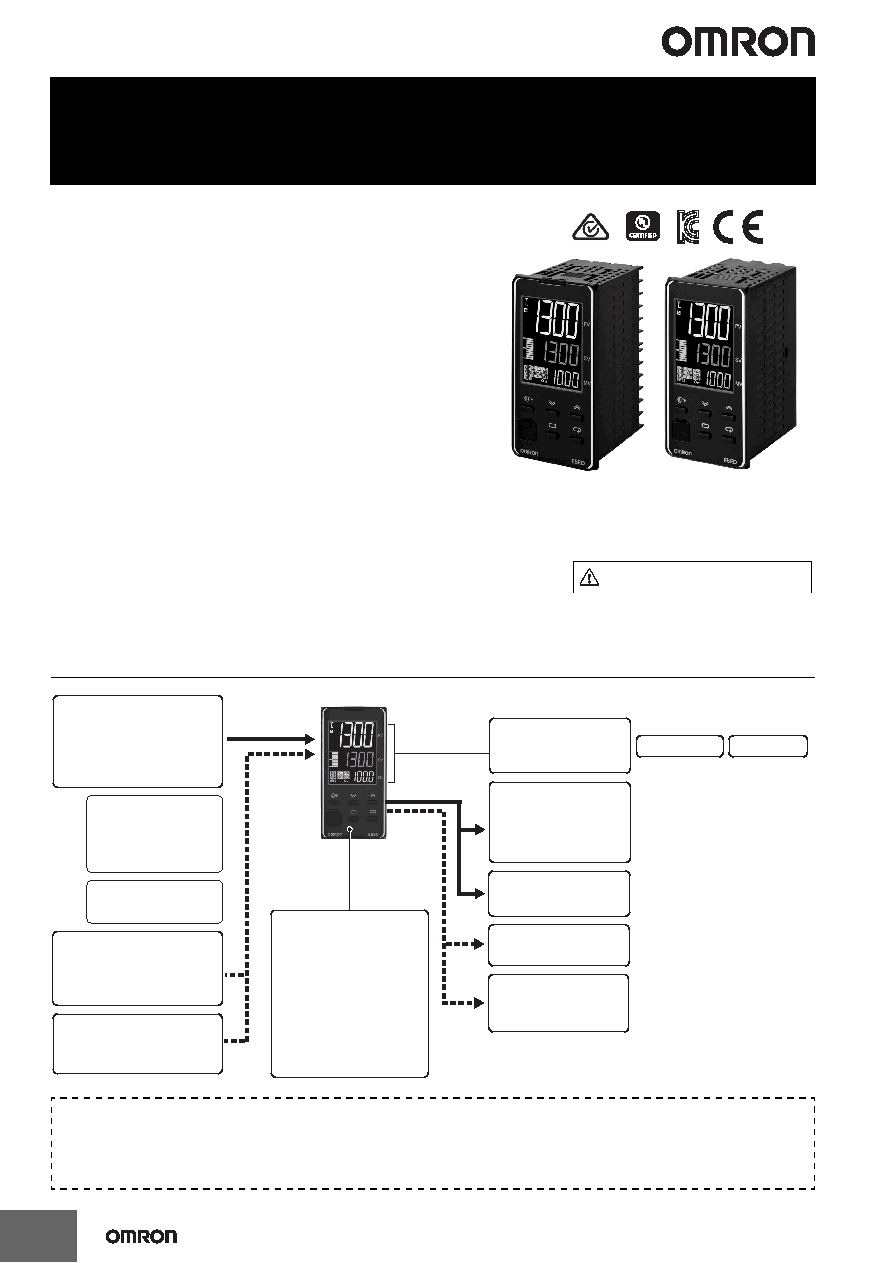

Digital Temperature Controller

E5ED/E5ED-B (48 × 96 mm)

Optimize Control by Detecting

Status Changes.

Easily Satisfy Both Productivity and

Quality.

Models with Push-In Plus technology

Available in the Lineup.

• Automatic optimization of control for changes in systems

(Adaptive Control).

• Functions specialized for packaging machines

(Temperature Sensors for Packaging Machines and Automatic

Filter Adjustment).

• Function specialized for water-cooled extruders (Water-

cooling Output Adjustment).

• Indication data (Power ON Time, Ambient Temperature, and

Output ON/OFF Count).

• Basic performance is same as the E5C standard models.

• Draw-out structure for easy maintenance. (Screw terminal

blocks only)

Main I/O Functions

48 × 96 mm

Screw Terminal Blocks

E5ED

Refer to Safety Precautions on 43.

For the most recent information on models that have been

certified for safety standards, refer to your OMRON website.

48 × 96 mm

Push-In Plus Terminal Blocks

E5ED-B

Three-level Display

PV, SV, and MV displayed

at the same time.

E5ED/E5ED-B

Auxiliary Outputs

• 4

Bar displays

Sensor Input

4-digit displays

Universal input

• Thermocouple

• Pt

• Analog current/voltage

Indication Accuracy

• Thermocouple input

±0.3%PV

• Pt input: ±0.2% of PV

• Analog input: ±0.2% of

Sampling Period

• 50 ms

Event Inputs

• None

• 2

• 4

Control Output 1

• Relay output

• Voltage output

(for driving SSR)

• Linear current output

Serial Communications

• None

• RS-485

Control Output 2

• Relay output

• Adaptive Control

• Automatic Filter

Adjustment

• Water-cooling Output

Adjustment

• Indication Data

Power ON Time

Ambient Temperature

Output ON/OFF Count

Transfer Output

• None

• 1

This datasheet is provided as a guideline for selecting products.

Be sure to refer to the following manuals for application precautions and other information required for operation before attempting

to use the product.

@D Digital Temperature Controllers User’s Manual (Cat. No. H224)

@D Digital Temperature Controllers Communications Manual (Cat. No. H225)
