AD8260
Rev. 0 | Page 26 of 32
EVALUATION BOARD
Analog Devices provides evaluation boards to customers as a
support service so that the circuit designer can become familiar
with the device in the most efficient way possible. The AD8260
evaluation board provides a fast, easy, and convenient means to
assess the performance of the AD8260 before going through the
inconvenience and expense of design and layout of a custom
board. The board is shipped fully assembled and tested and
provides basic functionality as shipped. Connectors enable the
user to connect standard types of lab test equipment without
having to wait for the rest of the design to be completed. Figure 67
shows a digital image of the top view and Figure 70 shows the
schematic.
PCB artwork for all conductor and silkscreen layers is shown in
Figure 71 through Figure 76. A description of a typical test setup is
explained in the Connecting the Evaluation Board section. The
artwork can be used as a guide in circuit layout and parts
placement. This is particularly useful for multiple function
circuits with many pins, requiring multiple passive components.
The board is shipped with the device fully enabled. Moving the
ENABLE jumper to its upper position on the board disables the
device. When the TX_EN jumper is in its upper position, the
high current driver is disabled.

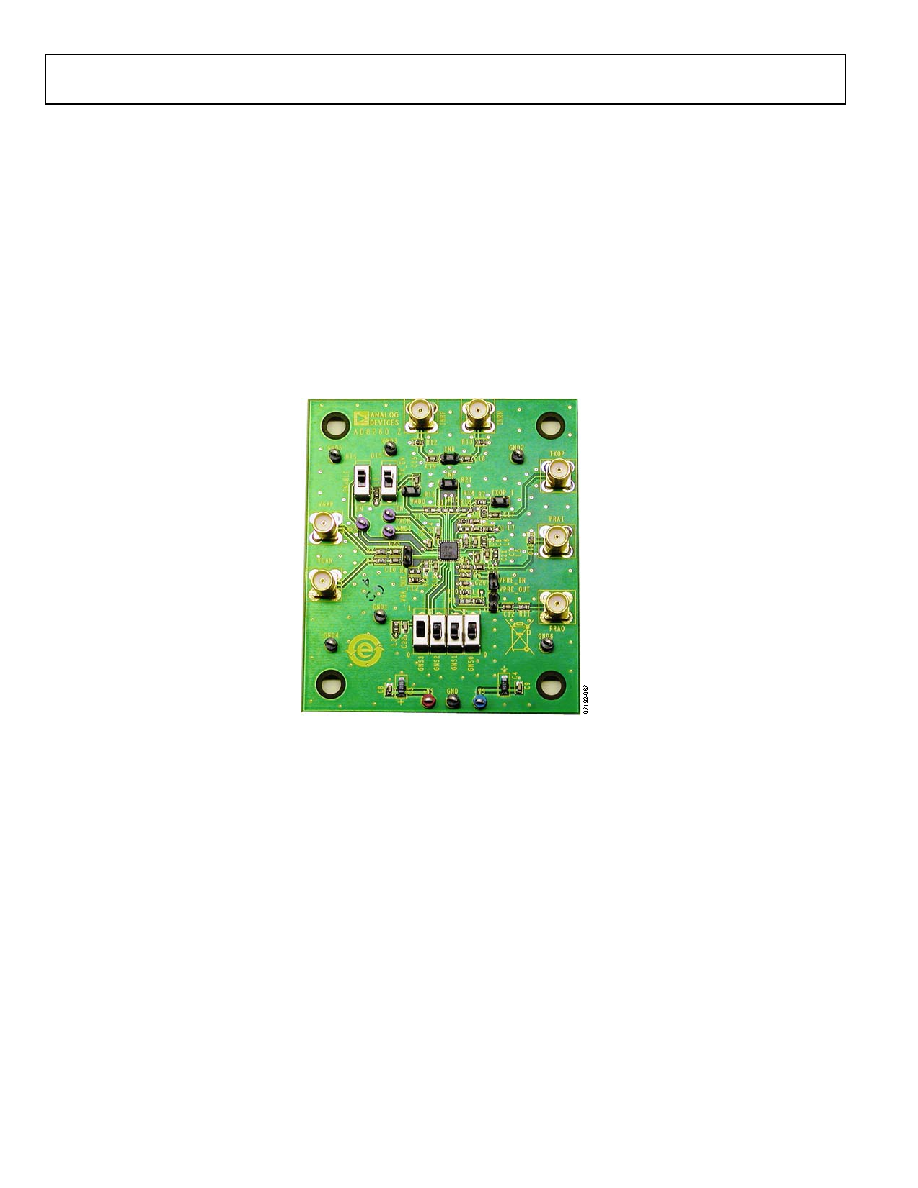

Figure 67. Top View of the AD8260-EVALZ
