ST6208C/ST6209C/ST6210C/ST6220C

72/104

10.5 CLOCK AND TIMING CHARACTERISTICS

Subject to general operating conditions for VDD, fOSC, and TA.

10.5.1 General Timings

10.5.2 External Clock Source

Notes:

1. Data based on typical application software.

2. Time measured between interrupt event and interrupt vector fetch.

∆t

c(INST) is the number of tCPU cycles needed to finish

the current instruction execution.

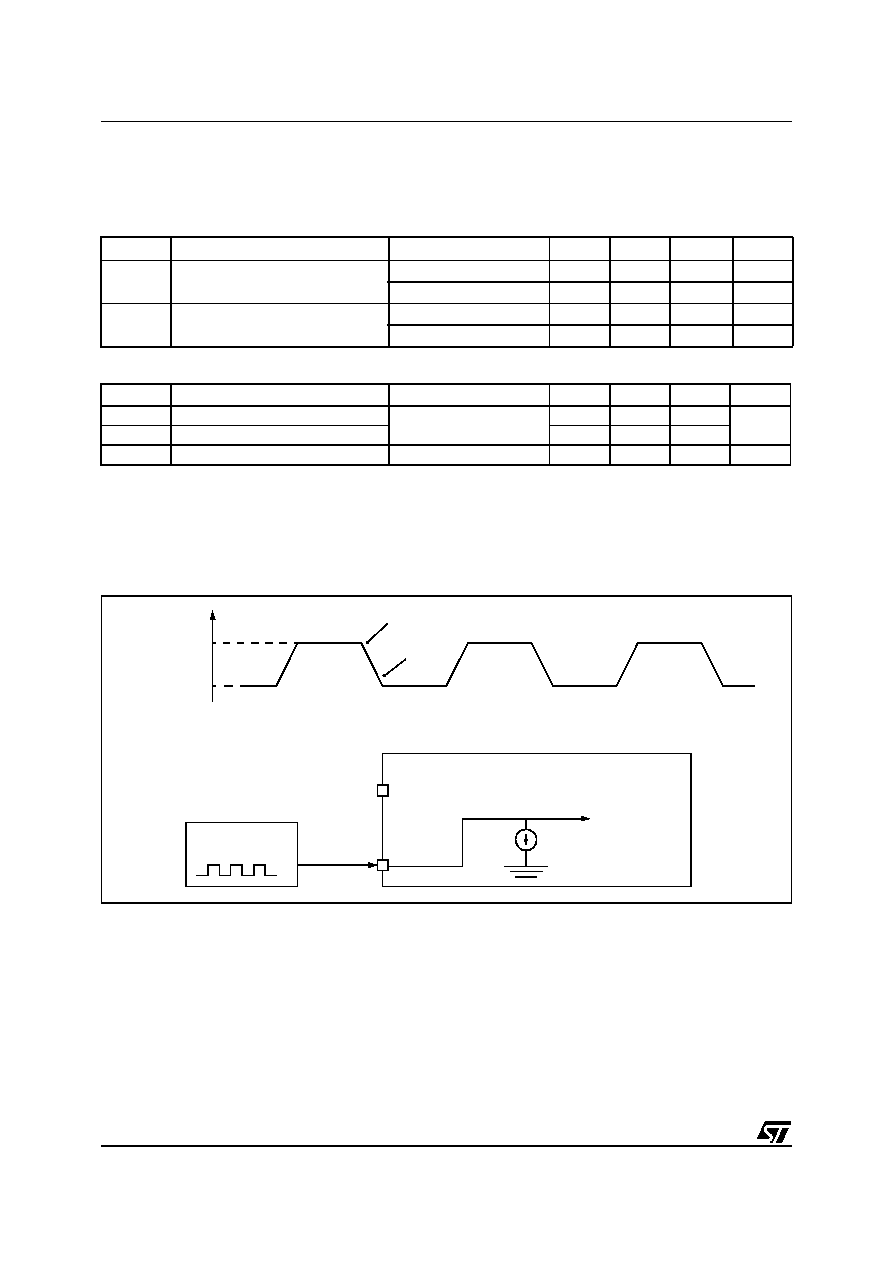

Figure 49. Typical Application with an External Clock Source

Symbol

Parameter

Conditions

Min

Typ 1)

Max

Unit

tc(INST)

Instruction cycle time

tCPU

fCPU=8 MHz

3.25

6.5

8.125

µs

tv(IT)

Interrupt reaction time 2)

tv(IT) = ∆tc(INST) + 6

611

tCPU

fCPU=8 MHz

9.75

17.875

µs

Symbol

Parameter

Conditions

Min

Typ

Max

Unit

VOSCINH

OSCIN input pin high level voltage

See Figure 49

0.7xVDD

VDD

VOSCINL

OSCIN input pin low level voltage

VSS

0.3xVDD

OSCx Input leakage current

VSS≤VIN≤VDD

± 2

µA

OSCIN

OSCOUT

fOSC

EXTERNAL

ST62XX

CLOCK SOURCE

VOSCINL

VOSCINH

90%

10%

Not connected
