August 2001

s

HIGH SPEED :

fMAX = 75 MHz (TYP.) at VCC = 6V

s

LOW POWER DISSIPATION:

ICC =4µA(MAX.) at TA=25°C

s

HIGH NOISE IMMUNITY:

VNIH = VNIL = 28 % VCC (MIN.)

s

SYMMETRICAL OUTPUT IMPEDANCE:

|IOH| = IOL = 4mA (MIN)

s

BALANCED PROPAGATION DELAYS:

tPLH ≅ tPHL

s

WIDE OPERATING VOLTAGE RANGE:

VCC (OPR) = 2V to 6V

s

PIN AND FUNCTION COMPATIBLE WITH

74 SERIES 292

DESCRIPTION

The

M74HC292

is

an

high

speed

CMOS

PROGRAMMABLE DIVIDER/TIMER fabricated

with silicon gate C2MOS technology.

This device is a programmable frequency divider

and has two clock inputs, either one may be used

for clock gating. (see the function table).

The M74HC292 can divide from 22 to 231. This

device feature an active-low clear input to initialize

the state of all flip-flops. To facilitate incoming

inspection, test points (TP1, TP2, TP3)

are

provided. All inputs are equipped with protection

circuits against static discharge and transient

excess voltage.

This device has Q output with "Totem Pole"

configuration and test point TP with "Open Drain"

output configuration.

M74HC292

PROGRAMMABLE DIVIDER/TIMER

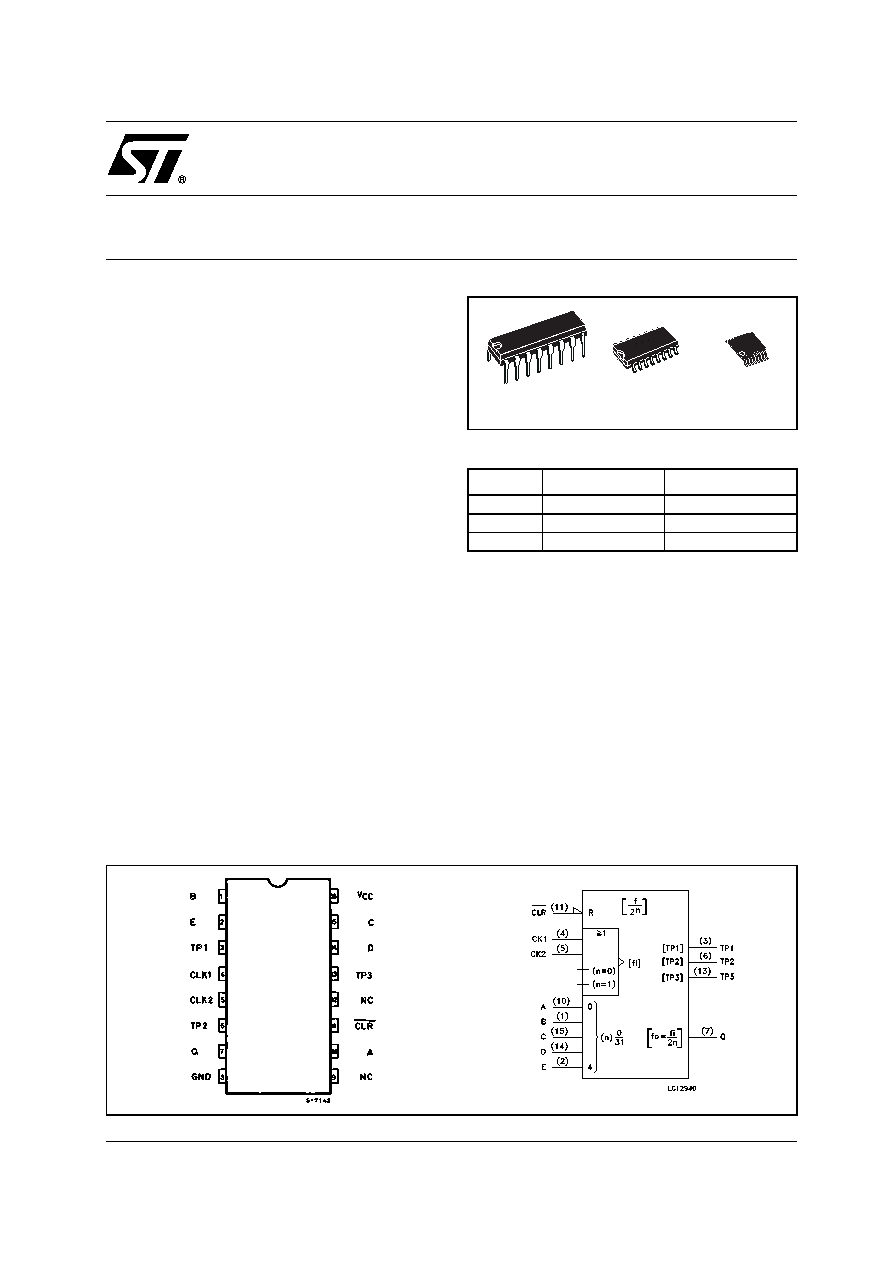

PIN CONNECTION AND IEC LOGIC SYMBOLS

ORDER CODES

PACKAGE

TUBE

T & R

DIP

M74HC292B1R

SOP

M74HC292M1R

M74HC292RM13TR

TSSOP

M74HC292TTR

TSSOP

DIP

SOP
