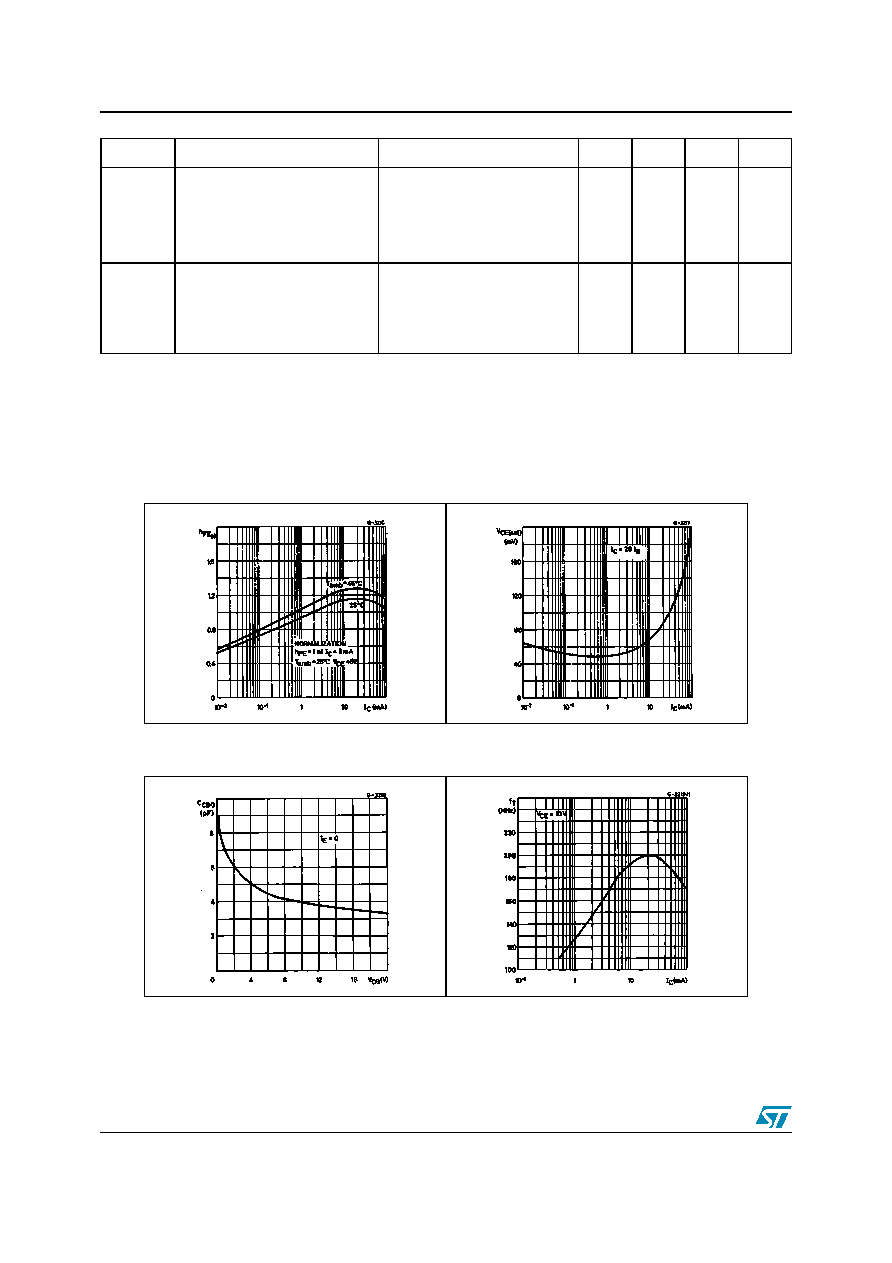

Electrical characteristics
BC107 - BC107B
4/9
(1) Pulsed: Pulse duration = 300 µs, duty cycle ≤ 1 %
2.1
Electrical characteristics (curves)
hre
Reverse voltage ratio
IC = 2mA
VCE = 5V
f = 1kHz
for BC107
for BC107B
2.2
2.7
10-4
10-4
hoe
Output admittance
IC = 2mA
VCE = 5V
f = 1kHz
for BC107
for BC107B
30
26
µS
µS
Figure 1.
DC normalized current gain
Figure 2.
Collector-emitter saturation
voltage
Figure 3.
Collector-base capacitance
Figure 4.
Transition frequency
Symbol
Parameter
Test Conditions
Min.
Typ.
Max.
Unit
