Dual Channel High-IP3

100MHz – 6GHz Active Mixer

Preliminary Technical Data

ADL5802

REV. PrA

Information furnished by Analog Devices is believed to be accurate and reliable.

However, no responsibility is assumed by Analog Devices for its use, nor for any

infringements of patents or other rights of third parties that may result from its use.

Specifications subject to change without notice. No license is granted by implication

or otherwise under any patent or patent rights of Analog Devices. Trademarks and

registered trademarks are the property of their respective companies.

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.

Tel: 781.329.4700

www.analog.com

Fax: 781.326.8703

© 2008 Analog Devices, Inc. All rights reserved.

FEATURES

Dual Channel Up/Down Converter

Power Conversion Gain of 1.5dB

Wideband RF, LO, and IF ports

SSB Noise Figure of 11dB

SSB NF with +10dBm blocker of 20dB

Input IP3 of 27dBm

Typical LO Drive of 0 dBm

-40dBm LO Leakage at RF

Low Current Operation: 5 V @ 200 mA

Adjustable Bias for Low Power Operation

Exposed Paddle 4 x 4 mm, 24 Lead LFCSP Package

APPLICATIONS

Cellular Base Station Receivers

Main and Diversity Receiver Designs

Radio Link Downconverters

GENERAL DESCRIPTION

The ADL5802 utilizes high linearity doubly balanced active

mixer cores with integrated LO buffer amplifiers to provide

high dynamic range frequency conversion from 100MHz to

6GHz. The mixers benefit from a proprietary linearization

architecture which provides enhanced IP3 performance when

subject to high input levels. A bias adjust feature allows the

input linearity, SSB Noise Figure, and DC current to be

optimized using a single control pin. The high input linearity

allows the device to be used in demanding cellular applications

where in-band blocking signals may otherwise result in

degradation in dynamic performance. The balanced active

mixer arrangement provides superb LO to RF and LO to IF

leakage, typically better than -40dBm. The IF outputs are

internally terminated to a 200-Ω source impedance and provide

a typical voltage conversion gain of 7.5 dB when loaded into a

200-Ω load.

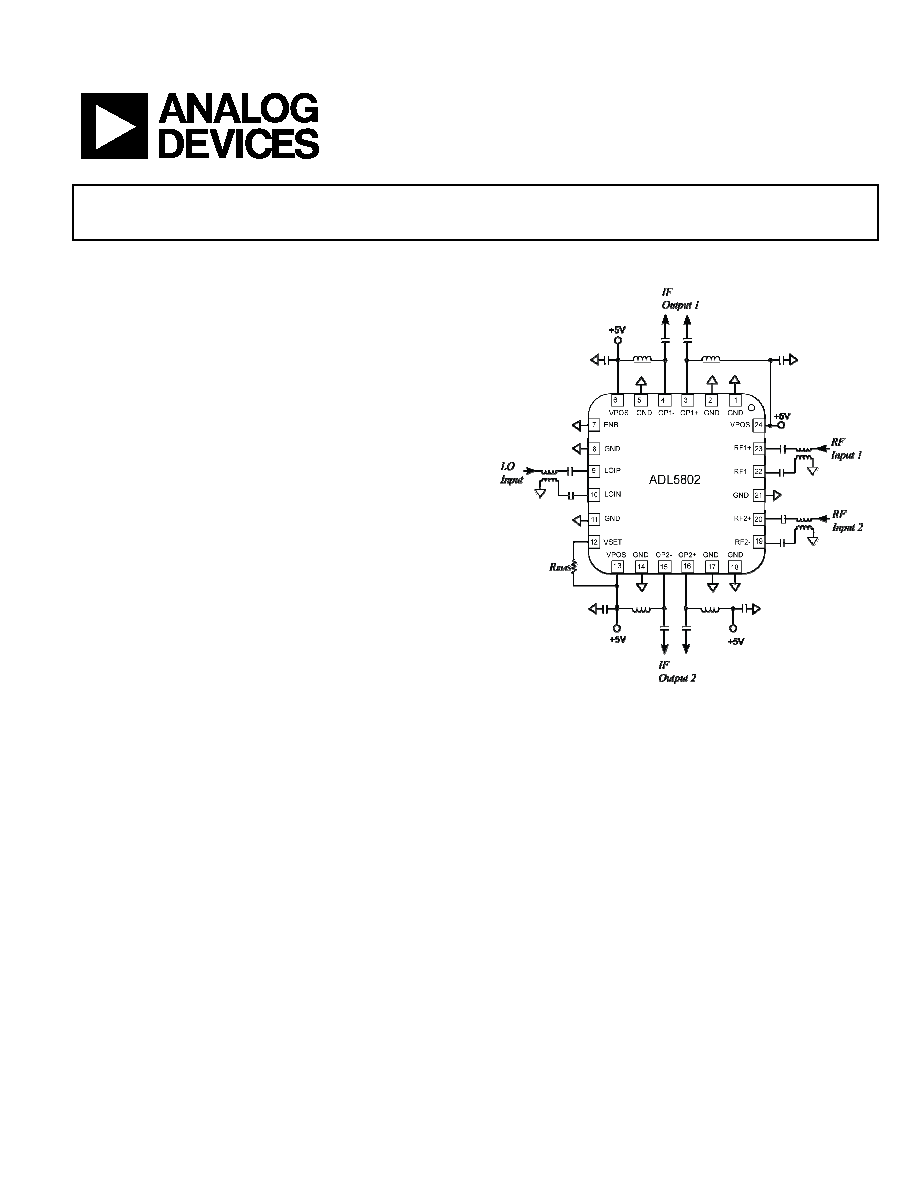

Figure 1. Functional Block Diagram

The ADL5802 is fabricated using a SiGe high performance IC

process. The device is available in a compact 4mm x 4mm 24-

lead LFCSP package and operates over a −40°C to +85°C

temperature range. An evaluation board is also available.
