Section 7 DMA Controller (DMAC)
Rev.1.00 Jun. 07, 2006 Page 374 of 1102
REJ09B0294-0100
(3) Block Transfer Mode
In block transfer mode, the bus is released every time a 1-block size of transfers at a single transfer
request is completed.
In figure 7.28, the
TEND signal output is enabled and data is transferred in words from the
external 16-bit 2-state access space to the external 16-bit 2-state access space in block transfer
mode.
DMA read
cycle
DMA read
cycle
DMA write
cycle
Address bus
DMA write
cycle
DMA read
cycle
DMA read
cycle
DMA write
cycle
DMA write
cycle
B
φ
RD
LHWR, LLWR
TEND
Bus
released
Bus
released
Bus
released
Last block transfer cycle
Block transfer

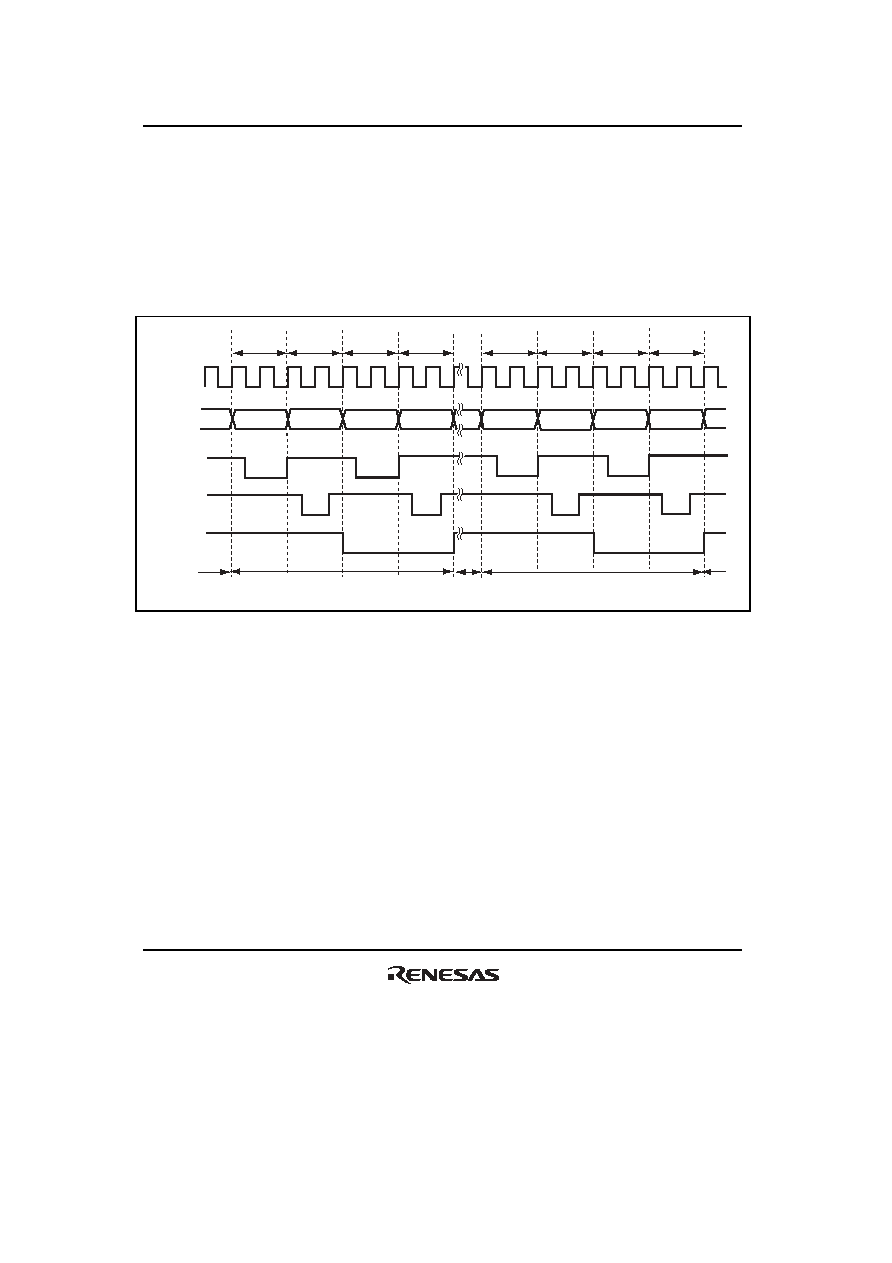

Figure 7.28 Example of Transfer in Block Transfer Mode
