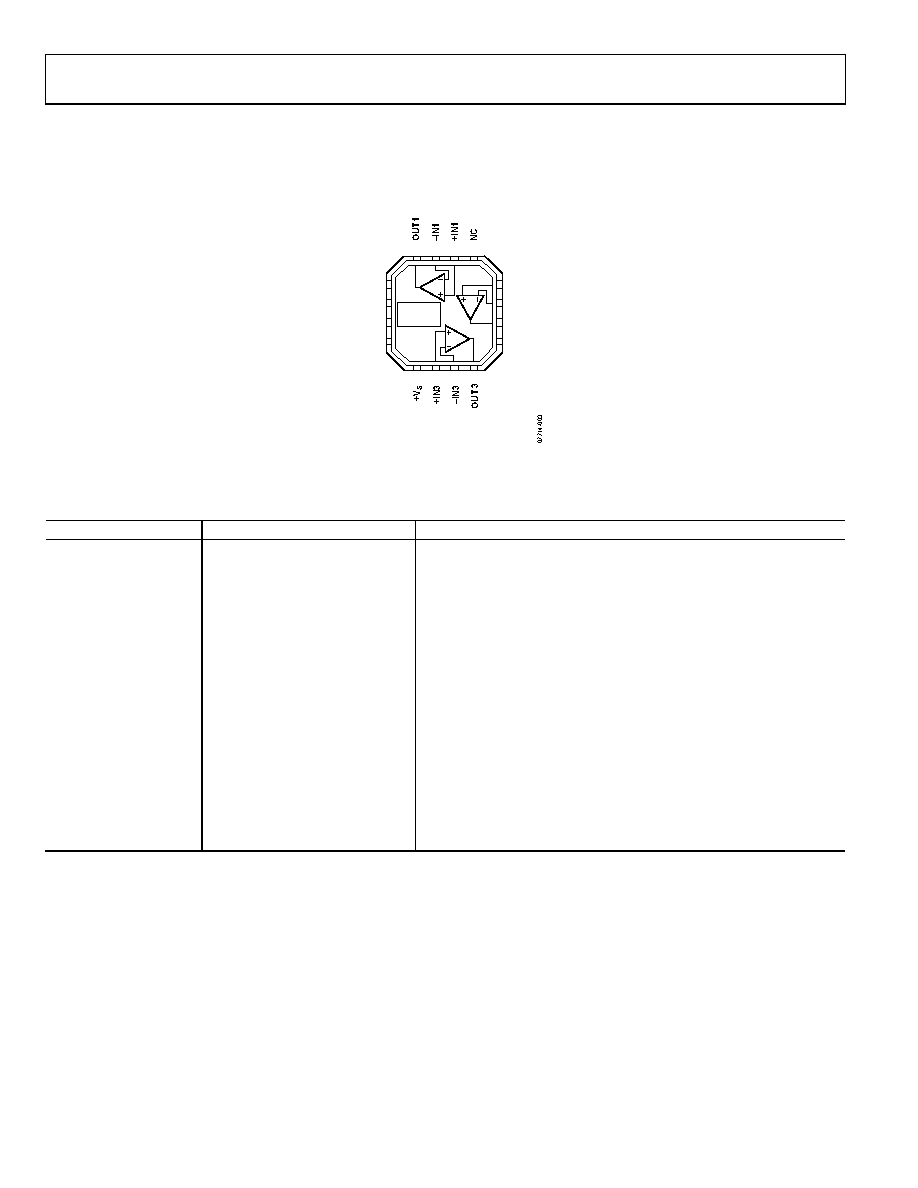

6 / 16 page ![]() ADA4858-3 Rev. 0 | Page 6 of 16 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS NOTES 1. NC = NO CONNECT. 2. EXPOSED PAD, CONNECT TO GROUND. ADA4858-3 TOP VIEW (Not to Scale) 1 2 C1_a C1_b CPO +VS 3 4 11 –IN2 12 +IN2 CHARGE PUMP 10 OUT2 9 56 7 8 16 15 14 13 PD Figure 3. Pin Configuration. Table 4. Pin Function Descriptions Pin No. Mnemonic Description 1 +VS Positive Supply for Charge Pump. 2 C1_a Charge Pump Capacitor Side a. 3 C1_b Charge Pump Capacitor Side b. 4 CPO Charge Pump Output. 5 +VS Positive Supply. 6 +IN3 Noninverting Input 3. 7 −IN3 Inverting Input 3. 8 OUT3 Output 3. 9 PD Power Down. 10 OUT2 Output 2. 11 −IN2 Inverting Input 2. 12 +IN2 Noninverting Input 2. 13 NC No Connect. 14 +IN1 Noninverting Input 1. 15 −IN1 Inverting Input 1. 16 OUT1 Output 1. 17 (EPAD) Exposed Pad (EPAD) The exposed pad must be connected to ground. |
|
|
