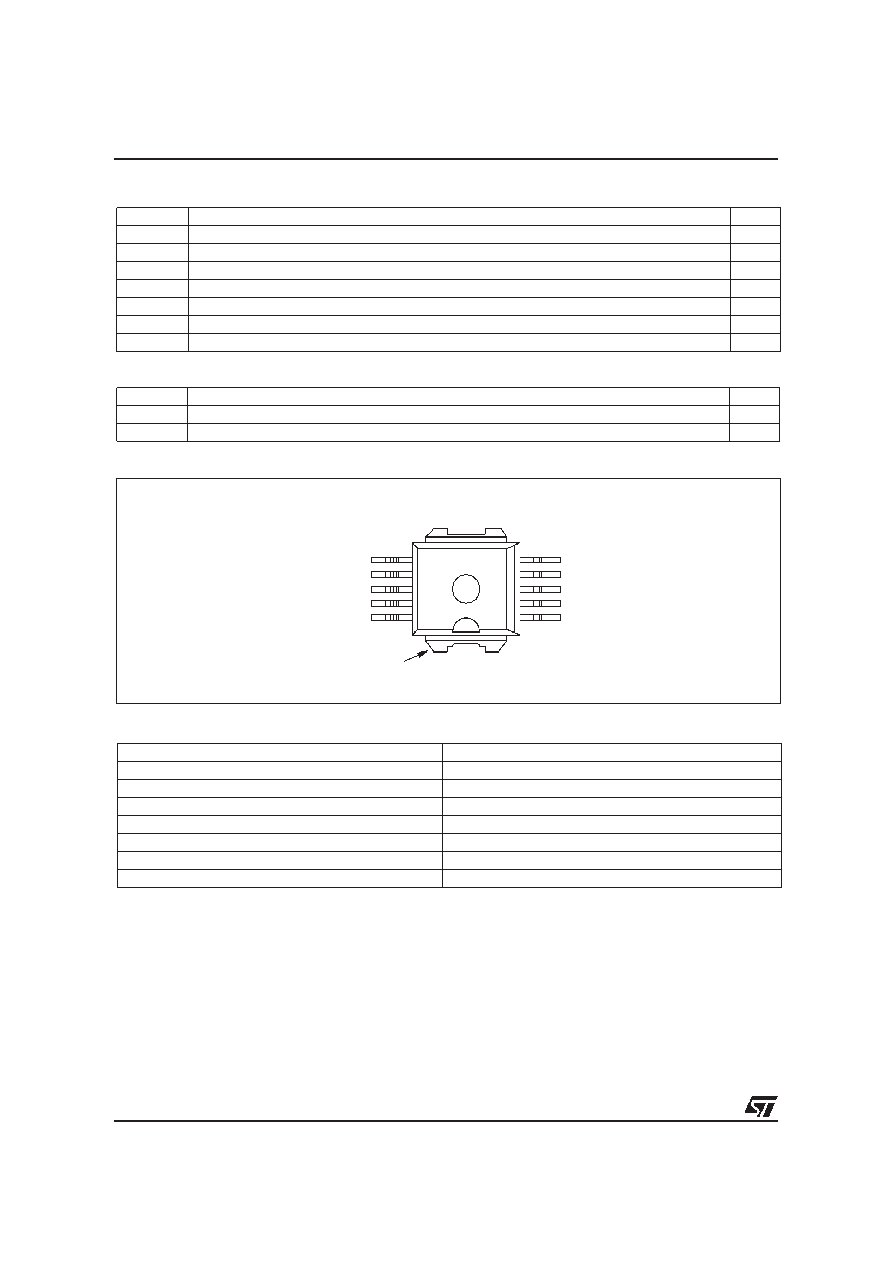

background image
2/7
VB027SP
1
ABSOLUTE MAXIMUM RATING
THERMAL DATA
CONNECTION DIAGRAM (TOP VIEW)
Symbol
Parameter
Value
Unit
HVc
Collector voltage
Internally limited
V
IC
Collector current
Internally limited
A
Vd
Driving stage supply voltage
7
V
Id
Driving circuitry supply current
200
mA
VIN
Input voltage
10
V
Tj
Junction operating temperature
-40 to 150
°C
Tstg
Storage temperature
-55 to 150
°C
Symbol
Parameter
Value
Unit
Rthj-case
Thermal resistance junction-case
(MAX)
1.12
°C/W
Rthj-amb
Thermal resistance junction-ambient
(MAX)
62.5
°C/W
PIN FUNCTION
(*) Pin 1
÷5=Power GND, Pin 6=signal GND. Pin 6 must be connected to pins 1÷5 externally.
No
Name
Function
1
÷5
GND
Emitter power ground
6(*)
GND
Control ground
7Vd
Driving stage supply voltage
8
N.C.
9
INPUT
Logic input channel
10
DIAG
Diagnostic output signal
TAB
HVC
Primary coil output signal
1
2
3
4
5
6
7
8
9
10
11
GND
GND
GND
GND
GND
GND
Vd
N.C.
INPUT
DIAG
HVC
