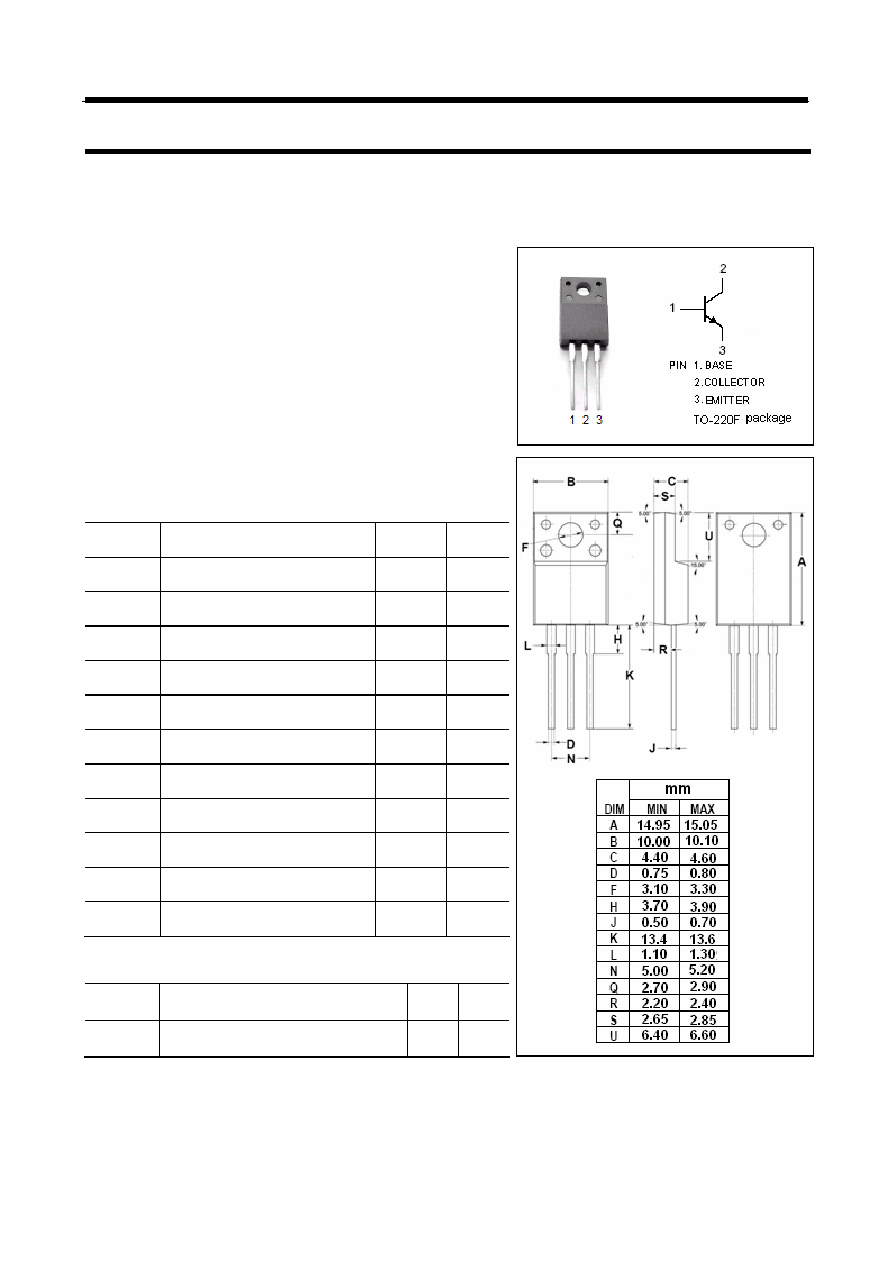

INCHANGE Semiconductor

isc Product Specification

isc Silicon NPN Power Transistor

SGSF313PI

DESCRIPTION

·Collector-Emitter Sustaining Voltage-

:

VCEO(SUS)= 450V(Min)

·High Switching Speed

·Low Saturation Voltage

APPLICATIONS

·Designed to be used as switch in high efficency off-line

(220V mains)

switching power supplies for consumer

applications like sets VCR’s and monitors.

ABSOLUTE MAXIMUM RATINGS(Ta=25℃)

SYMBOL

PARAMETER

VALUE

UNIT

VCEX

Collector-Emitter Voltage

(VBE= -2.5V)

1000

V

VCES

Collector-Emitter Voltage

(VBE=0)

1000

V

VCEO

Collector-Emitter Voltage

450

V

VEBO

Emitter-Base Voltage

10

V

IC

Collector Current-Continuous

7

A

ICM

Collector Current-Peak

10

A

IB

B

Base Current

3

A

IBM

Base Current-Peak

6

A

PD

Total Power Dissipation

@TC=25℃

35

W

Tj

Junction Temperature

150

℃

Tstg

Storage Temperature

-65~150

℃

THERMAL CHARACTERISTICS

SYMBOL

PARAMETER

MAX

UNIT

Rth j-c

Thermal Rresistance,Junction to Case

3.57

℃/W

isc Website：www.iscsemi.cn
