February 12, 2007

Email: ddisales@datatronics.com

499 King’s Road, Hong KongTel: (852) 2562 3858, (852) 2564 8477 Fax: (852) 2565 7214, (852) 2563 1290

All specifications are subject to change without notice.

ELECTRICAL SPECIFICATIONS AT 25ºC

Part No.

Inductance

(

µH) ± 30%

DCR

(

Ω) Max.

I rated

(A) Max.

DR358-4-262

2.6

0.018

2.60

DR358-4-302

3.0

0.024

2.40

DR358-4-422

4.2

0.031

2.20

DR358-4-532

5.3

0.038

1.90

DR358-4-622

6.2

0.045

1.80

DR358-4-822

8.2

0.053

1.60

DR358-4-103

10.0

0.065

1.30

DR358-4-123

12.0

0.076

1.20

DR358-4-153

15.0

0.103

1.10

DR358-4-183

18.0

0.110

1.00

DR358-4-223

22.0

0.122

0.90

DR358-4-273

27.0

0.175

0.85

DR358-4-333

33.0

0.189

0.75

DR358-4-393

39.0

0.212

0.70

DR358-4-473

47.0

0.260

0.62

DR358-4-563

56.0

0.305

0.58

DR358-4-683

68.0

0.355

0.52

DR358-4-823

82.0

0.463

0.46

DR358-4-104

100.0

0.520

0.42

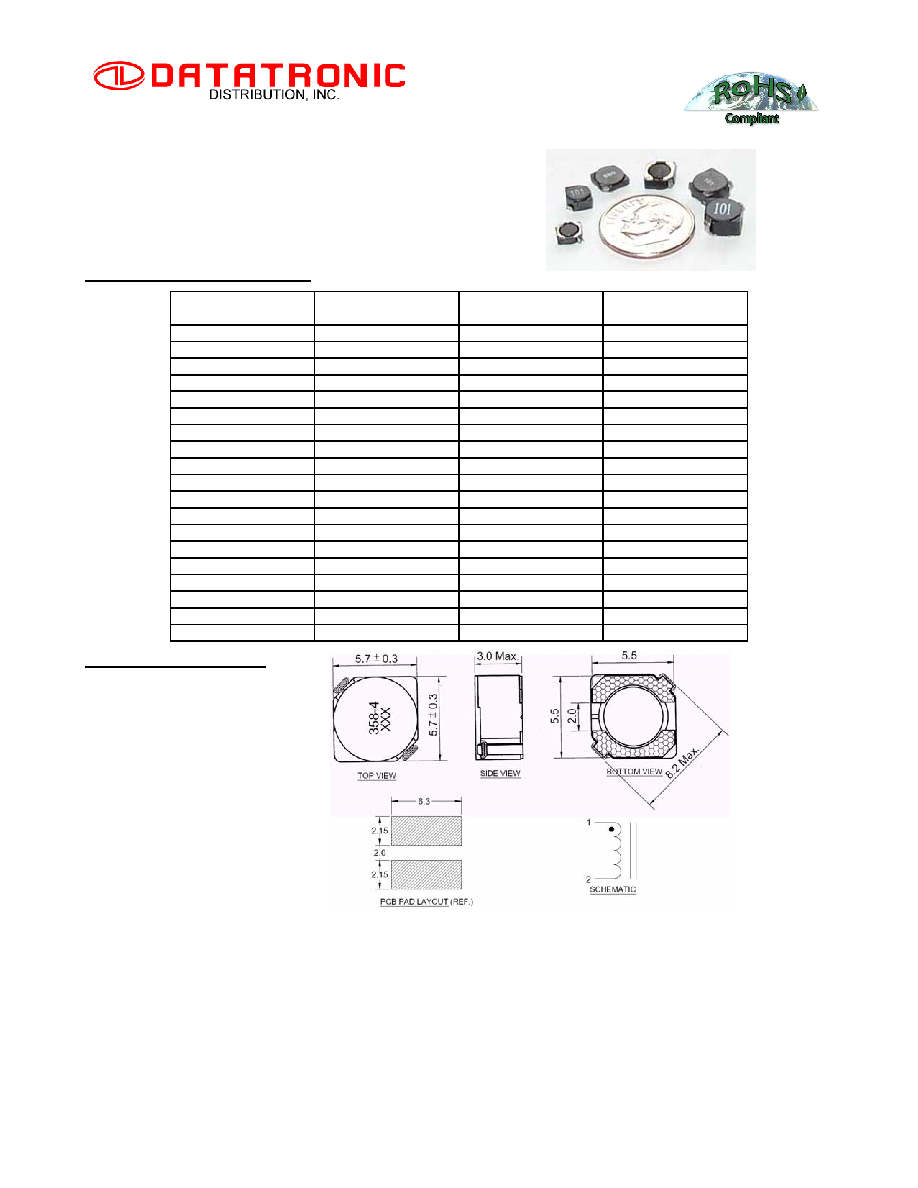

MECHANICAL OUTLINES

Notes:

1.

All dimensions are shown in millimeter “mm”

2.

General tolerance

±0.2mm, unless other specified

3.

Inductance Test: 100kHz, 0.1Vrms

4.

5.

6.

Tape and reel quantity, 2000 pcs/reel

7.

For non-RoHS parts replace DR prefix with 42- (e.g. DR358-4 becomes 42-358-4)

8.

Terminal finish is compliant to RoHS requirements. Solder in accordance with J-STD-020C.

SHIELDED SMD INDUCTOR DR358-4 SERIES

Features

Low Profile Surface Mount Design

Flat Top for Pick and Place

Inductance Range from 2.6µH to 100.0µH

Operating Temp. -20°C to +80°C

Tinned Leads with Leaded Solder is Available (note 7)
