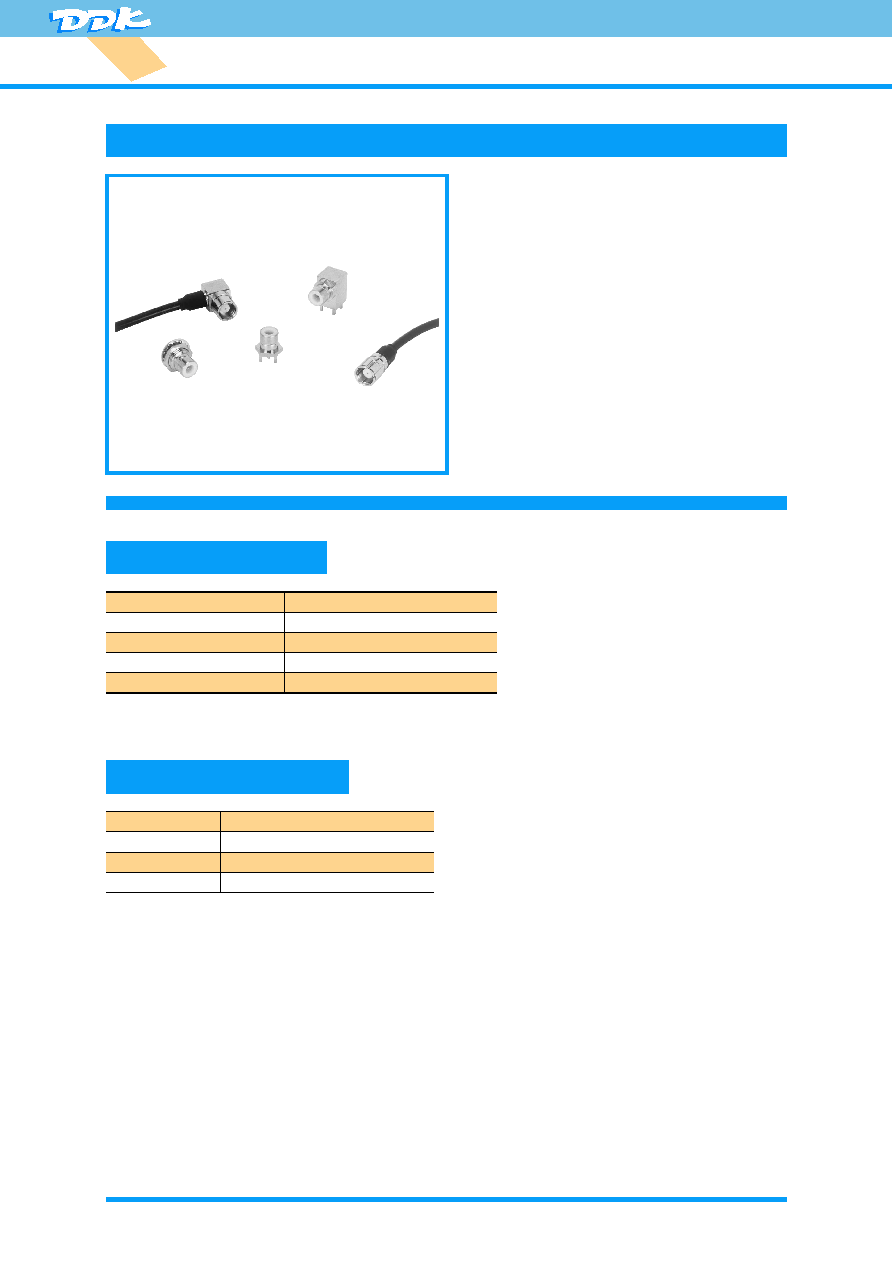

27CP Series

●

27CP series are connectors for 75 Ω group of

27DP series (50Ω group).

●

Typical small size 75 Ω connectors useful for

interface within equipment.

●

Provides easy push-pull coupling mechanism.

●

27DP series is not intermateable with.

●

Useful for interface of test instrument, broad

-

casting equipment, CATV and HDTV, atc.

Specifications depends on each connector although these are basic specifications.

Please ask us for the cable assemblies to assure its performance.

75Ω SMB Type Connectors

SPECIFICATION

Characteristic Impedance

75Ω

Dielectric withstanding voltage

1000V AC (rms) for 1 minute

Insulation resistance

1000MΩmin. at 500V DC

Contact resistance

6mΩ max.

VSWR

1.5max. at DC～500MHz

MATERIAL/FINISH

Shell (Body)

Copper alloy/Gold or Nickel plating

Contact (male)

Copper alloy/Gold plating

Contact (female)

Copper alloy/Gold plating

Insulators

PTFE
