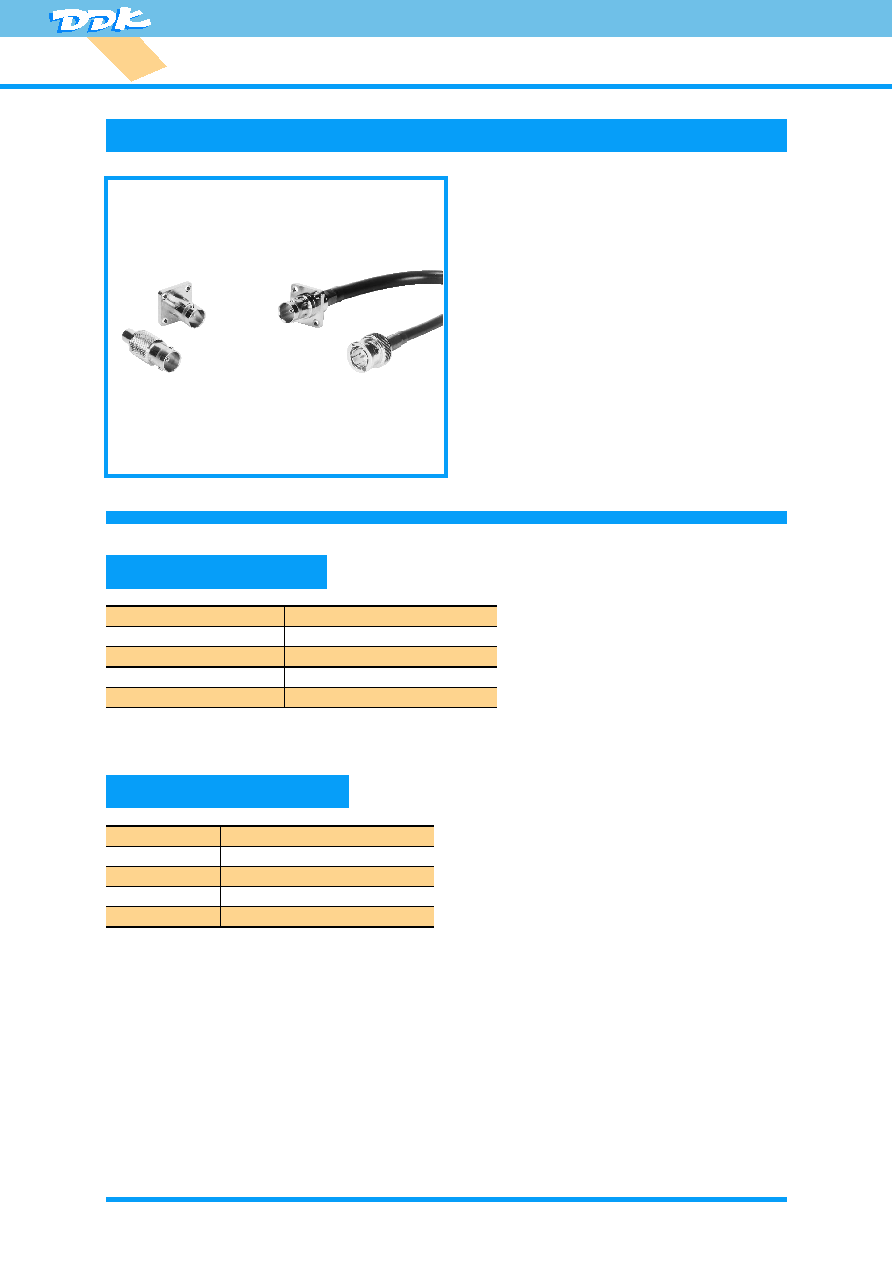

BNC75 Series

●

BNC75 series are connectors for 75 Ω group of

BNC series (50Ω group).

●

Intermateable with BNC series.

●

Easy interface is established between test

instruments, broadcasting eqipment, CATV and

HDTV by bayonet lock mechanism.

Specifications depends on each connector although these are basic specifications.

Please ask us for the cable assemblies to assure its performance.

75Ω BNC Type Connectors

SPECIFICATION

Characteristic Impedance

75Ω

Dielectric withstanding voltage

1500V AC (rms) for 1 minute

Insulation resistance

1000MΩmin. at 500V DC

Contact resistance

3mΩ max.

VSWR

1.3max. at DC～1GHz

MATERIAL/FINISH

Shell (Body)

Copper alloy/Nickel or Silver plating

Contact (male)

Copper alloy/Silver or Gold plating

Contact (female)

Copper alloy/Silver or Gold plating

Insulators

PTFE

Gaskets

Silicone rubber

1
