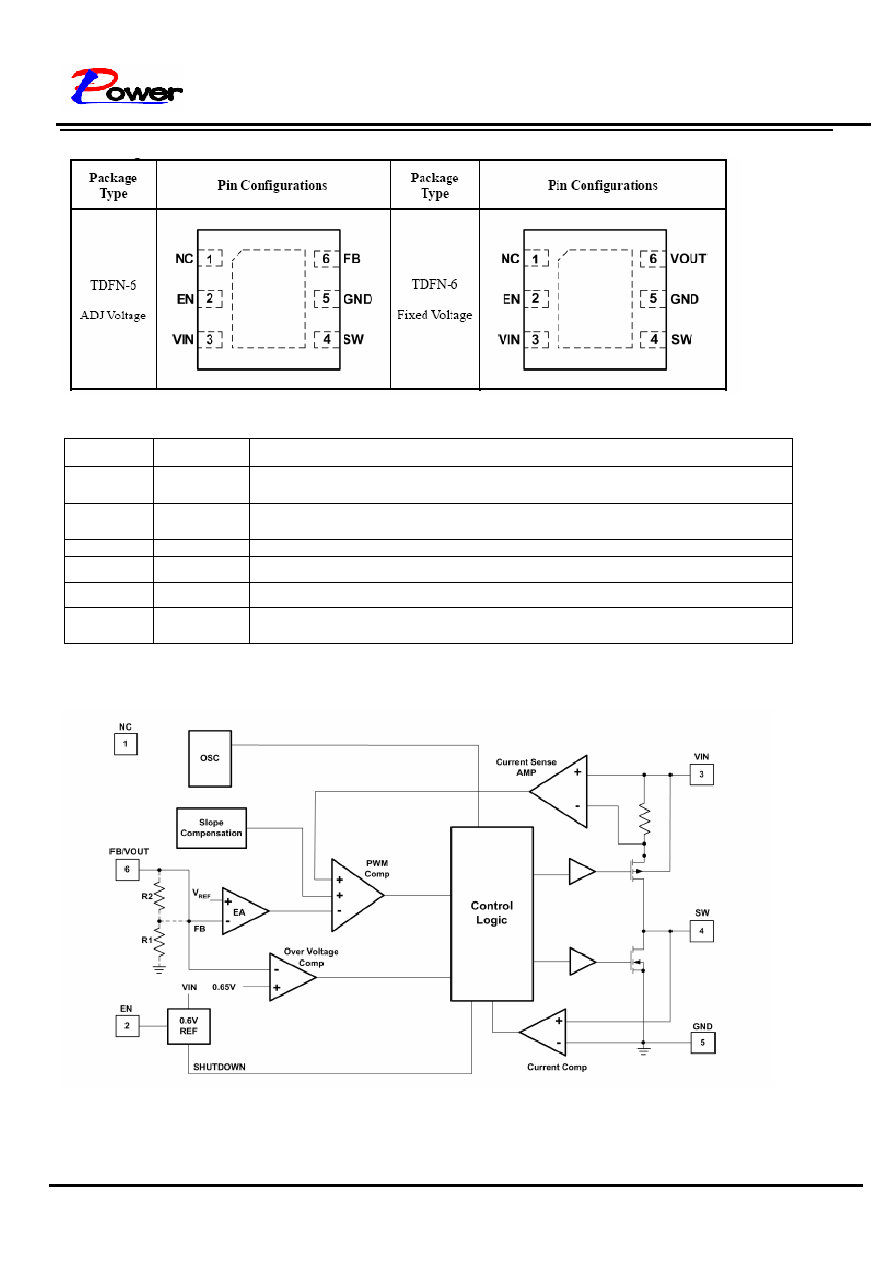

2 / 7 page ![]() Preliminary Datasheet LP6301 LP6301 – Ver. 1.0 Datasheet Sep.-2007 Functional Pin Description Pi n Desc ript io n Pin NO PIN DESCRIPTION 1 NC No Connect. 2 EN Enable Control Input. Drive EN1 above 1.5V to turn on the Channel. Drive EN below 0.3V to turn it off (shutdown current < 0.1µA). 3 Vin Supply Input. 4 SW Switch Mode Connection to Inductor. This pin connects to the drains of the internal main and synchronous power MOSFET switches. 5 GND1 Ground 1. 6 FB Feedback Input. Connect FB to the center point of the external resistor divider. Normal voltage for this pin is 0.6V. Function Block Diagram |
|
|
