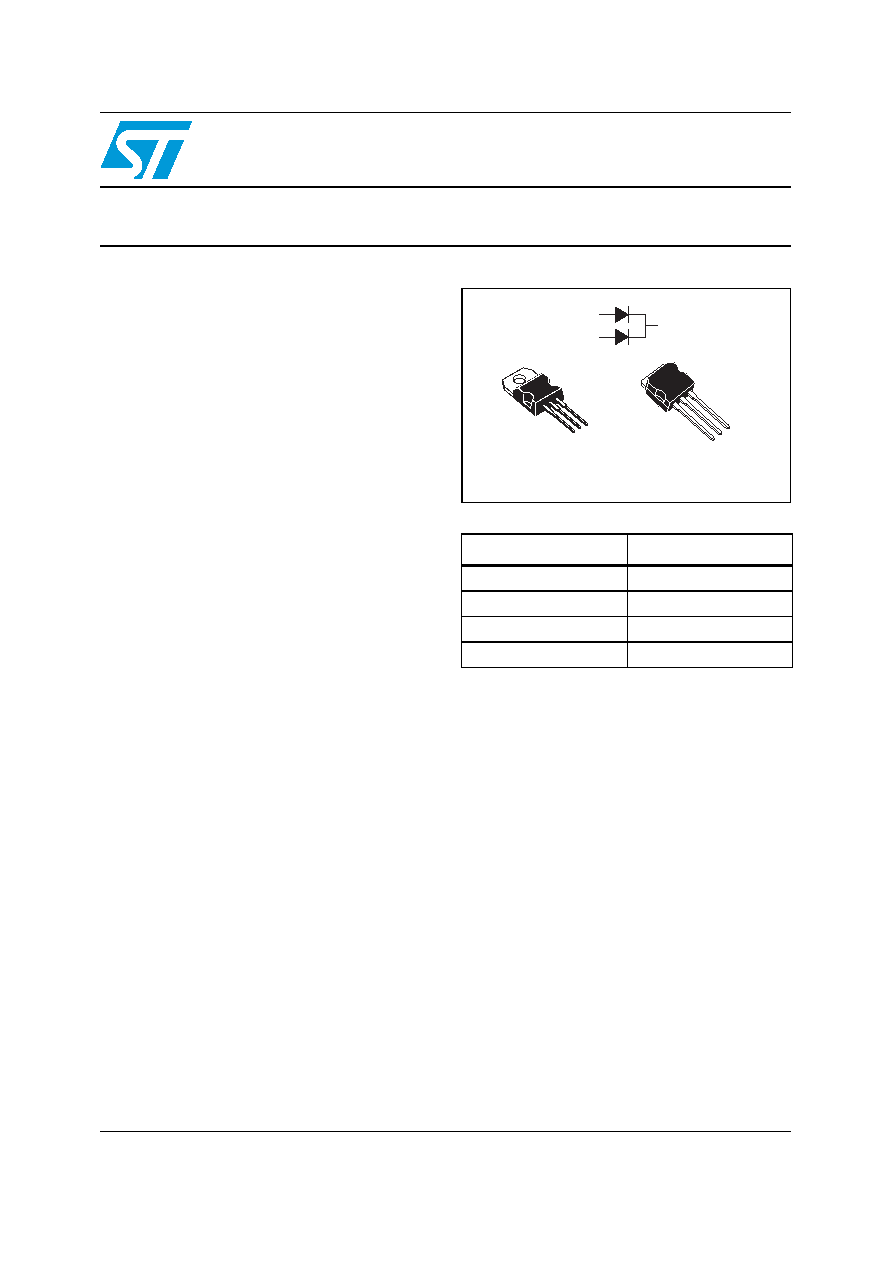

 1 / 8 page
background image
November 2009
Doc ID 16603 Rev 1
1/8
8
STPS50U100C
Ultralow forward voltage power Schottky rectifier
Features
■ Ultralow forward voltage drop
■ High current capability
■ High frequency operation
■ ECOPACK®2 compliant components
Description
The STPS50U100C is a dual power Schottky
diode rectifier, suited for high frequency switch
mode power supply.
Featuring an ultralow forward voltage drop, this
device, packaged in TO-220AB and I²PAK, is
intended to be used in notebook, game station
and desktop adaptors as well as server SMPS. It
has been especially designed to help power
supply manufacturers meet the recently
introduced worldwide efficiency standards.
Table 1.
Device summary
Symbol
Value
IF(AV)
2 x 25 A
VRRM
100 V
VF(TYP) @ 25 A @ 125 °C
0.64 V
Tj (max)
150 °C
K
A1
A2
A1
K
A2
A1
K
A2
TO-220AB
STPS50U100CT
I2PAK
STPS50U100CR
www.st.com
