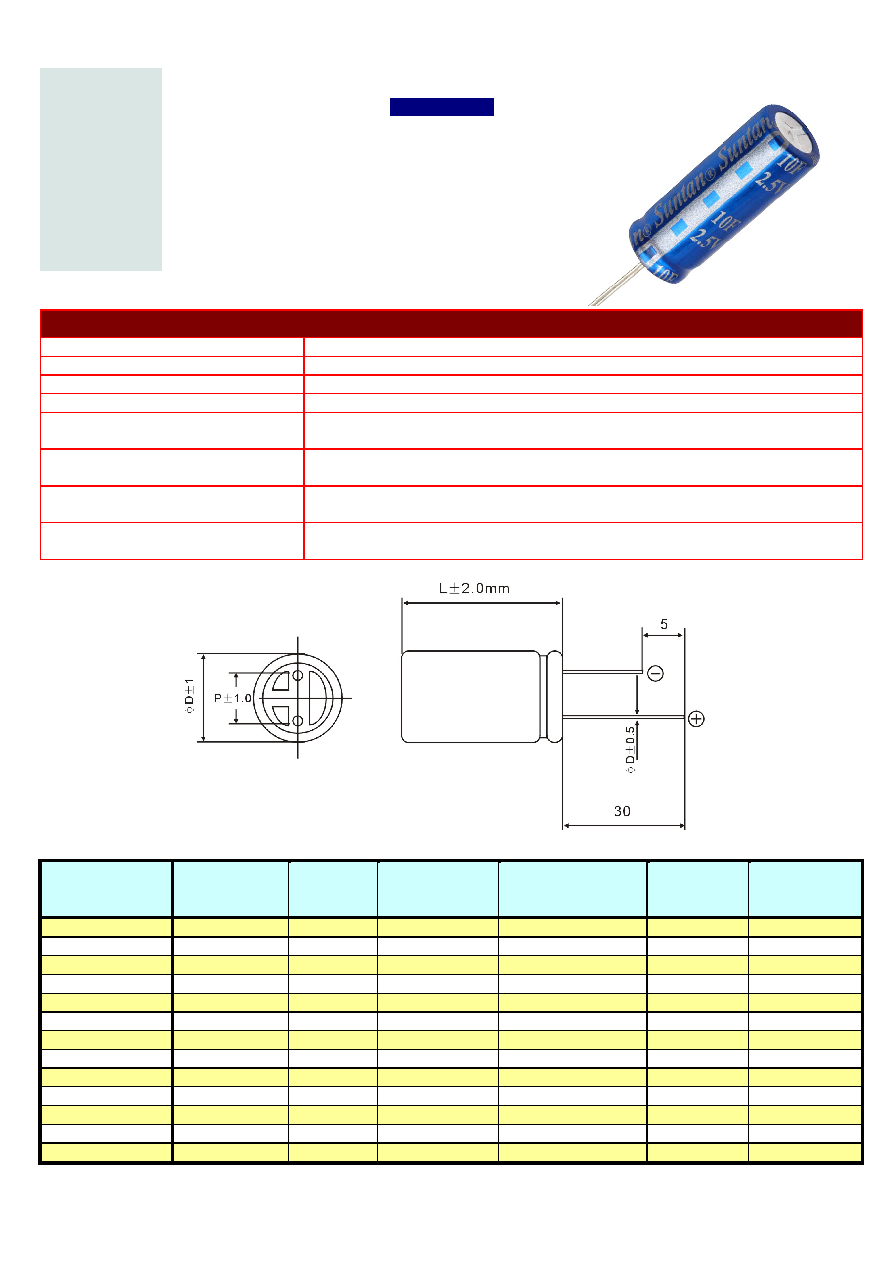

ELECTRIC DOUBLE LAYER CAPACITOR – GOLD CAPACITOR

TS12S-R

F E A T U R E S

Radial & Snap-in type

large capacity, VENT case.

SPECIFICA

T

IONS

Operating temperature

-40 to +70℃

Rated voltage

2.5VDC

Surge voltage

3.0VDC

Capacitance tolerance

-20% to +80%

Temperature Characteristics

+70℃│ΔC/C│≤30%, ESR≤100% of specified value at 25℃

-40℃

│ΔC/C│≤50%, ESR≤400% time of specified value at 25℃

High Temperature load

After 1000 hours, +70℃±2, nominal voltage, │ΔC/C│≤30% of the initial measured value,

ESR≤400% of the initial specified value

High Temperature without load

After 1000 hours, +70℃±2, nominal voltage, │ΔC/C│≤30% of the initial measured value,

ESR≤200% of the initial specified value

Humidity Resistance

After +40℃±2，90~95%RH，240 hour│ΔC/C│≤30% of the initial measured value,

IL≤200% of the initial specified value,ESR≤4 time of the initial specified value

Part Number

Rated

Capacitance

Operating

Voltage

ESR 1KHz

(MΩ)

Size

(ØD±1mm

x L±2.0mm)

P ±1.0(mm)

Ø

d (mm)

TS12S-R-2R5-704

0.7F

2.5V

600

Ø

8x13

3.5

0.6

TS12S-R-2R5-105

1.0F

2.5V

300

Ø

8x13

3.5

0.6

TS12S-R-2R5-205

2.0F

2.5V

120

Ø10x20

5.0

0.6

TS12S-R-2R5-305

3.0F

2.5V

90

Ø8

x20

3.5

0.6

TS12S-R-2R5-335

3.3F

2.5V

80

Ø

10x20

5.0

0.6

TS12S-R-2R5-475

4.7F

2.5V

60

Ø

13x21

5.0

0.6

TS12S-R-2R5-805

8.0F

2.5V

50

Ø

13x21

5.0

0.6

TS12S-R-2R5-106

10F

2.5V

35

Ø

13x34

5.0

0.8

TS12S-R-2R5-206

20F

2.5V

25

Ø

16x34

7.5

0.8

TS12S-R-2R5 306

30F

2.5V

20

Ø

16x34

7.5

0.8

TS12S-R-2R5-506

50F

2.5V

20

Ø

18x34

7.5

0.8

TS12S-R-2R5-906

90F

2.5V

10

Ø

22x54

10

1.0

TS12S-R-2R5-127

120F

2.5V

10

Ø

25x54

10

1.0

90F & 120F is Snap-in type, other is Radial type.

Note: Specification are subject to change without notice. For more detail and update, please visit our website.
