YEV09T06 6A DC-DC POL Converter

Data Sheet

ZD-02094 Rev 1.1, 25-Mar-09

www.power-one.com

Page 11 of 12

10. Mechanical Drawings

All Dimensions are in inches

Tolerances:

X.XX:

0.02”

X.XXX:

0.01”

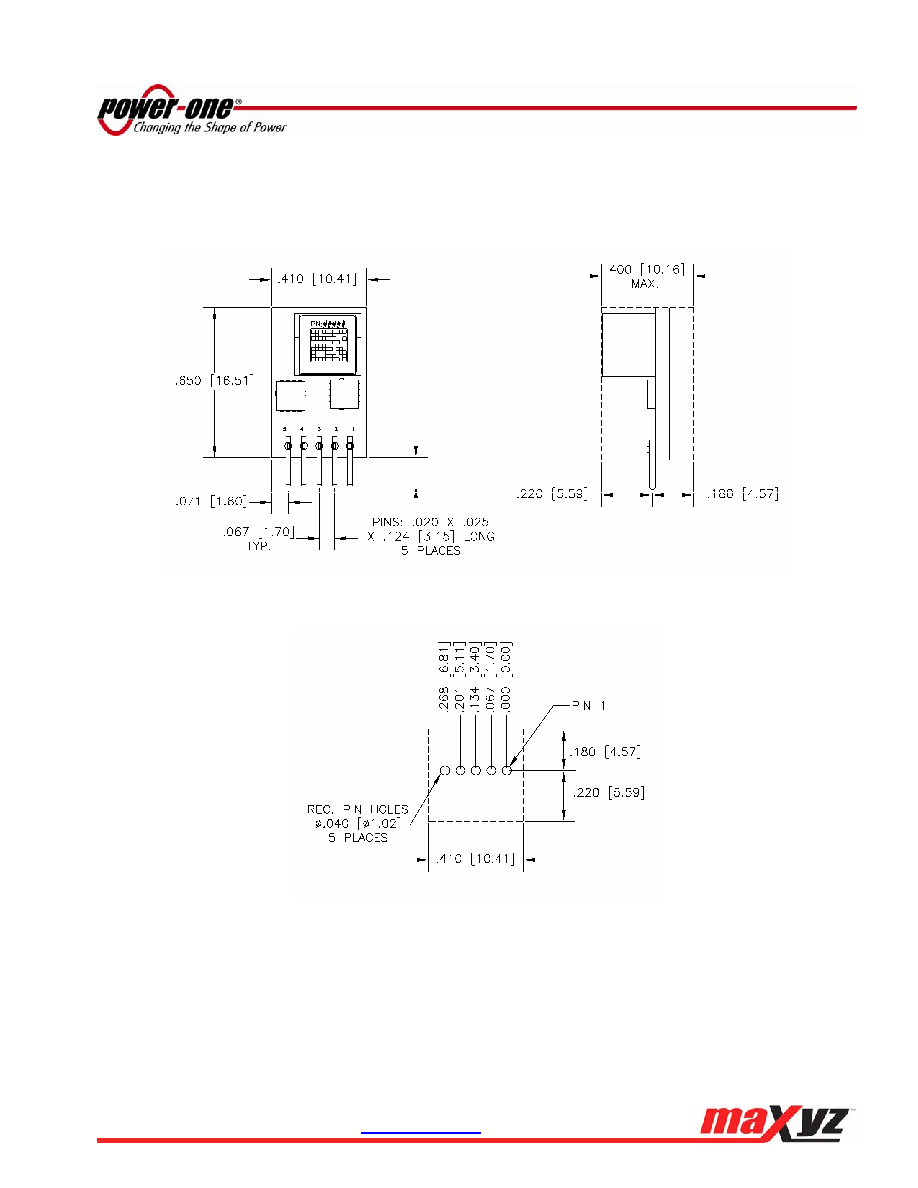

Figure 17. Mechanical Drawing

Figure 18. Recommended Footprint – Top View
