UNISONIC TECHNOLOGIES CO., LTD

PA3211

Preliminary

CMOS IC

www.unisonic.com.tw

1 of 5

Copyright © 2010 Unisonic Technologies Co., Ltd

QW-R502-451.a

RAIL TO RAIL I/O,

HIGH-SLEW-RATE OP AMP

DESCRIPTION

The UTC PA3211 is an input/output rail-to-rail operational

amplifier. This device can be operated on either a single supply

varying from +3V to +5.5V or dual supply ranging from ±1.5V to

±2.75V.

The UTC PA3211 has a perfect AC performance with 6.5MHz

bandwidth, 5.23V/μs slew rate.

The supply current for each amplifier of the UTC PA3211 is

only 500μA that makes it suitable for low current consumption

applications to control high current loads.

Applications include

audio amplification for computers, sound ports, sound cards and

set-top boxes.

The UTC PA3211 is generally applied in portable equipment,

headphone driver, multimedia audio, battery-powered equipment,

ASIC input or output amplifier, sensor amplifier, and low power/low

voltage device.

FEATURES

* Single-Supply Operation: +3V ~ +5.5V

* Input / Output Rail-to-Rail

* Low Quiescent Current: 500μA @ 5V

* With Low Input Current

* 5.23V/μs High Slew Rate

* High Output Driving Capacity

* 6.5MHz High Gain-Bandwidth Product

* 70dB High PSRR

SOT-25

1

3

5

2

4

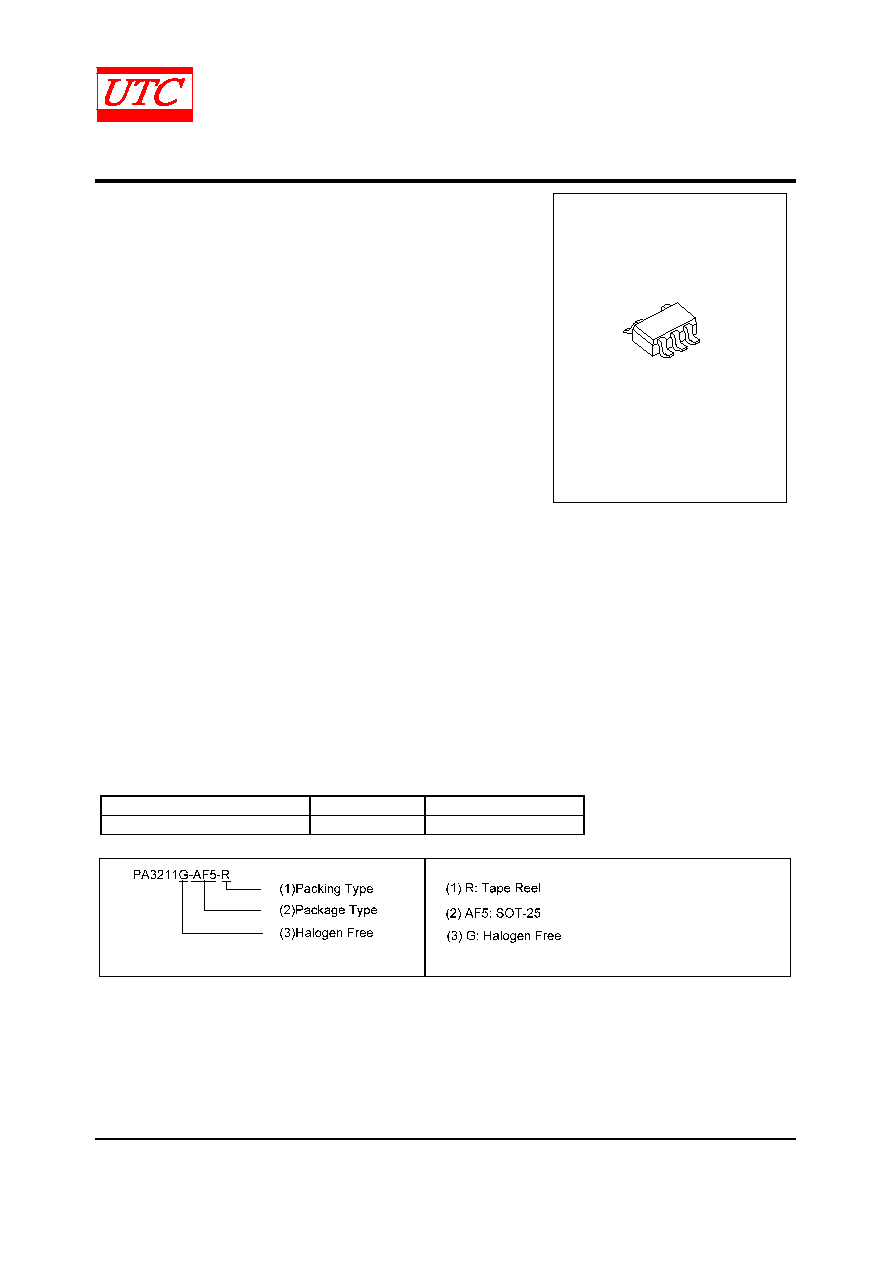

ORDERING INFORMATION

Ordering Number

Package

Packing

PA3211G-AF5-R

SOT-25

Tape Reel
