ADP151

Rev. D | Page 20 of 24

PRINTED CIRCUIT BOARD LAYOUT CONSIDERATIONS

Heat dissipation from the package can be improved by increasing

the amount of copper attached to the pins of the ADP151.

However, as listed in Table 6, a point of diminishing returns

is eventually reached, beyond which an increase in the copper

size does not yield significant heat dissipation benefits.

Place the input capacitor as close as possible to the VIN and

GND pins. Place the output capacitor as close as possible to the

VOUT and GND pins. Use of 0402 or 0603 size capacitors and

resistors achieves the smallest possible footprint solution on

boards where area is limited.

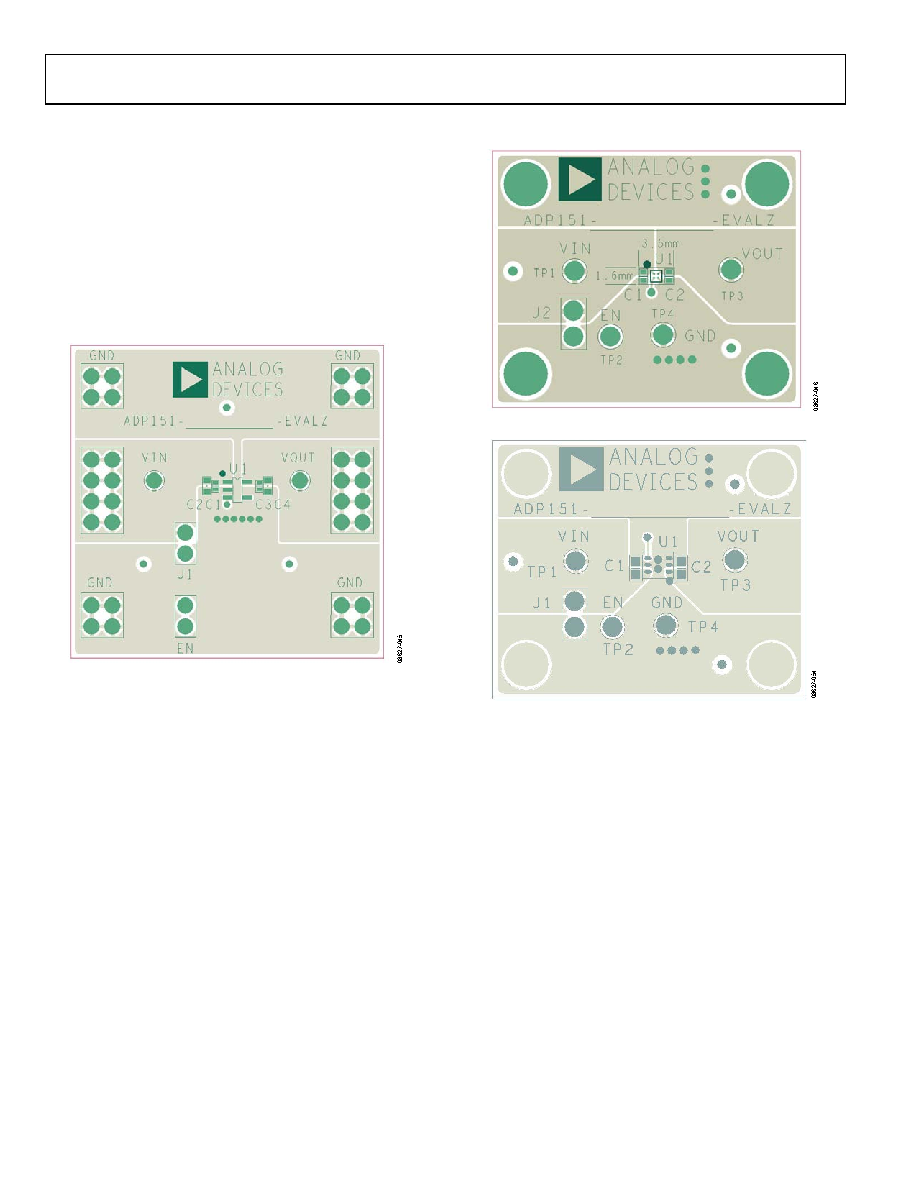

Figure 60. Example TSOT PCB Layout

Figure 61. Example WLCSP PCB Layout

Figure 62. Example LFCSP PCB Layout
