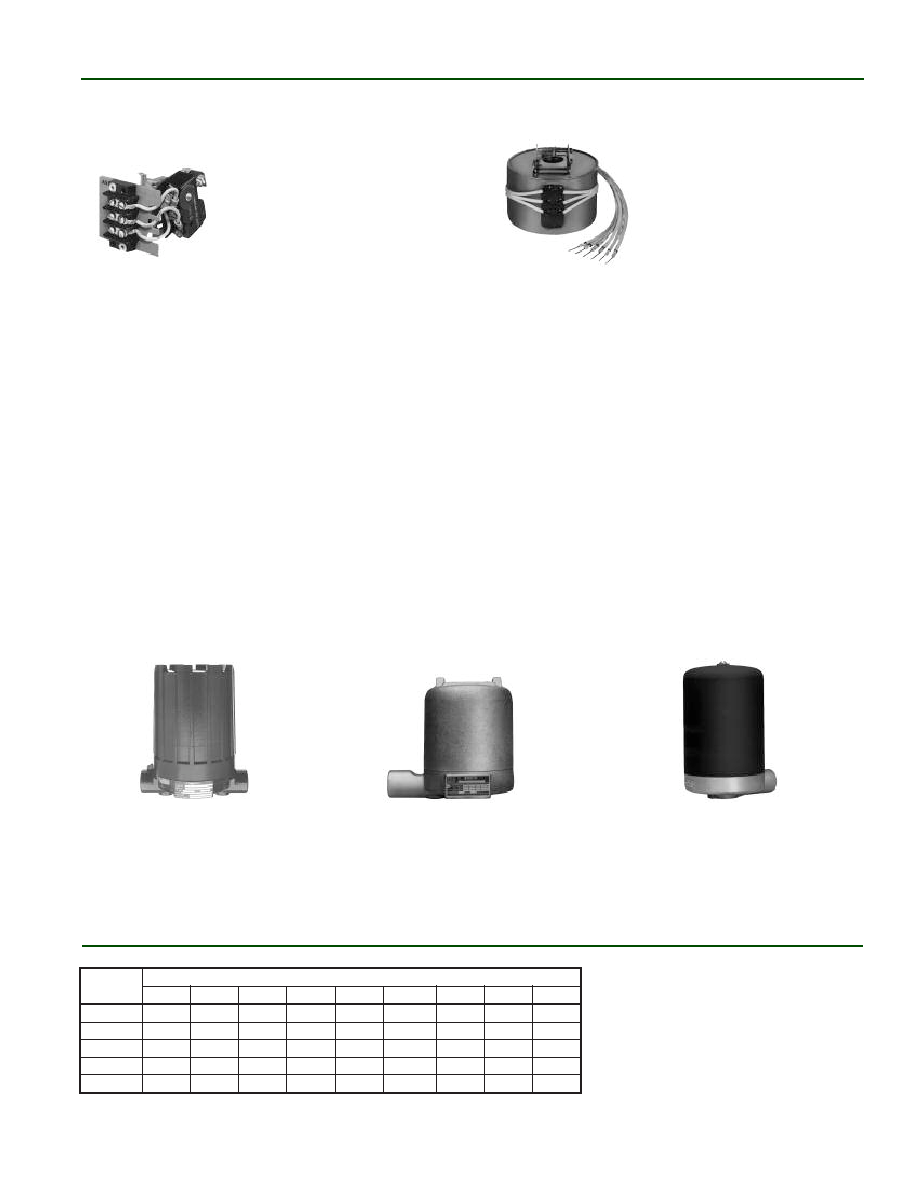

SERIES F, HS, 8 & 9 HERMETICALLY SEALED SWITCHES

• Ideal for use in salt and other corrosive atmospheres

• Positively pressurized capsule for entire mechanism

and contacts

• Process temperatures to +1000° F (+538° C)

SERIES C, D, R & S DRY CONTACT SWITCHES

• Designed for AC and DC current applications

• Process temperatures to +1000° F (+538° C)

S P E C I F I C A T I O N S

S W I T C H

M E C H A N I S M S

A N D

E N C L O S U R E S

SWITCH ENCLOSURE

• TYPE 4X blue polymer coated carbon steel, weather

resistant for non-hazardous areas

• TYPE 4X/7/9 blue polymer coated aluminum and

cast iron enclosures

• Designed to meet Class I, Div. 1 Groups C & D and

Class I, Div. 1 Group B

NEMA 4X/7/9 Cast Iron Enclosure

TYPE 4X Carbon Steel Enclosure

TYPE 4X/7/9 Aluminum Enclosure

B A S I C

E L E C T R I C A L

R A T I N G S

Voltage

Switch Series and Non-Inductive Ampere Rating

S (AC)

S (DC)

120 VAC

15.00

10.00

2.50

5.00

1.00

15.00

10.00

1.00

—

240 VAC

15.00

—

5.00

1.00

15.00

—

24 VDC

10.00

4.00

5.00

1.00

10.00

3.00

0.50

120 VDC

1.00

10.00

0.30

0.50

0.40

1.00

4.00

—

240 VDC

0.50

3.00

—

0.25

—

0.50

3.00

—
