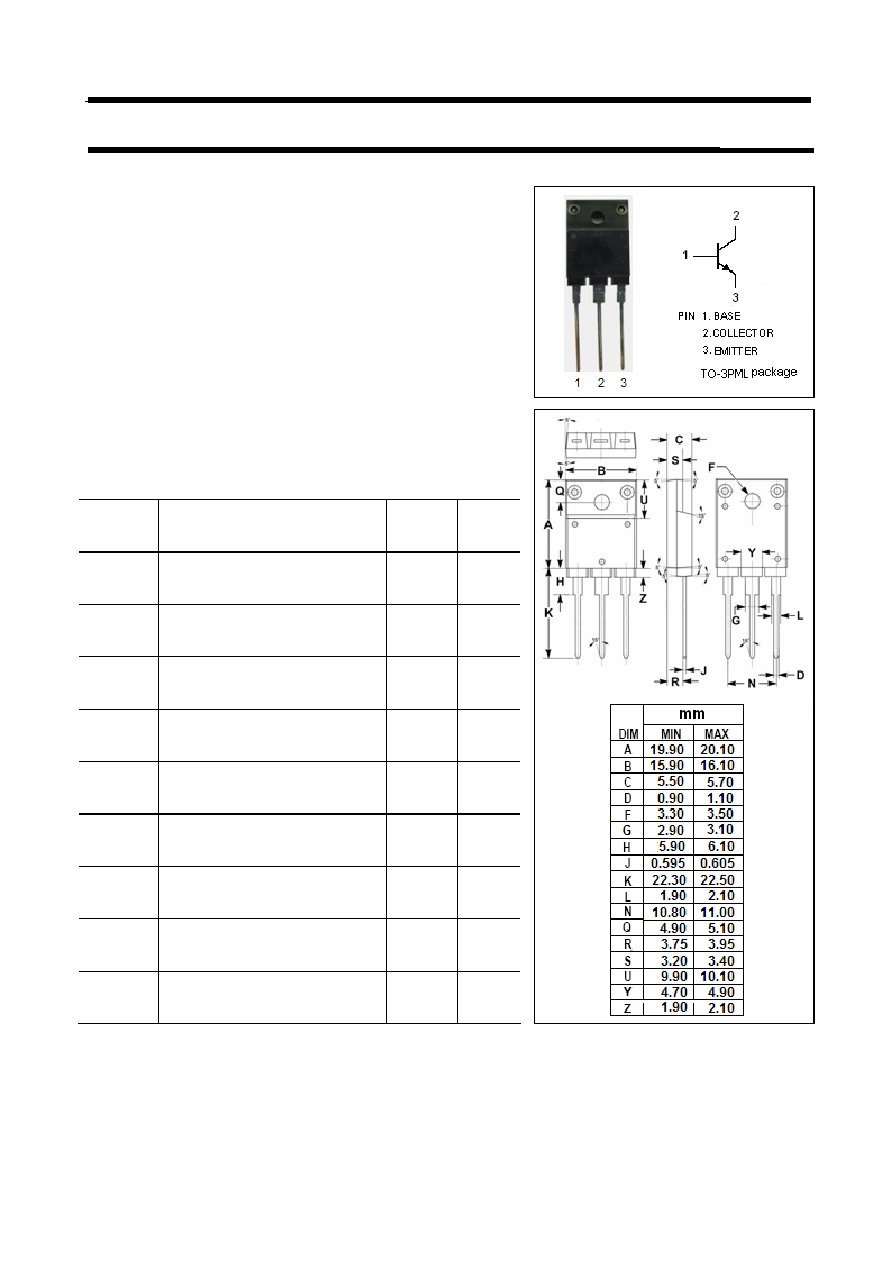

INCHANGE Semiconductor

isc Product Specification

isc Silicon NPN Power Transistor

2SC4745

DESCRIPTION

·High Breakdown Voltage-

: VCBO= 1500V (Min)

·High Switching Speed

APPLICATIONS

·Designed for character display horizontal deflection

output stage applications

ABSOLUTE MAXIMUM RATINGS(Ta=25℃)

SYMBOL

PARAMETER

VALUE

UNIT

VCBO

Collector-Base Voltage

1500

V

VCEO

Collector-Emitter Voltage

800

V

VEBO

Emitter-Base Voltage

6

V

IC

Collector Current- Continuous

6

A

IC(peak)

Collector Current-Peak

7

A

IC(surge)

Collector Current-Surge

16

A

PC

Collector Power Dissipation

@ TC=25℃

50

W

TJ

Junction Temperature

150

℃

Tstg

Storage Temperature Range

-55~150

℃
