M692SDM Datasheet Rev 2.0

Revised 27Jan2012

Integ r a t ed De vice Te chno log y, Inc.

●

Ne t c o m E a st

●

ww w. i d t . c o m

●

tel (774 ) 3 48-160 0

M692SDM

SIGE SINGLE FREQUENCY VCSO

P e rf or mance Datasheet

GENERAL DESCRIPTION

The M692SDM is a single

frequency/single output SAW-based

VCSO for low-jitter clock generation.

The M692SDM incorporates an analog

X2 frequency multiplier to provide an

output frequency that is twice that of the

fundamental VCSO frequency.

FEATURES

◆ Integrated SAW device

◆ Low phase jitter: 250fs rms typical for the M692SDM

(20kHz to 20MHz)

◆ Output frequency: 1747 MHz Typ.

(Specify center frequency at time of order)

◆ Single-ended RF Output

◆ Single +5V power supply

◆ 13 x 20mm SMT (surface mount) package

◆ +10oC to +85oC operating temperature

◆ Pb-free / Compliant to EC RoHS Directive (RoHS 5/6)

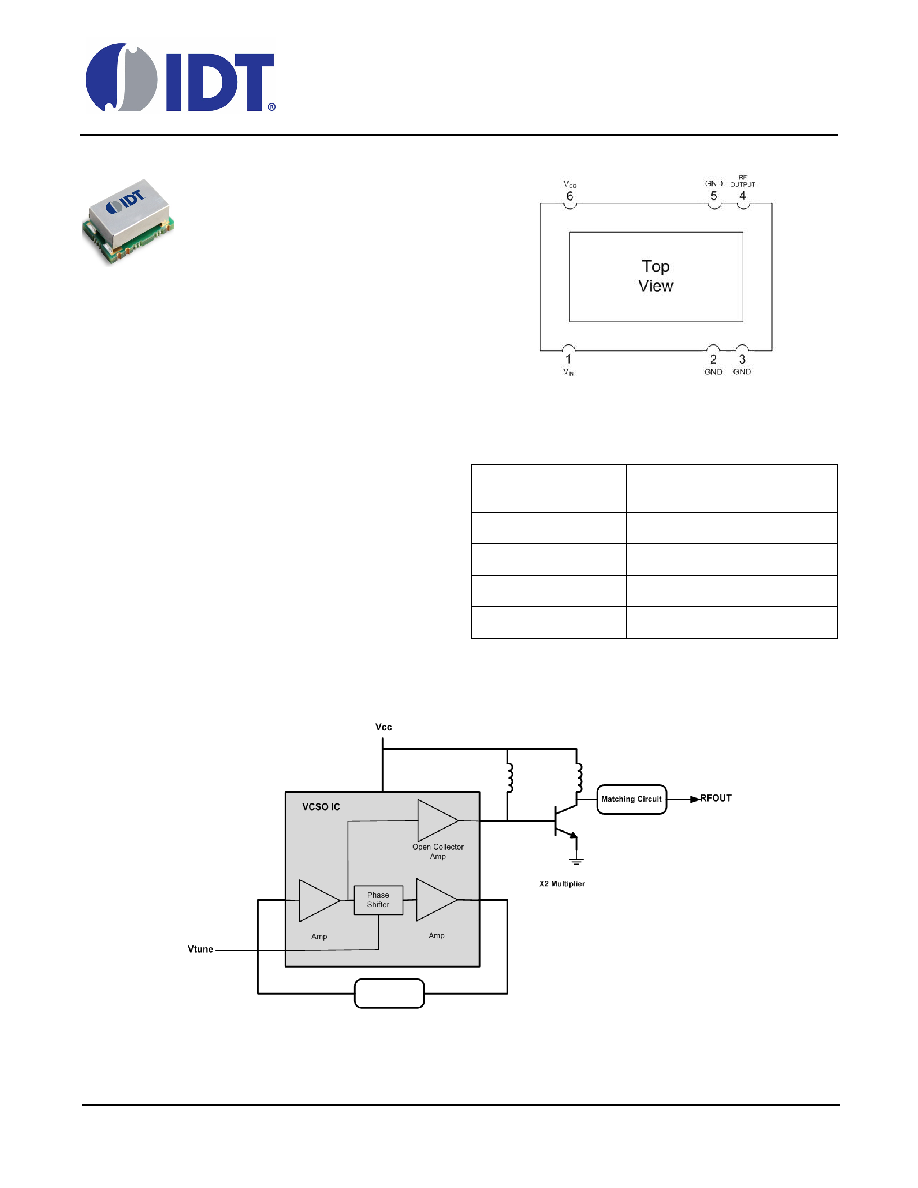

PIN ASSIGNMENT (13 x 20mm SMT)

Figure 1: Pin Assignment

BLOCK DIAGRAM

Figure 2: Block Diagram

Sample of Available Output Frequencies

VCSO Center

Frequencies1 (MHz)

Note 1: Specify VCSO center frequency at time of order.

Other frequencies available upon request.

Output Frequency Code

1747.623000

R01

1747.030837

R02

1748.366885

R03

1748.793733

R04

Table 1: Sample of Available Output Frequencies

SAW Delay

Line

M692SDM SiGe Single Frequency VCSO
