Package mechanical data
STTS2002
46/52
Doc ID 15389 Rev 5
The landing pattern recommendations per the JEDEC proposal for the TDFN package (DN)
are shown in Figure 18.
The preferred implementation with wide corner pads enhances device centering during
assembly, but a narrower option is defined for modules with tight routing requirements.

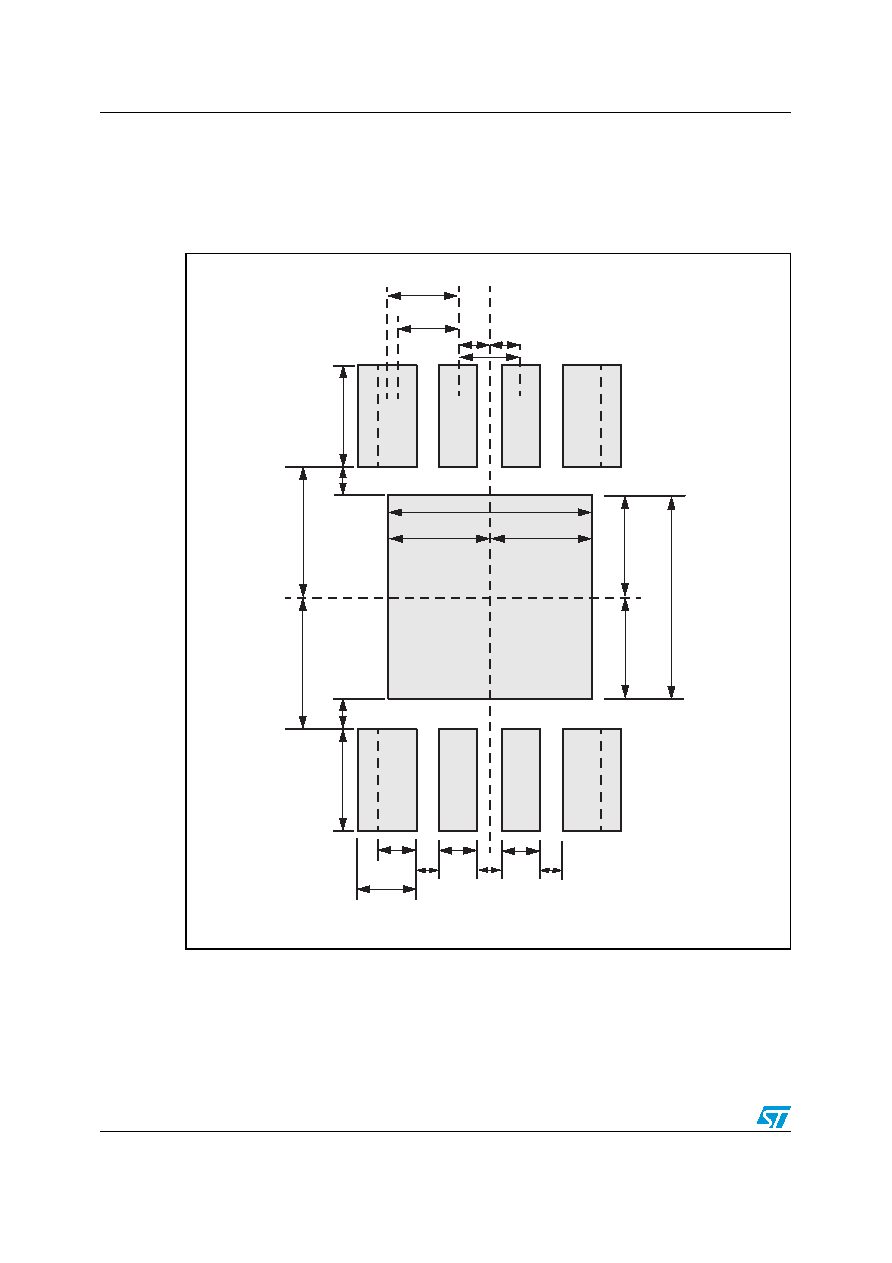

Figure 18.
Landing pattern - TDFN8 package (DN)
e/2
e/2
e2
K
K
E2/2
E2/2
E2
D2/2
D2
D2/2
L
L
e
b
b
b2
b4
K2
K2
K2
E3
E3
e4
ai14000
