ADL5812
Rev. 0 | Page 16 of 28

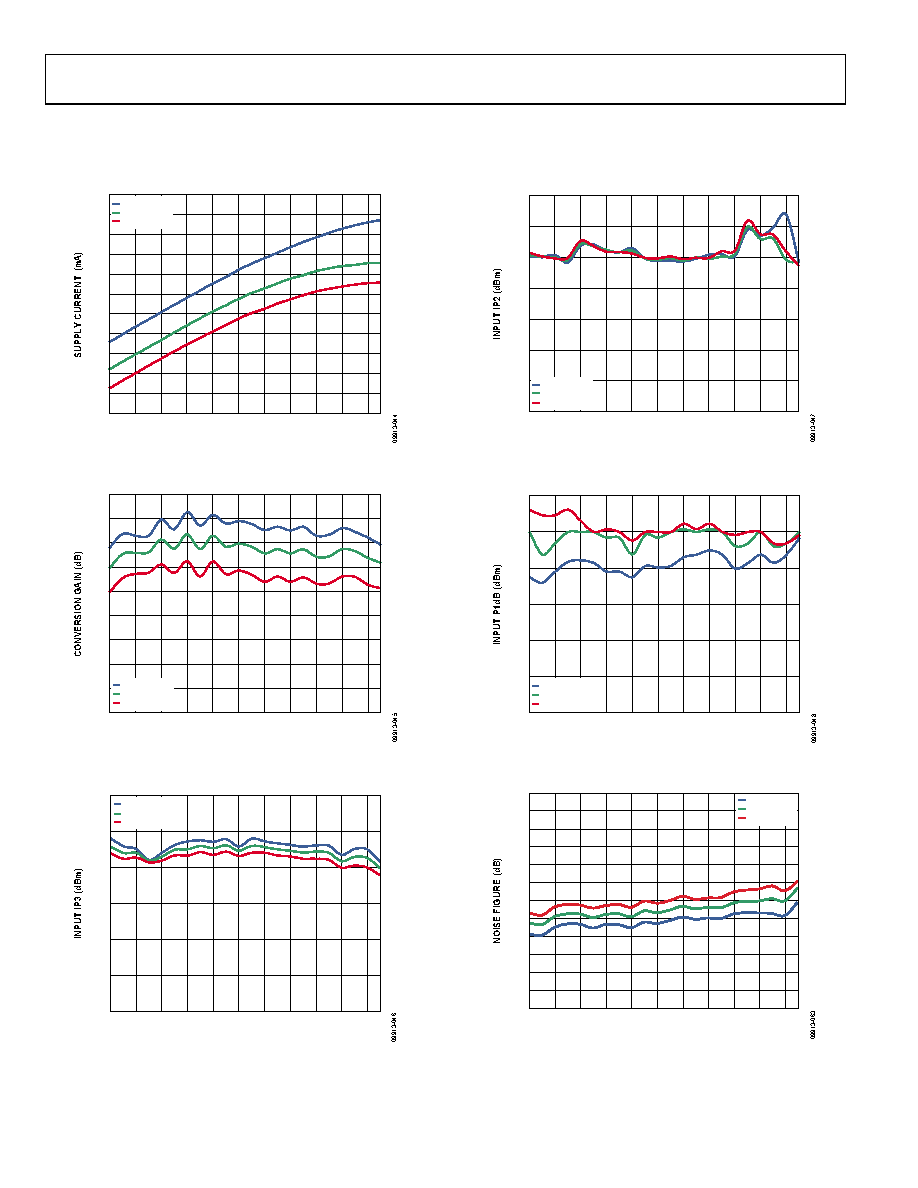

3.6 V PERFORMANCE
VS = 5 V, TA = 25°C, fRF = 1900 MHz, fLO = 1697 MHz, RF power = −10 dBm, LO power = 0 dBm, R1 = R2 = 800 Ω, ZO = 50 Ω, optimum
SPI settings, unless otherwise noted.
700
900 1100 1300 1500 1700 1900 2100 2300 2500 2700
RF FREQUENCY (MHz)
235
240
245
250
255
260
265
270
275
280
285
290
RF FREQUENCY (MHz)
TA = –40°C
TA = +25°C
TA = +85°C
Figure 53. Supply Current vs. RF Frequency at 3.6 V
700
900 1100 1300 1500 1700 1900 2100 2300 2500 2700
RF FREQUENCY (MHz)
RF FREQUENCY (MHz)
0
1
2
3
4
5
6
7
8
9
TA = –40°C
TA = +25°C
TA = +85°C
Figure 54. Power Conversion Gain vs. RF Frequency at 3.6 V
700
900 1100 1300 1500 1700 1900 2100 2300 2500 2700
RF FREQUENCY (MHz)
RF FREQUENCY (MHz)
0
5
10
15
20
25
30
TA = –40°C
TA = +25°C
TA = +85°C
Figure 55. Input IP3 vs. RF Frequency at 3.6 V
700
900 1100 1300 1500 1700 1900 2100 2300 2500 2700
RF FREQUENCY (MHz)
RF FREQUENCY (MHz)
0
10
20
30
40
50
60
70
TA = –40°C
TA = +25°C
TA = +85°C
Figure 56. Input IP2 vs. RF Frequency at 3.6 V
700
900 1100 1300 1500 1700 1900 2100 2300 2500 2700
RF FREQUENCY (MHz)
RF FREQUENCY (MHz)
0
2
4
6
8
10
12
-
TA = –40°C
TA = +25°C
TA = +85°C
Figure 57. Input P1dB vs. RF Frequency at 3.6 V
700
900 1100 1300 1500 1700 1900 2100 2300 2500 2700
RF FREQUENCY (MHz)
TA = –40°C
TA = +25°C
TA = +85°C
0
2
4
6
8
10
12
14
16
18
20
22
24
Figure 58. SSB Noise Figure vs. RF Frequency at 3.6 V
