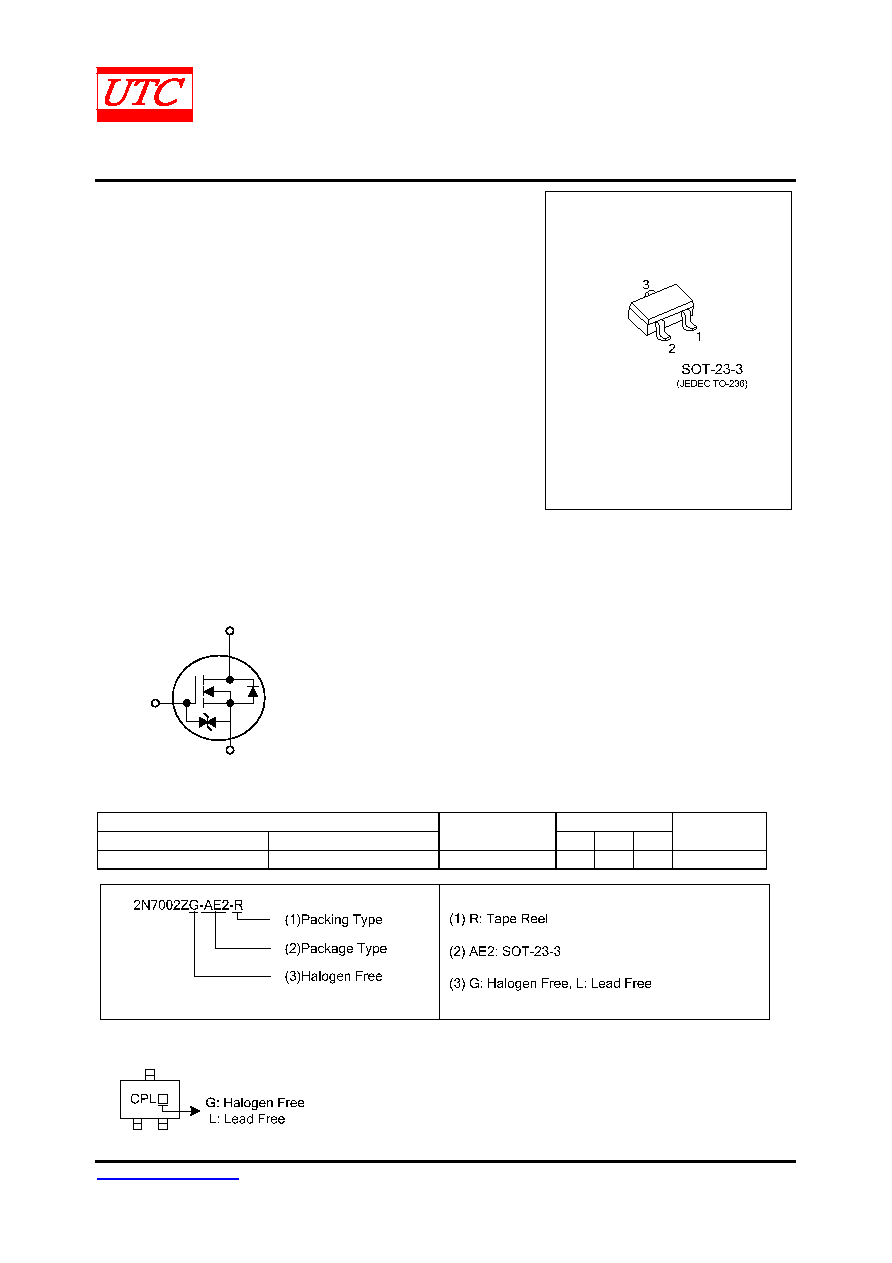

2N7002Z

Power MOSFET

www.unisonic.com.tw

1 of 4

QW-R502-273.G

300mA, 60V N-CHANNEL

ENHANCEMENT MODE

POWER MOSFET

DESCRIPTION

The UTC 2N7002Z uses advanced technology to provide

excellent RDS(ON), low gate charge and operation with low gate

voltages. This device is suitable for use as a load switch or in

PWM applications.

FEATURES

* RDS(ON) <7.5Ω

* Low Reverse Transfer Capacitance (CRSS = typical 3.0 pF)

* ESD Protected

* Fast Switching Capability

* Avalanche Energy Specified

* Improved dv/dt Capability, High Ruggedness

SYMBOL

2.Gate

1.Source

3.Drain

ORDERING INFORMATION

Ordering Number

Package

Pin Assignment

Packing

Lead Free

Halogen Free

1

2

3

2N7002ZL-AE2-R

2N7002ZG-AE2-R

SOT-23-3

S

G

D

Tape Reel

MARKING
