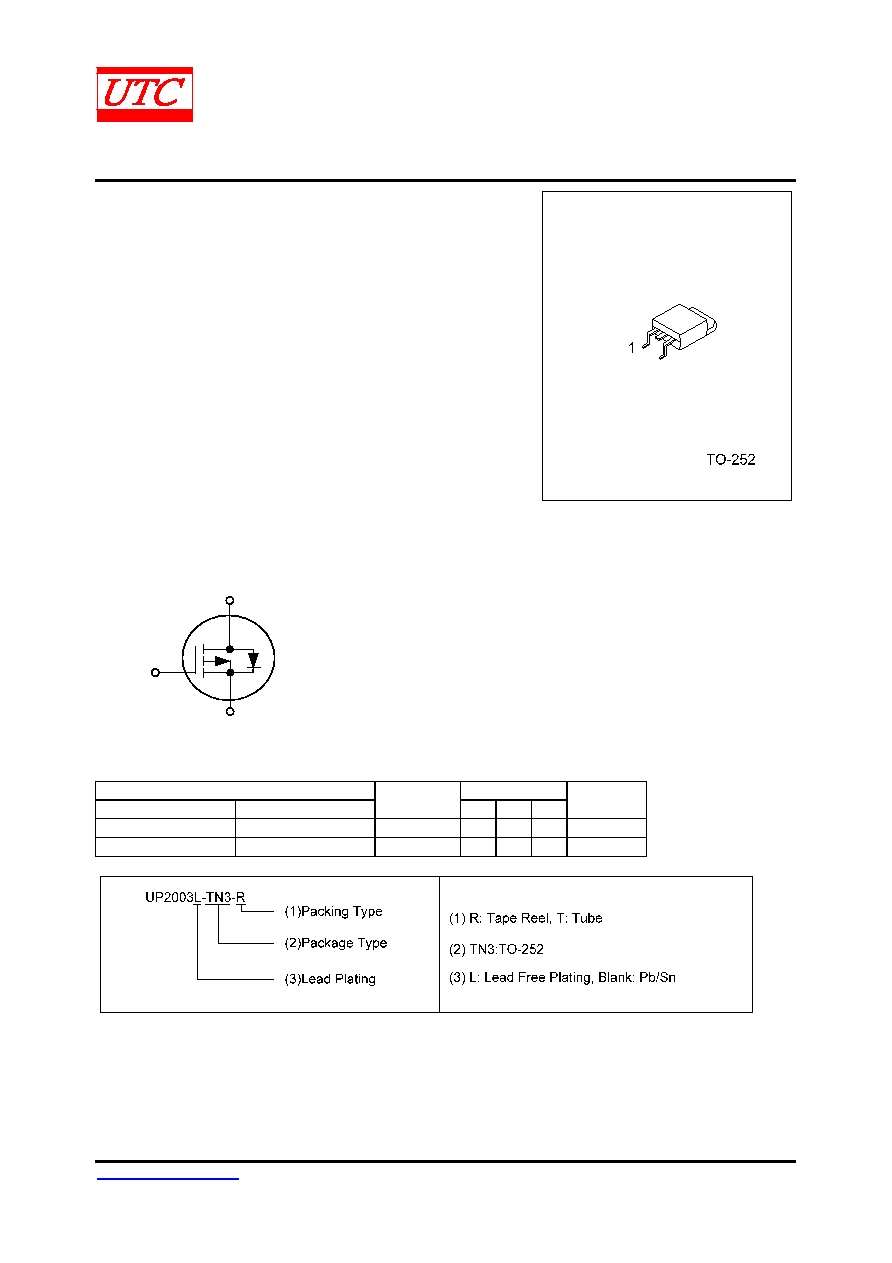

UNISONIC TECHNOLOGIES CO., LTD

UP2003

Power MOSFET

www.unisonic.com.tw

1 of 5

QW-R502-202.B

P-CHANNEL LOGIC LEVEL

ENHANCEMENT MODE FIELD

EFFECT TRANSISTOR

DESCRIPTION

The UP2003 uses advanced trench technology to provide

excellent RDS(ON), low gate charge and operation with low gate

voltages. This device is suitable for use as a load switch or in PWM

applications.

FEATURES

* VDS(V)=-25V

* ID=-9 A

* RDS(ON)<35 mΩ@ VGS =-4.5 V, ID =-7 A

* RDS(ON)<20 mΩ@ VGS =-10 V, ID =-9 A

SYMBOL

1.Gate

3.Source

2.Drain

*Pb-free plating product number: UP2003L

ORDERING INFORMATION

Ordering Number

Pin Assignment

Normal

Lead Free Plating

Package

1

2

3

Packing

UP2003-TN3-R

UP2003L-TN3-R

TO-252

G

D

S

Tape Reel

UP2003-TN3-T

UP2003L-TN3-T

TO-252

G

D

S

Tube
