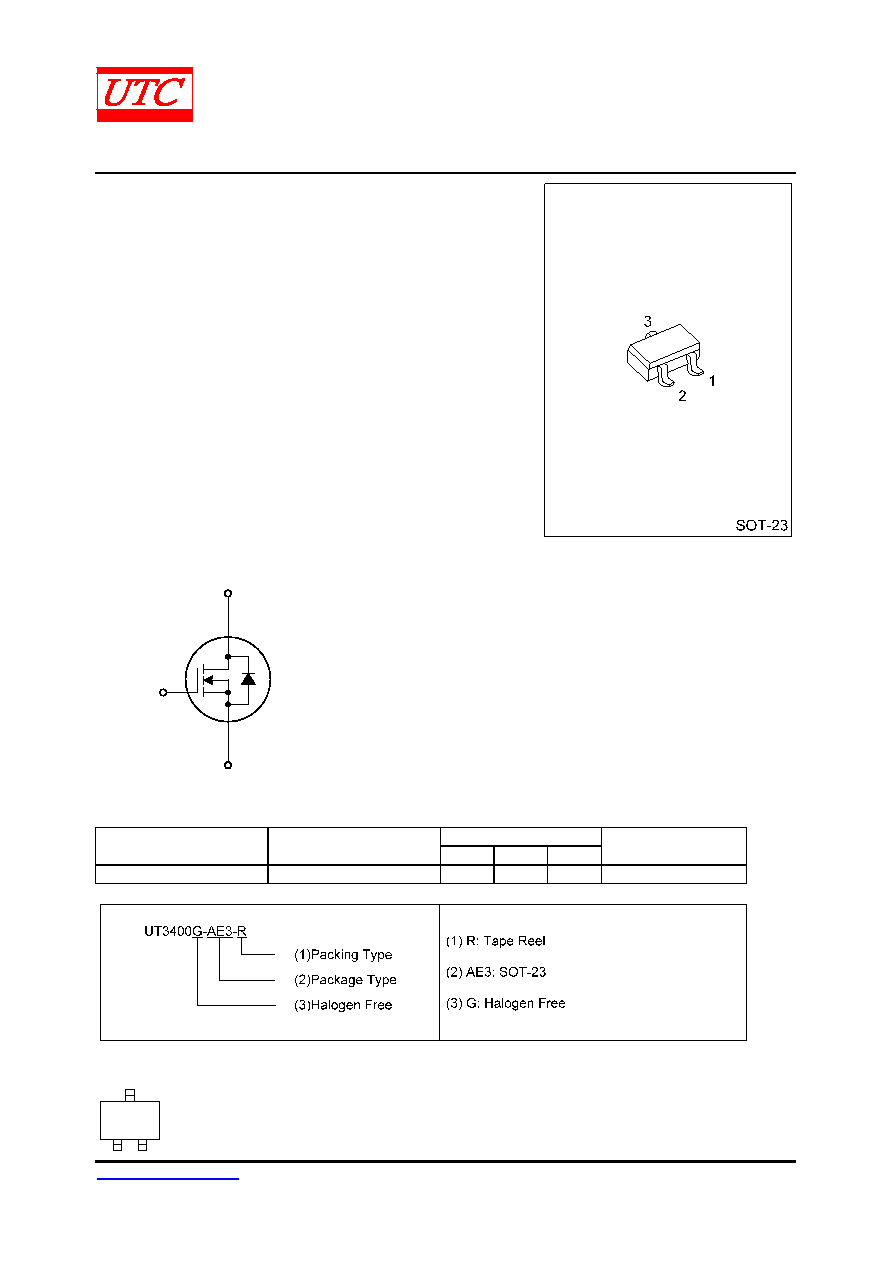

1 / 3 page

UNISONIC TECHNOLOGIES CO., LTD

UT3400

Power MOSFET

www.unisonic.com.tw

1 of 3

QW-R502-371.A

N-CHANNEL ENHANCEMENT

MODE POWER MOSFET

DESCRIPTION

The UTC UT3400 is an N-ch enhancement MOSFET providing

the customers with perfect RDS(ON) and low gate charge. This device

can be operated with 2.5V low gate voltage.

The UTC UT3400 is optimized for applications, such as a load

switch or in PWM.

FEATURES

* VDS (V)=30V

* ID=5.8 A

* RDS(ON)<28mΩ @VGS=10V

RDS(ON)<33mΩ @VGS=4.5V

RDS(ON)<52mΩ @VGS=2.5V

* Halogen Free

SYMBOL

(1) Source

2. Gate

(3) Drain

ORDERING INFORMATION

Pin Assignment

Ordering Number

Package

1

2

3

Packing

UT3400G-AE3-R

SOT-23

S

G

D

Tape Reel

MARKING

340G
