Data Sheet
ADA4610-2
Rev. A | Page 11 of 20
3
2
1
0
–1
–2
–3
0
1
2
3
4
5
6
7
8
9
10
TIME (µs)
ADA4610-2
VSY = ±5V
TA = 25°C
AV = +1
RL = 2kΩ
CL = 100pF

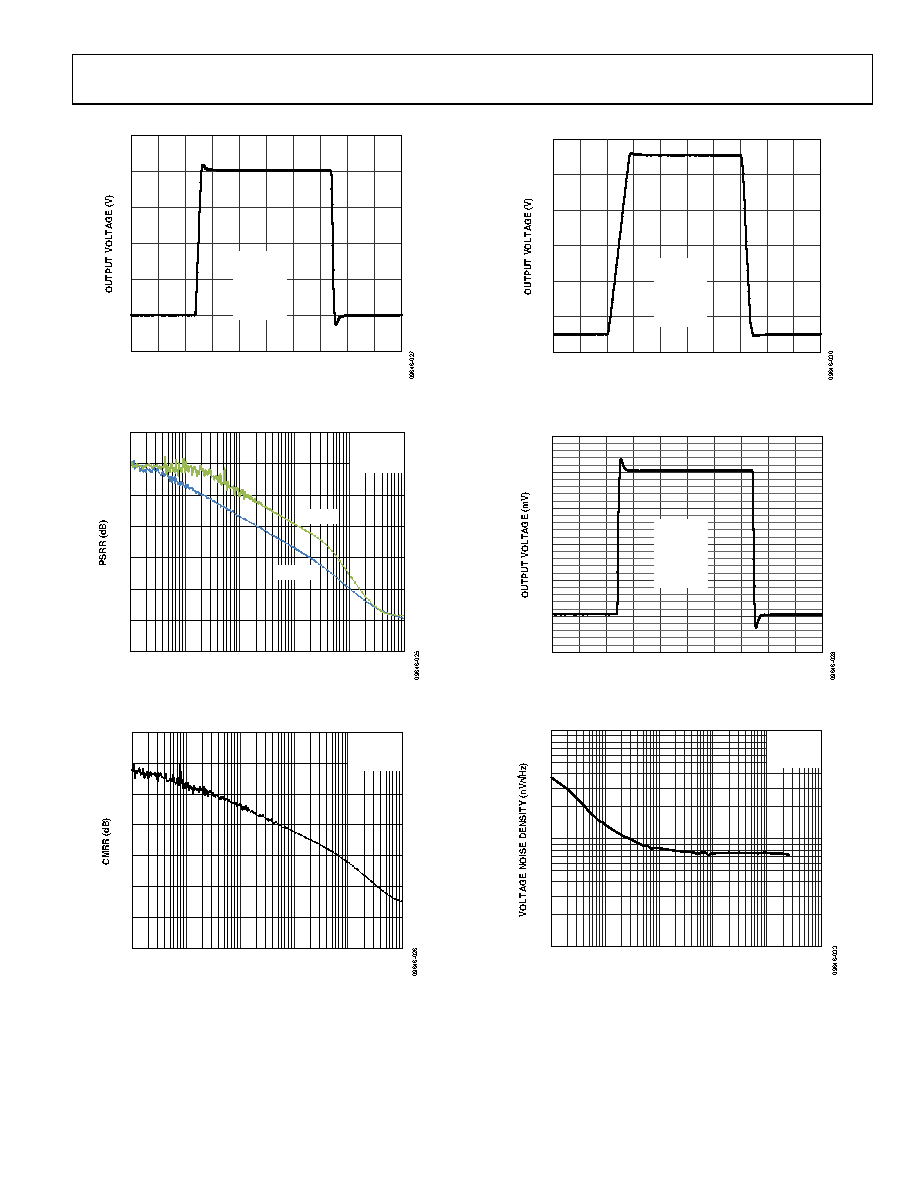

Figure 27. Large Signal Transient Response
120
100
80
60
40
20
0
–20
1
0.1
10
100
1k
10k
FREQUENCY (kHz)
PSRR–
PSRR+
ADA4610-2
VSY = ±15V
TA = 25°C
Figure 28. PSRR vs. Frequency
120
140
100
80
60
40
20
0
1
0.1
10
100
1k
10k
FREQUENCY (kHz)
ADA4610-2
VSY = ±15V
TA = 25°C
Figure 29. CMRR vs. Frequency
12
8
4
0
–4
–8
–12
0
1
2
3
4
5
6
7
8
9
10
TIME (µs)
ADA4610-2
VSY = ±15V
TA = 25°C
AV = +1
RL = 2kΩ
CL = 100pF
Figure 30. Large Signal Transient Response
75
50
25
0
–25
–50
–75
0
1
2
3
4
5
6
7
8
9
10
TIME (µs)
ADA4610-2
VSY = ±5V
TA = 25°C
AV = +1
RL = 2kΩ
CL = 100pF
Figure 31. Small Signal Transient Response
100
10
1
0.001
0.01
0.1
1
10
100
FREQUENCY (kHz)
ADA4610-2
VSY = ±5V
TA = 25°C
Figure 32. Voltage Noise Density
