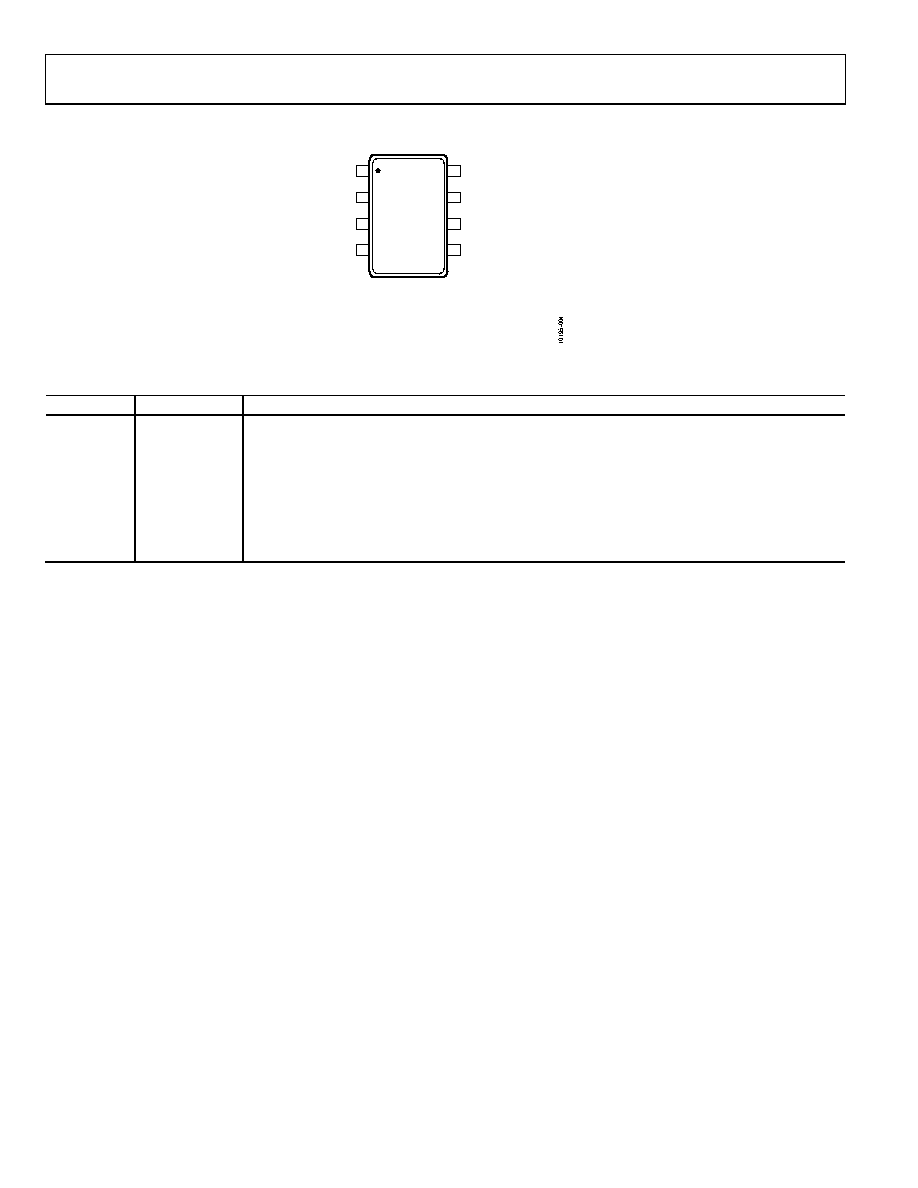

6 / 24 page  AD8476 Data Sheet Rev. B | Page 6 of 24 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS INN 1 +VS 2 VOCM 3 +OUT 4 INP 8 –VS 7 NC 6 –OUT 5 AD8476 TOP VIEW (Not to Scale) NOTES 1. PINS LABELED NC CAN BE ALLOWED TO FLOAT, BUT IT IS BETTER TO CONNECT THESE PINS TO GROUND. AVOID ROUTING HIGH SPEED SIGNALS THROUGH THESE PINS BECAUSE NOISE COUPLING MAY RESULT. Figure 3. 8-Lead MSOP Pin Configuration Table 4. 8-Lead MSOP Pin Function Descriptions Pin No. Mnemonic Description 1 INN Negative Input . 2 +VS Positive Supply. 3 VOCM Output Common-Mode Adjust. 4 +OUT Noninverting Output. 5 −OUT Inverting Output. 6 NC This pin is not connected internally (see Figure 3). 7 −VS Negative Supply. 8 INP Positive Input. |
|
|
