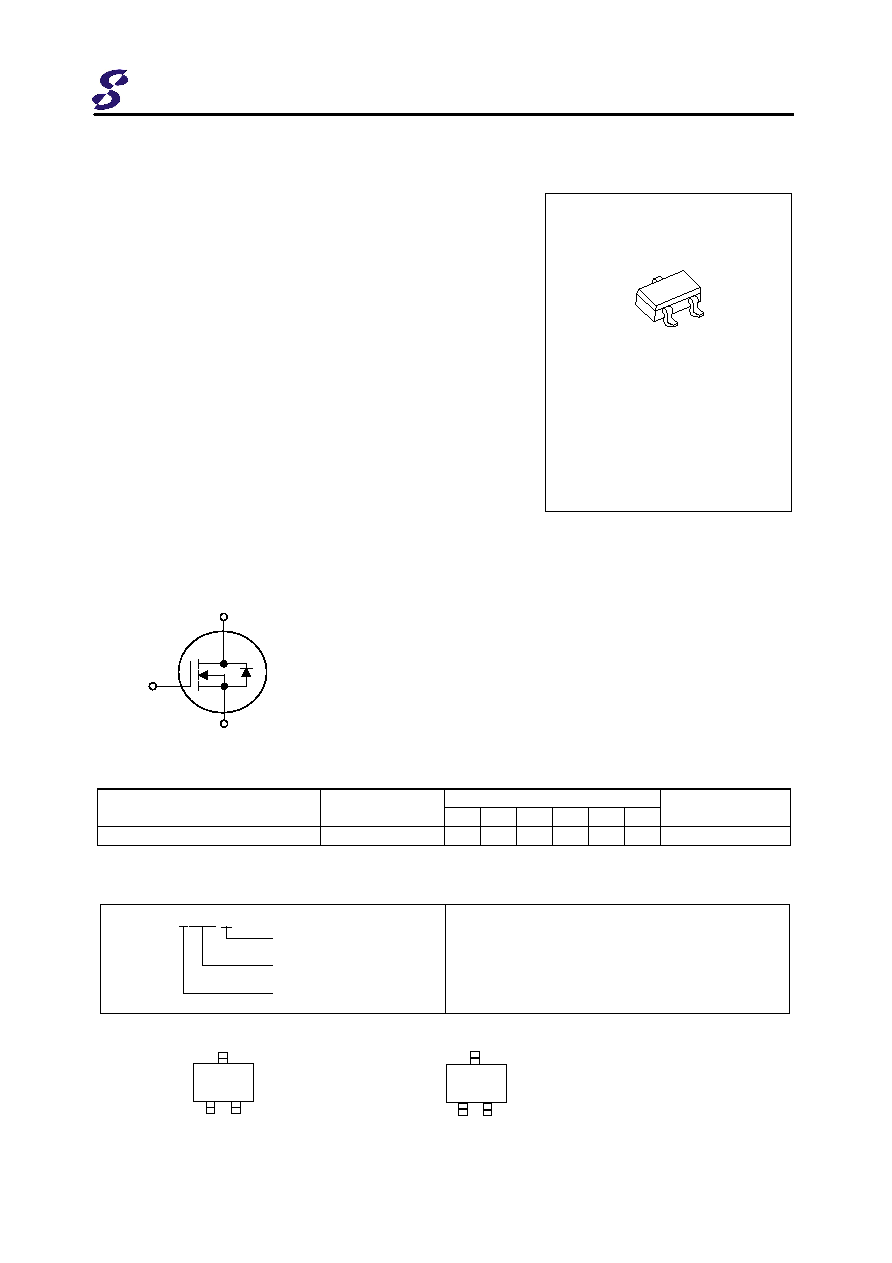

N-CHANNEL

ENHANCEMENT MODE

DESCRIPTION

The AMS 2N7002 has been designed to minimize on-state

resistance while provide rugged, reliable, and fast switching

performance. It can be used in most applications requiring up to

400mA DC and can deliver pulsed currents up to 2A. The product

is particularly suited for low voltage, low current applications such

as small servo motor control, power MOSFET gate drivers, and

other switching applications

FEATURES

* Voltage Controlled Small Signal Switch

* Rugged and Reliable

* High Saturation Current Capability

SYMBOL

ORDERING INFORMATION

Pin Assignment

Ordering Number

Package

1

2

3

4

5

6

Packing

2N7002G-AE2-R

SOT-23-3

S

G

D

-

-

-

Tape Reel

MARKING

SOT-23-3

SOT-23-3

7002k

1

2

3

SOT-23-3

3.Drain

2.Gate

1.Source

3PG

2N7002G-AE2-R

(1)PackingType

(2)Package Type

(3)Halogen Free

(1)R:Tape Reel

(2)AE2:SOT-23-3

(3)G:HalogenFree

AMS 2N7002

1

Advanced Monolithic Systems http://www.ams-semitech.com
