a

Matched Monolithic

Dual Transistor

MAT01

FEATURES

V typ, 100

V max

V/ C max

Low Noise Voltage: 0.23

V p-p—0.1 Hz to 10 Hz

High Breakdown: 45 V min

Available in Die Form

PRODUCT DESCRIPTION

The MAT01 is a monolithic dual NPN transistor. An exclusive

Silicon Nitride “Triple-Passivation” process provides excellent

stability of critical parameters over both temperature and time.

Matching characteristics include offset voltage of 40

µV, tem-

perature drift of 0.15

µV/°C, and h

10 nA. The high gain at low collector current makes the

MAT01 ideal for use in low power, low level input stages.

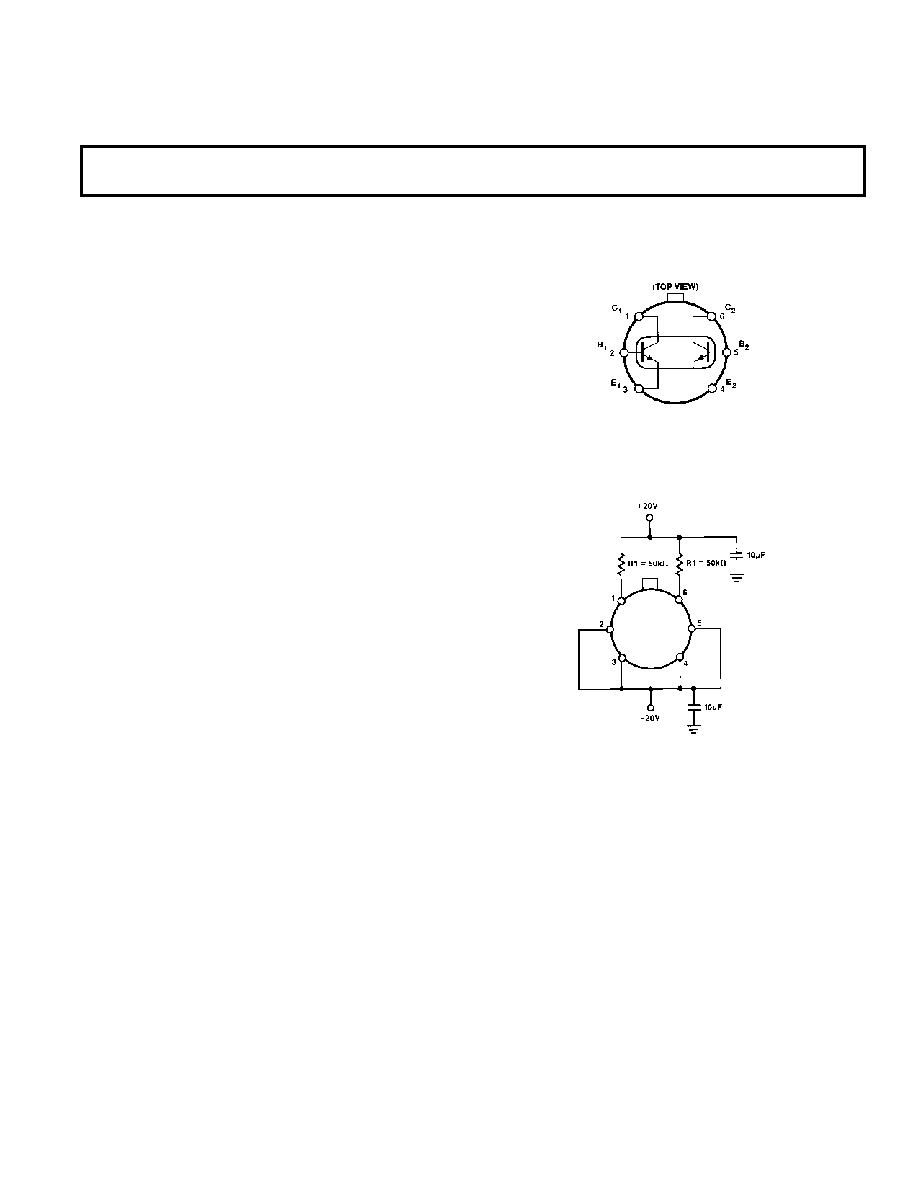

PIN CONNECTION

TO-78

(H Suffix)

NOTE: Substrate is connected to case.
