Data Sheet
ADP1190
Rev. 0 | Page 5 of 12

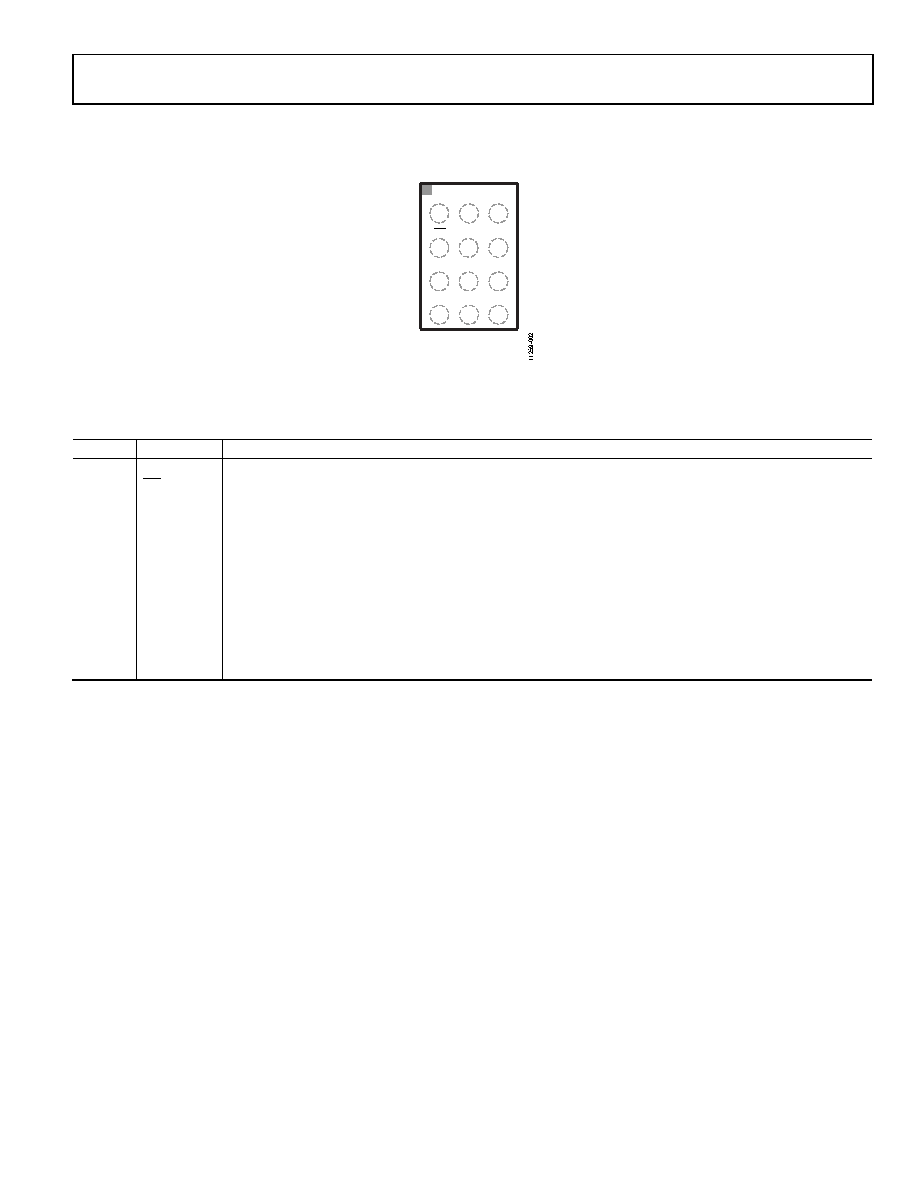

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS
Figure 3. Pin Configuration
Table 4. Pin Function Descriptions
Pin No.
Mnemonic
Description
A1
GND
Ground.
B1
EN
Enable Input, Active Low.
C1
IN
Input Voltage.
D1
OUT
Load Switch Output Voltage.
A2
T1
Channel 1 Analog Switch. Connect to the SIM card socket (has active discharge).
B2
T2
Channel 2 Analog Switch. Connect to the SIM card socket (has active discharge).
C2
T3
Channel 3 Analog Switch. Connect to the SIM card socket (has active discharge).
D2
T4
Channel 4 Analog Switch. Connect to the SIM card socket (has active discharge).
A3
S1
Channel 1 Analog Switch. Connect to the microcontroller.
B3
S2
Channel 2 Analog Switch. Connect to the microcontroller.
C3
S3
Channel 3 Analog Switch. Connect to the microcontroller.
D3
S4
Channel 4 Analog Switch. Connect to the microcontroller.
TOP VIEW
(BALL SIDE DOWN)
Not to Scale
ADP1190
GND
T1
S1
EN
T2
S2
IN
T3
S3
OUT
T4
S4
1
A
B
C
D
2
3
