DC and AC parameters
M95128-W M95128-R M95128-DF
32/49
Doc ID 5798 Rev 16
9

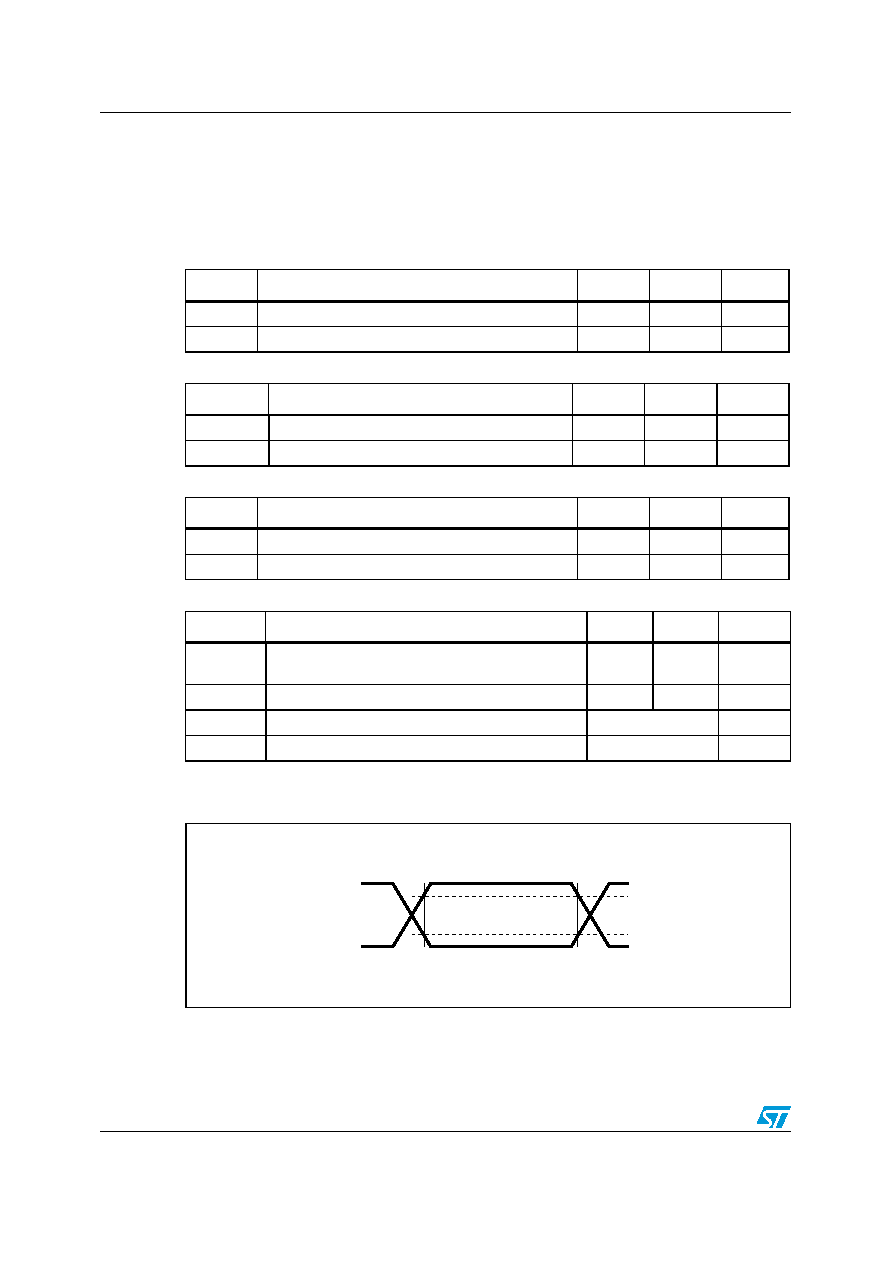

DC and AC parameters
This section summarizes the operating conditions and the DC/AC characteristics of the
device.
Figure 19.
AC measurement I/O waveform
Table 9.
Operating conditions (M95128-W, device grade 6)
Symbol
Parameter
Min.
Max.
Unit
VCC
Supply voltage
2.5
5.5
V
TA
Ambient operating temperature
–40
85
°C
Table 10.
Operating conditions (M95128-R, device grade 6)
Symbol
Parameter
Min.
Max.
Unit
VCC
Supply voltage
1.8
5.5
V
TA
Ambient operating temperature
–40
85
°C
Table 11.
Operating conditions (M95128-DF, device grade 6)
Symbol
Parameter
Min.
Max.
Unit
VCC
Supply voltage
1.7
5.5
V
TA
Ambient operating temperature
–40
85
°C
Table 12.
AC measurement conditions
Symbol
Parameter
Min.
Max.
Unit
CL
Load capacitance
30 or
100(1)
1.
See AC tables 19, 20 and 21.
pF
Input rise and fall times
50
ns
Input pulse voltages
0.2 VCC to 0.8 VCC
V
Input and output timing reference voltages
0.3 VCC to 0.7 VCC
V
