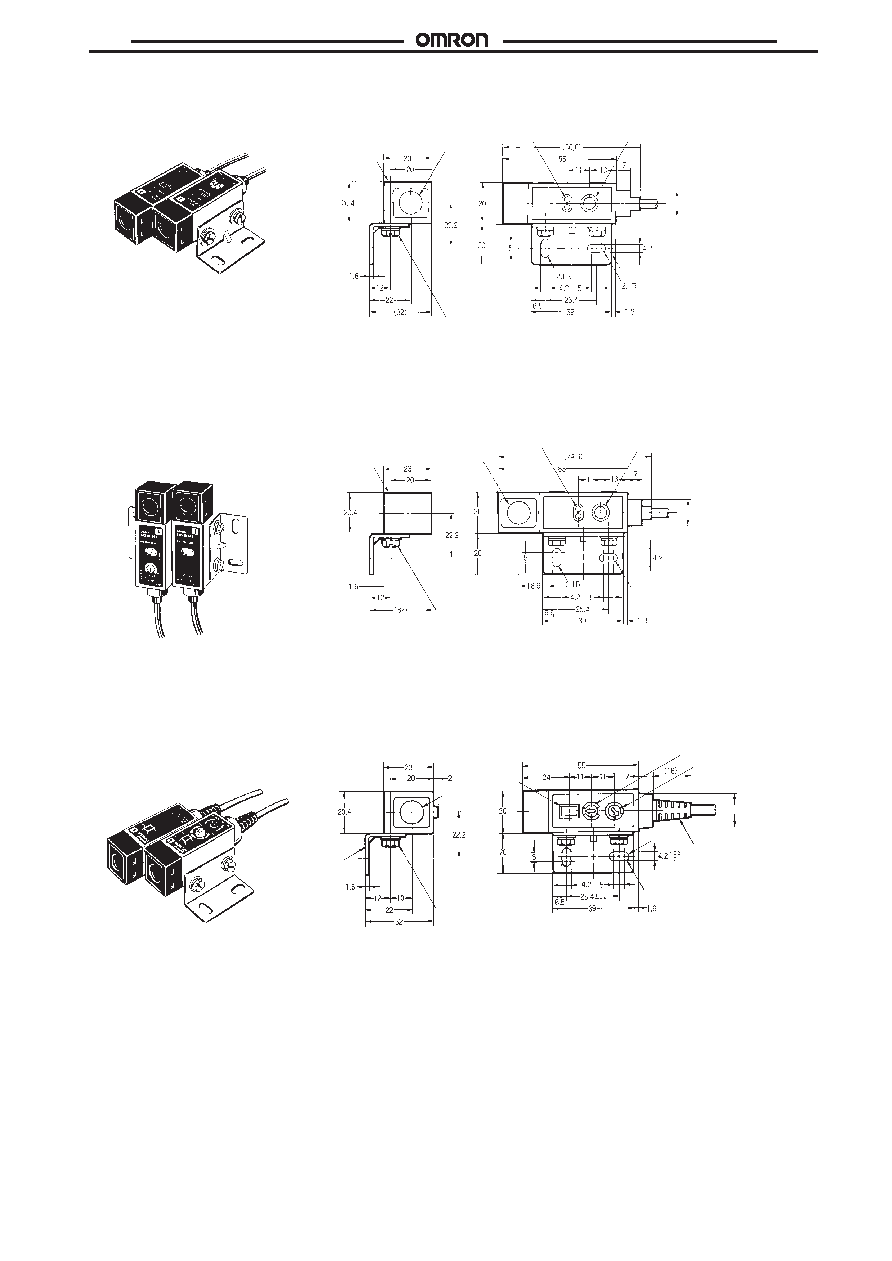

E3S

E3S-5E(B)4

Cord:

4-mm dia., 18/0.12, 3-conductor

Standard length: 2 m

Weight: approx. 155 g each for emitter and

receiver

Note:

1. A mounting bracket can be attached to side A.

2. Receiver only.

E3S-5E(B)41

Cord:

4-mm dia., 18/0.12, 3-conductor

Standard length: 2 m

Weight: approx. 165 g each for emitter and

receiver

Note:

1. A mounting bracket can be attached to side A.

2. Receiver only.

13.dia.

E39-L6

11 mm dia. lens

(A) (see note 1)

Two, M4 slotted

hexagonal bolts

Indicator

Sensitivity adjustor

(see note 2)

11 mm dia. lens

(A) (see note 1)

Indicator

Sensitivity adjustor

(see note 2)

Two, M4 slotted

hexagonal bolts

13 dia.

E3S-5E(B)4S(1)

Cord:

4.5-mm dia., 18/0.12, 4-conductor

Standard length: 2 m

Weight: approx. 155 g

11 mm

dia. lens

Indicator

Two, M4 slotted

hexagonal bolts

Sensitivity adjustor (receiver only)

Mode selector (receiver only)

Cord protector

Two mounting holes

Mounting bracket

16 dia.

(2.1R)
