Arizona Microtek, Inc.

AZP53

Low Phase Noise Sine Wave/CMOS

to LVPECL Buffer/Translator

www.azmicrotek.com

+1-480-962-5881

13

Request a Sample

Mar 2013, Rev 2.2

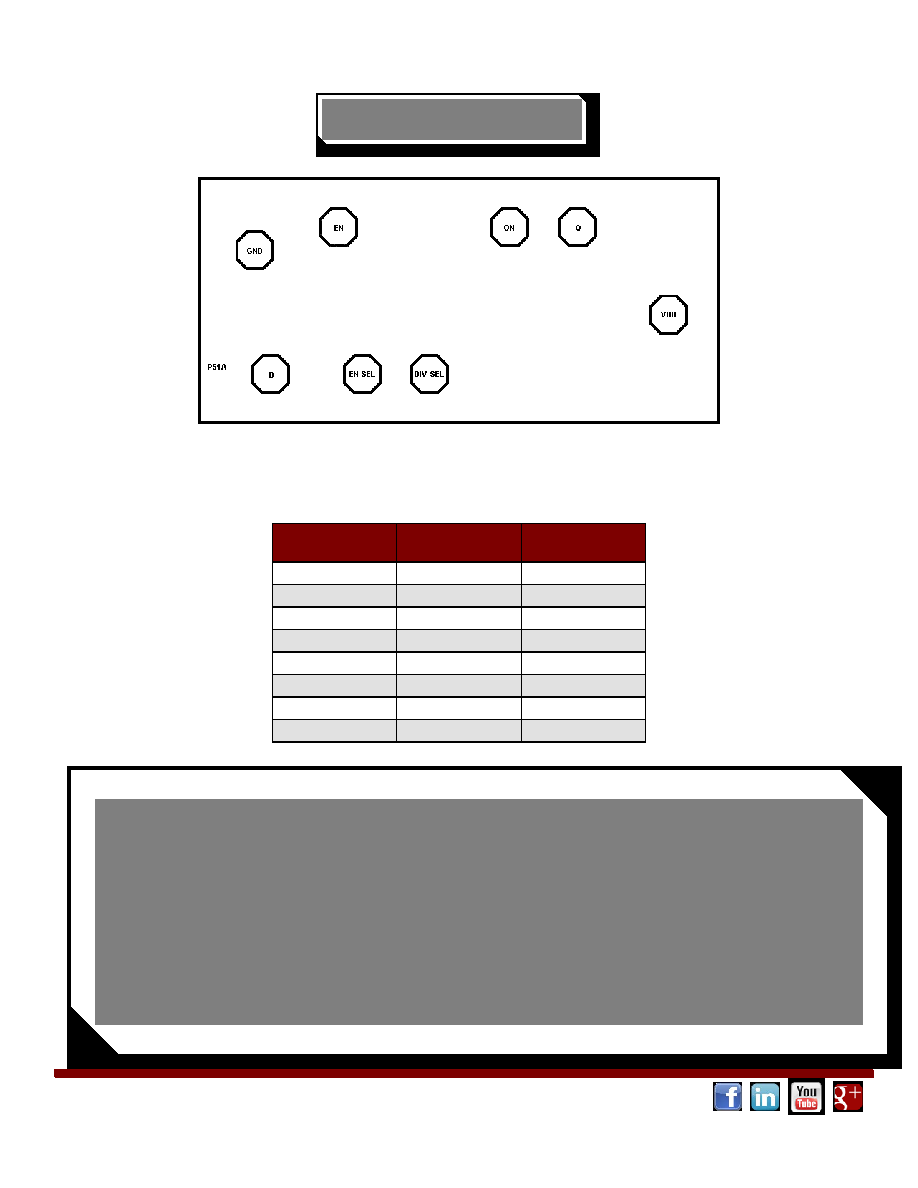

Die Size 754µ x 354µ

Pad Size 52.1µ

Octagonal Die Coordinates (Center 0,0)

Pad Name

X Coordinate

(µm)

Y Coordinate

(µm)

D

-273.875

-106.575

EN_SEL

-140.35

-106.65

DIV_SEL

-43.625

-106.65

VDD

302.875

-20.45

Q

170.925

105.725

QN

72.55

105.725

EN

-175.3

106

GND

-296.35

72.325
