Preliminary Technical Data
ADL6010
Rev. PrB | Page 7 of 10
TYPICAL PERFORMANCE CHARACTERISTICS
Vpos = 5V; single-ggended input drive, TA= -40oC (Blue), +25oC (Green) and + 85oC (Red), input signal is a sine wave (CW), unless
otherwise indicated.

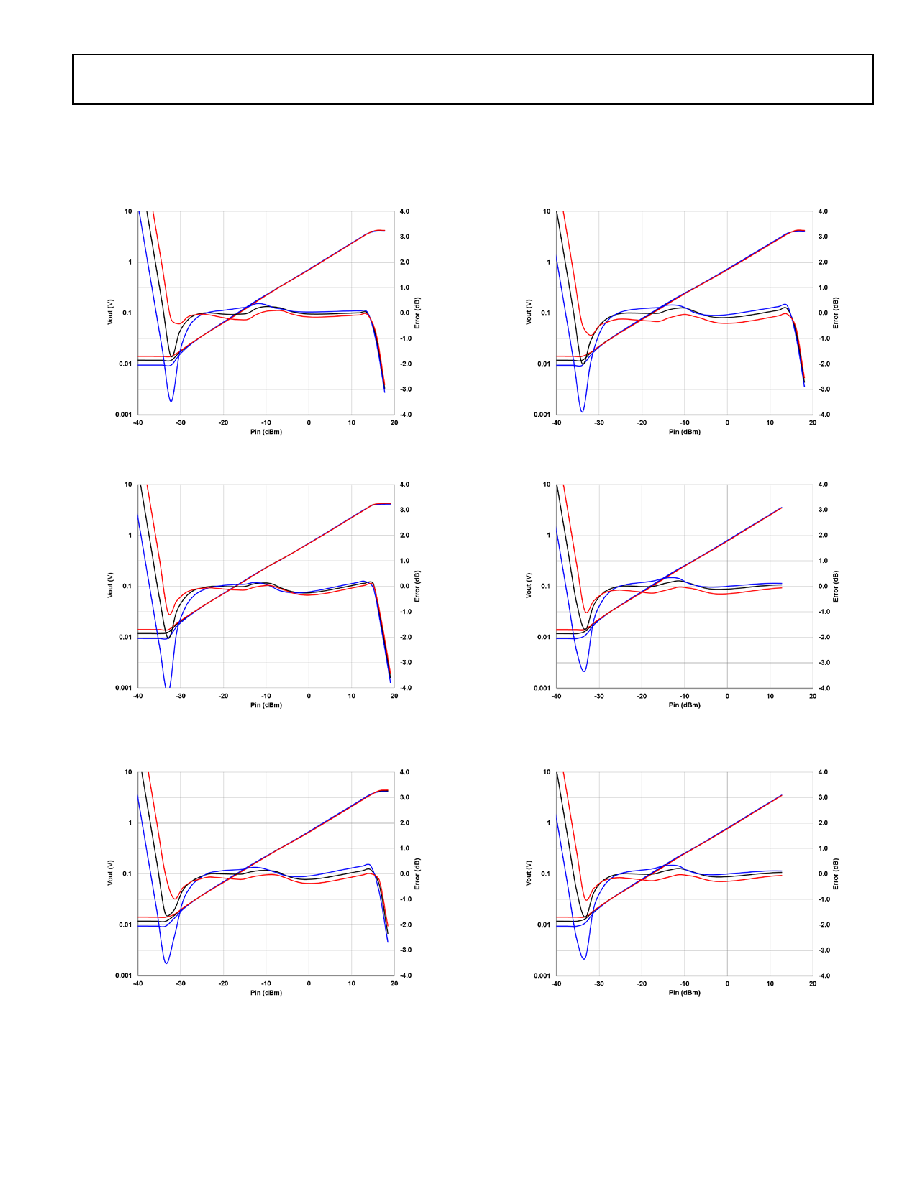

Figure 3 VOUT and Conformance Error vs. Pin and Temperature at 1GHz.
Figure 4 VOUT and Conformance Error vs. Pin and Temperature at 5GHz.
Figure 5 VOUT and Conformance Error vs. Pin and Temperature at 10GHz.
Figure 5 VOUT and Conformance Error vs. Pin and Temperature at 15GHz.
Figure 7 VOUT and Conformance Error vs. Pin and Temperature at 20GHz
(Data Truncated by Measurement Setup).
Figure 8 VOUT and Conformance Error vs. Pin and Temperature at 25GHz.
(Data Truncated by Measurement Setup).
TBD
TBD
