SSM2315
Rev. A | Page 8 of 16
4.1
3.9
3.7
3.5
3.3
3.1
2.9
2.7
2.5
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
SUPPLY VOLTAGE (V)
RL = 3Ω + 33µH
RL = 4Ω + 33µH
NO LOAD

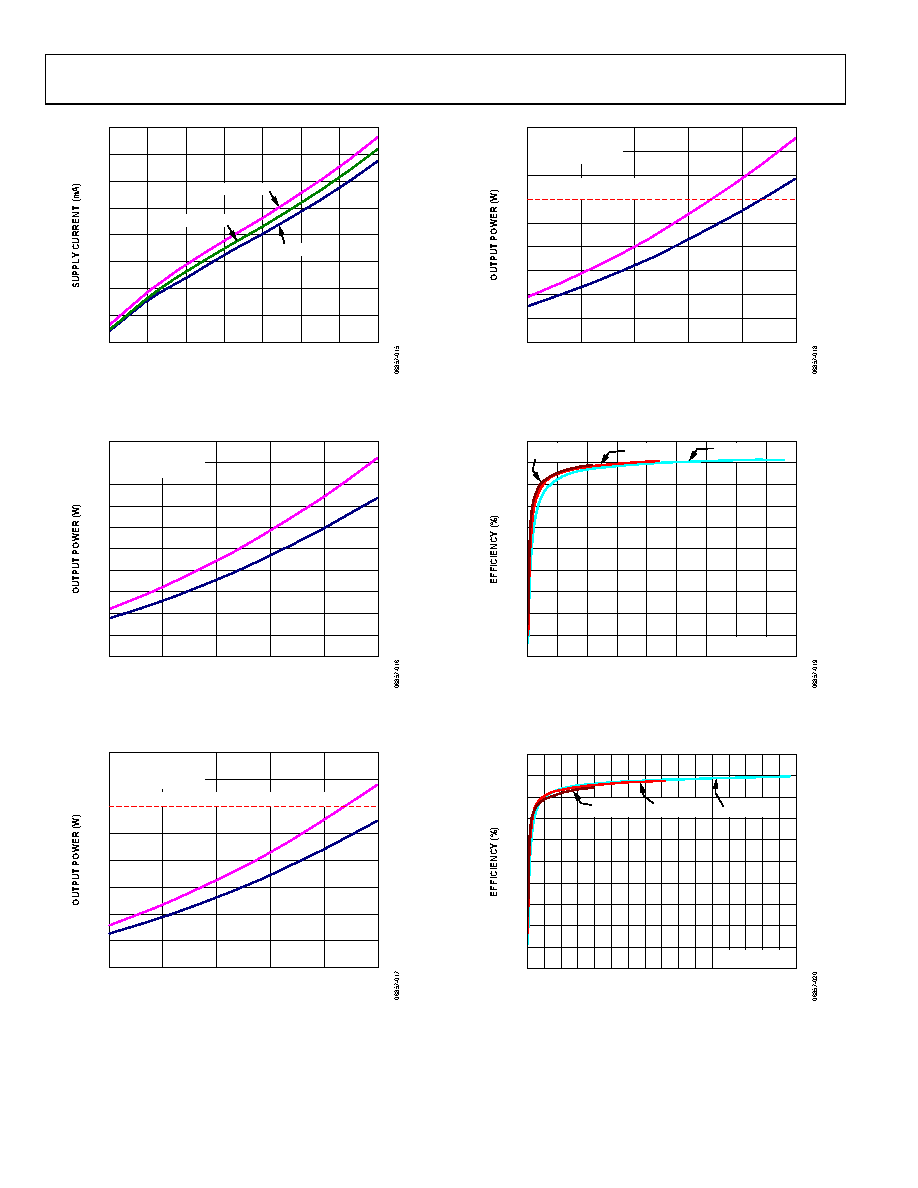

Figure 15. Supply Current vs. Supply Voltage
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
2.5
3.0
3.5
4.0
4.5
5.0
SUPPLY VOLTAGE (V)
10%
1%
FREQUENCY = 1kHz
GAIN = 6dB
RL = 8Ω + 33µH
Figure 16. Maximum Output Power vs. Supply Voltage,
RL = 8 Ω + 33 μH, Gain = 6 dB
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0
2.5
3.0
3.5
4.0
4.5
5.0
SUPPLY VOLTAGE (V)
10%
1%
FREQUENCY = 1kHz
GAIN = 6dB
RL = 4Ω + 33µH
DO NOT EXCEED 3W CONTINUOUS OUTPUT POWER
Figure 17. Maximum Output Power vs. Supply Voltage,
RL = 4 Ω + 33 μH, Gain = 6 dB
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0
2.5
3.0
3.5
4.0
4.5
5.0
SUPPLY VOLTAGE (V)
10%
1%
FREQUENCY = 1kHz
GAIN = 6dB
RL = 3Ω + 33µH
DO NOT EXCEED 3W
CONTINUOUS OUTPUT POWER
Figure 18. Maximum Output Power vs. Supply Voltage,
RL = 3 Ω + 33 μH, Gain = 6 dB
100
90
80
70
60
50
40
30
20
10
0
01.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
OUTPUT POWER (W)
RL = 8Ω + 33µH
VDD = 2.5V
VDD = 3.6V
VDD = 5V
Figure 19. Efficiency vs. Output Power, RL = 8 Ω + 33 μH
100
90
80
70
60
50
40
30
20
10
0
03.2
3.0
2.8
2.6
2.4
2.2
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
OUTPUT POWER (W)
RL = 4Ω + 33µH
VDD = 2.5V
VDD = 3.6V
VDD = 5V
Figure 20. Efficiency vs. Output Power, RL = 4 Ω + 33 μH
