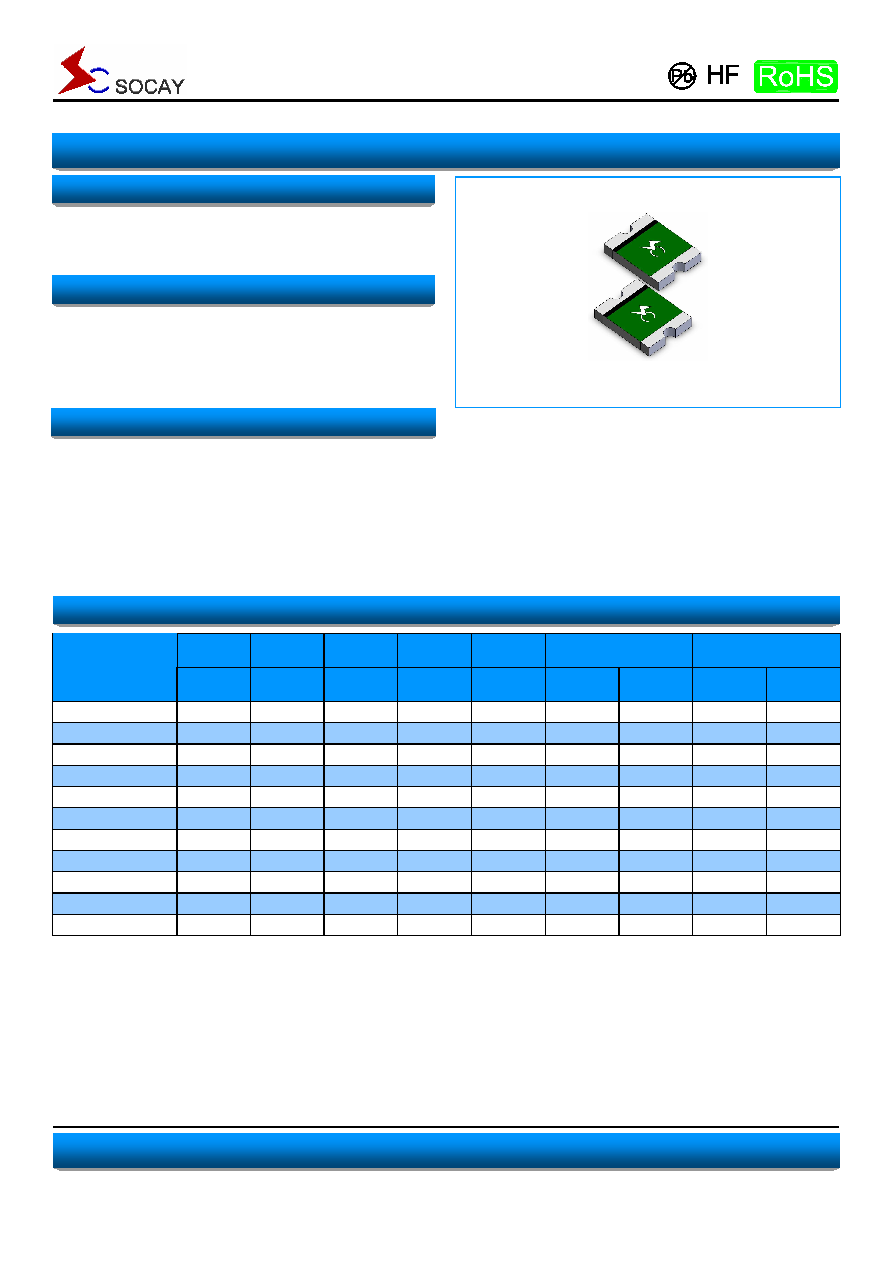

SCF005-1210-R datasheet(1/4 Pages) SOCAY

部品番号	SCF005-1210-R

部品情報	Surface Mount Resettable PTCs

PDF	4 Pages

Scroll/Zoom	100%

メーカー	SOCAY [Socay Electornics Co., Ltd.]

ホームページ	http://www.socay.com

Logo

1 / 4 page

Surface Mount Resettable PTCs

Revision September 12, 2013

1 / 4

@ SOCAY Electronics Co., Ltd. 2013

Specifications are subject to change without notice.

Please refer to www.socay.com for current information.

SCF1210 Series

SOCAY Electronics Co., Ltd.

www.socay.com

The

SCF1210

Series

PTC

provides

surface

mount

over-current protection for applications where space is at a

premium and resettable protection is desired.

u

RoHS compliant, Lead-Free and Halogen-Free

u

Fast time-to-trip

u

Compact design saves board space

u

Low resistance

u

Low-profile

u

PC motherboard - plug and play protection

u

Mobile phones - battery and port protection

u

Game console port protection

u

USB peripherals

u

Disk drive

u

PDAS / digital cameras

u

Power ports

u

General electronics

Hold

Current

Trip

Current

Rated

Voltage

Max

Current

Typical

Power

Maximum Time

To Trip

Resistance

Part Number

I hold (A)

I trip

(A)

V max

(Vdc)

I max

(A)

P dtyp.

(W)

Current

(A)

Time

(Sec.)

R min

(

Ω)

R 1max

(

Ω)

SCF005-1210-R

0.05

0.15

60

100

0.60

0.25

1.50

3.600

50.000

SCF010-1210-R

0.10

0.25

60

100

0.60

0.50

1.50

1.600

15.000

SCF020-1210-R

0.20

0.40

30

100

0.60

8.00

0.02

0.800

5.000

SCF035-1210-R

0.35

0.70

16

100

0.60

8.00

0.20

0.320

1.3000

SCF050-1210-R

0.50

1.00

16

100

0.60

8.00

0.10

0.250

0.900

SCF075-1210-R

0.75

1.50

8

100

0.60

8.00

0.10

0.130

0.400

SCF075-24-1210R

0.75

1.50

24

100

0.60

8.00

0.10

0.130

0.400

SCF110-1210R

1.10

2.20

6

100

0.80

8.00

0.30

0.060

0.210

SCF150-1210R

1.50

3.00

6

100

0.80

8.00

0.50

0.040

0.110

SCF175-1210R

1.75

4.00

6

100

0.80

8.00

0.60

0.020

0.080

SCF200-1210R

2.00

4.00

6

100

0.80

8.00

1.00

0.015

0.070

I hold= Hold current: maximum current device will pass without tripping in 23°C still air.

I trip= Trip current: minimum current at which the device will trip in 23°C still air.

V max= Maximum voltage device can withstand without damage at rated current (Imax)

I max= Maximum fault current device can withstand without damage at rated voltage (Vmax)

Pdtyp.= Power dissipated from device when in the tripped state at 23°C still air.

R min= Minimum resistance of device in initial (un-soldered) state.

R 1max= Maximum resistance of device at 23°C measured one hour after tripping.

Caution: Operation beyond the speci

ﬁed rating may result in damage and possible arcing and flame.

Electrical Parameters

Applicable

Description

Features
