MODEL L SERIES

L Series

www.bitechnologies.com www.irctt.com www.welwyn-tt.com

General Note

TT electronics reserves the right to make changes in product specification without notice or liability.

All information is subject to TT electronics’ own data and is considered accurate at time of going to print.

© TT electronics plc

03.12

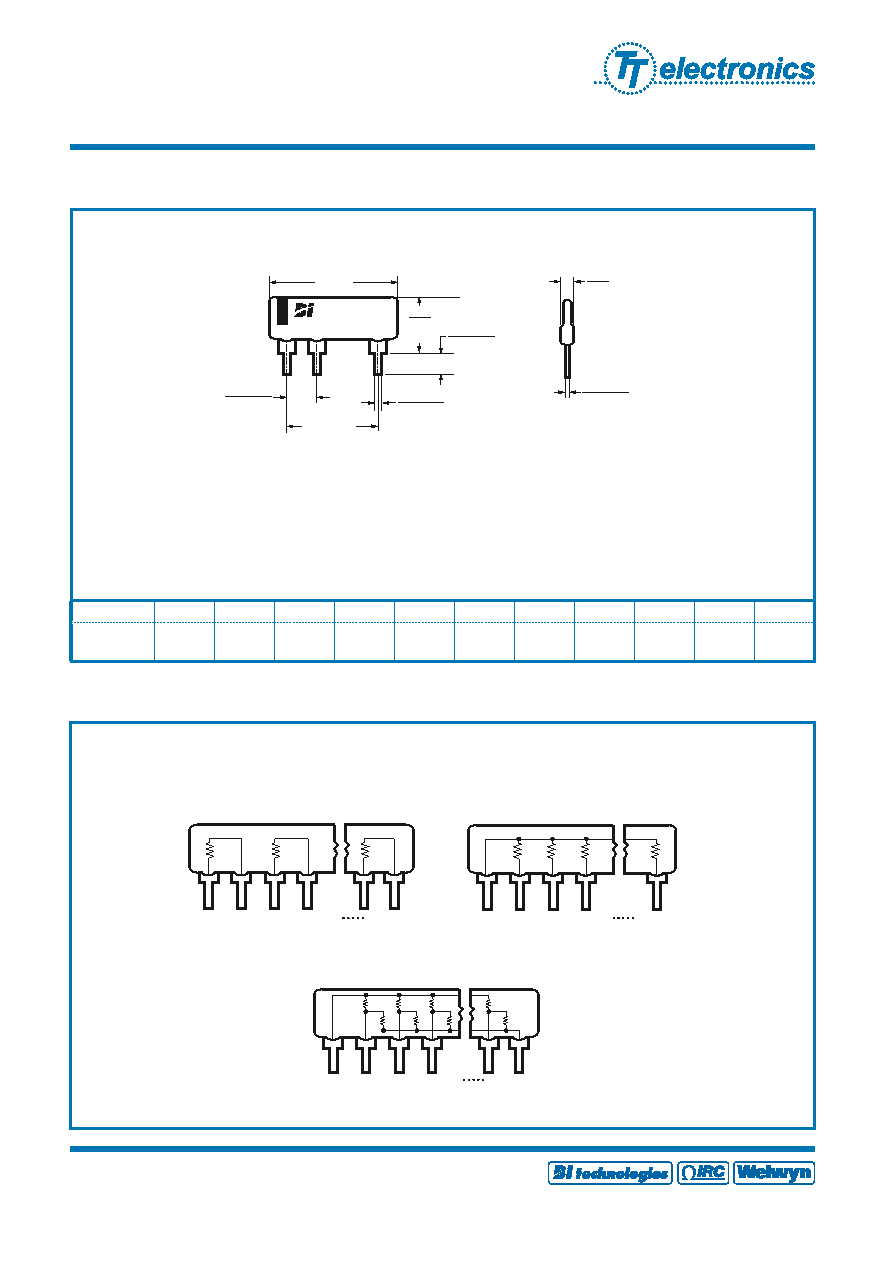

Outline Dimensions (Inch/mm)

Schematics

No. of Leads

.100 ± .005

2.54 ± 0.13

Pitch. Non-

Accumulative

.020 ± .004

0.51 ± 0.10

.012 ± .003

0.31 ± 0.08

Centered

on Package

.140 ± .020

3.56 ± 0.51

Max.

“L” Max.

Max.

12

34

n

-3 Circuit

Isolated Resistors

-5 Circuit

Dual Terminator

12

34

R1

R2

n

12

34

n

-1 Circuit

Bussed Resistors

# of Leads

4

5

6

7

8

9

10

11

12

13

14

Dim. “L”

Max.

.40

10.16

.50

12.70

.60

15.24

.70

17.78

.80

20.32

.90

22.86

1.00

25.40

1.10

27.94

1.20

30.48

1.30

33.02

1.40

35.56

.200

.098

5.08

2.5
