1 / 1 page

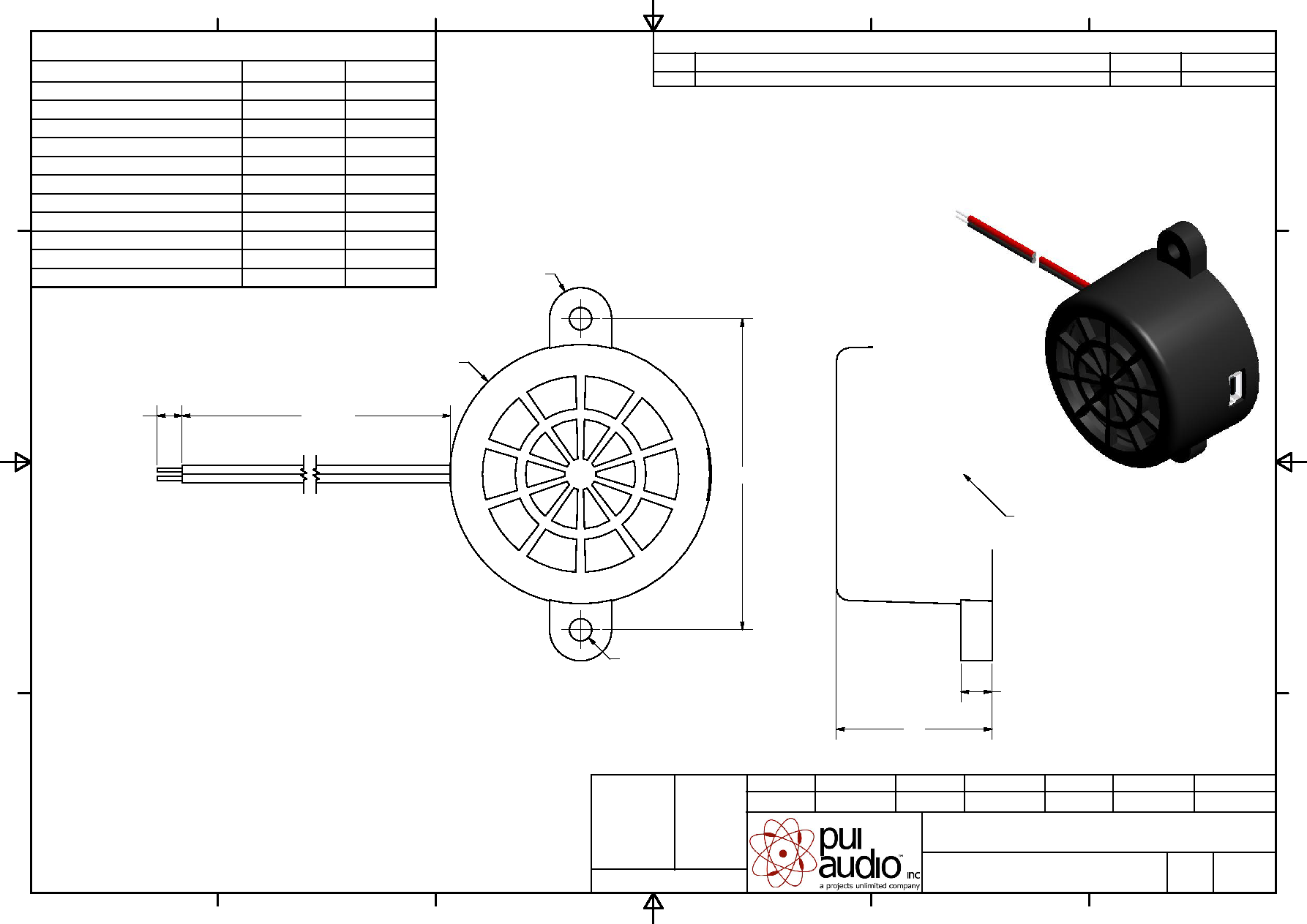

Indicator

API-4260-LW150-R

J.D.

M.L.

B.R.

1/6/2011

-

Designed by

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

1/6/2011

Date

3/29/2011

Date

3/29/2011

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE 0.5 AND

ANGLES ARE 3 .

API-4260-LW150-R.idw

A3

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

-

RELEASED FROM ENGINEERING

1/6/2011

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED VOLTAGE

12

Vdc

OPERATING VOLTAGE RANGE

7 ~ 24

Vdc

RATED CURRENT (MAX)

350

mA

MINIMUM SPL @ 10 CM (1KHz)

100

dBA

RESONANT FREQUENCY

100 ~ 6000

Hz

TONE OR PULSE RATE

REPEATING

0 pulse/sec

OPERATING TEMPERATURE

-20 ~ +60

C

STORAGE TEMPERATURE

-30 ~ +70

C

HOUSING MATERIAL

ABS

-

TERMINAL MATERIAL

LEAD WIRE

-

WEIGHT

30

grams

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

2003, Projects Unlimited Inc.

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR

WITHDRAWL WITHOUT NOTICE.

3. THIS PART IS RoHS 2002/95/EC COMPLIANT.

4. Max. FILE LENGTH ALLOWED IS 33 sec.

5. SAMPLING RATE: 12 KHz

6. CONTINUOUS SINGLE TONES OF 2KHz AND ABOVE MAY SOUND DISTORTED

DUE TO SAMPLING RATE.

7. WORKS WITH WINDOWS 2000, XP, VISTA or WIN 7.

8. OPTIONAL USB TO MINI USB CABLE: PUI PART# API-CABLE.

9. PATENT PENDING.

42

50

10 (2)

3.6 (2)

150

5

4

2

5

25

MINI USB

CONNECTOR

RED (+)

BLACK (-)

UL 1430 AWG #26
