POW-1644P-B-R datasheet(1/1 Pages) PUI

部品番号	POW-1644P-B-R

部品情報	RELEASED FROM ENGINEERING

PDF	1 Pages

Scroll/Zoom	100%

メーカー	PUI [Projects Unlimited, Inc.]

ホームページ	http://www.pui.com

Logo

1 / 1 page

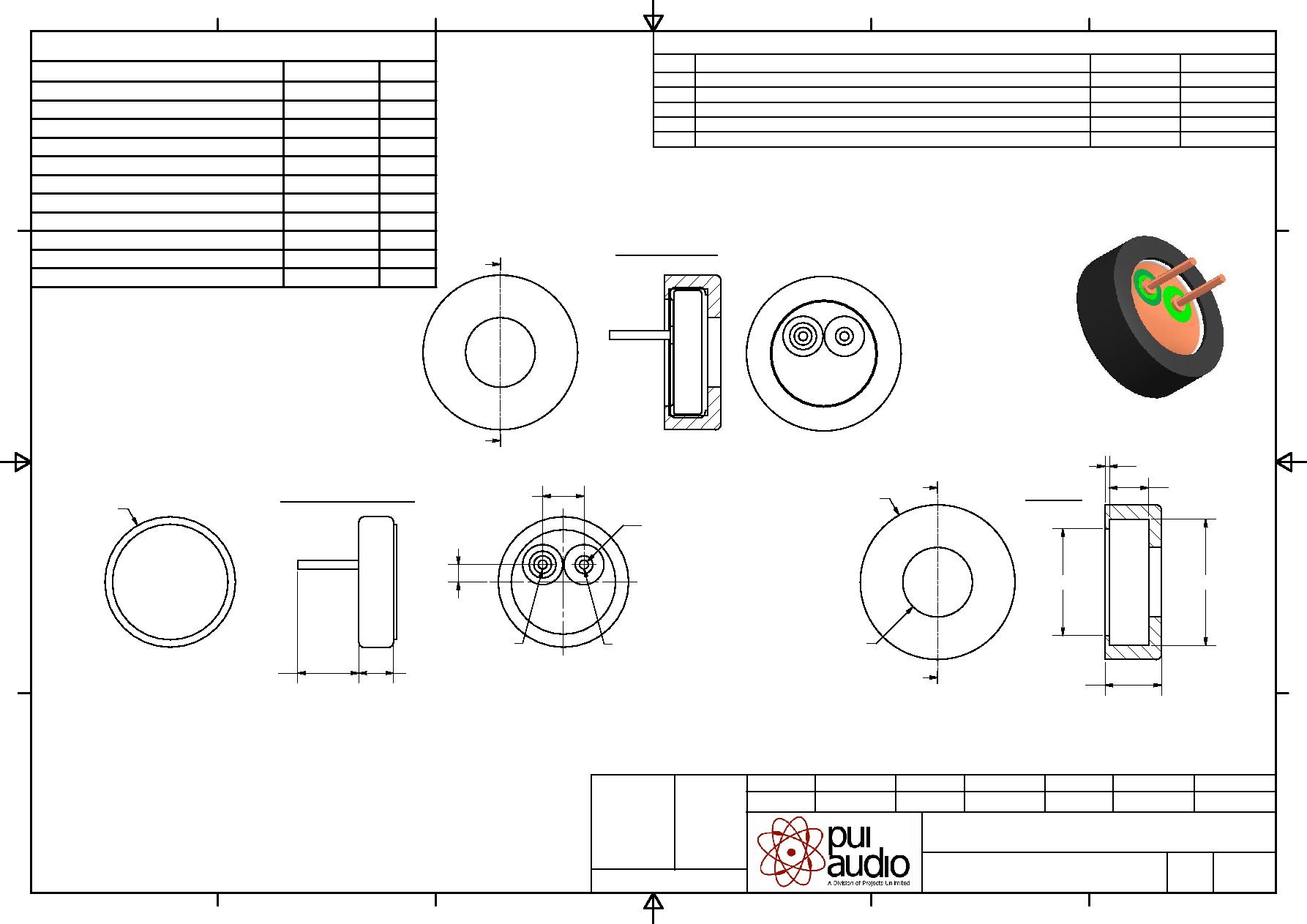

A-A ( 7 : 1 )

B-B ( 7 : 1 )

A

B

Microphone

POW-1644P-B-R

J.D.

B.R.

R.W.

8/30/2008

-

Designed by

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

10/19/2006

Date

10/20/2006

Date

10/20/2006

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE 0.5 AND

ANGLES ARE 3 .

POW-1644P-B-R.idw

A3

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

-

RELEASED FROM ENGINEERING

10/19/2006

A

DELETED MOLEX CONNECTOR NOTE

7/17/2007

D.F.

B

REVISED IP RATING

7/2/2008

B.R.

C

REVISED TO INVENTOR 3-D DRAWING TEMPLATE

8/30/2008

B.R.

D

ADDED TEMPERATURES AND PIN DIAMETER

1/29/2013

B.R.

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

DIRECTIVITY

OMNI

-

SENSITIVTY

-44

3

dB

STANDARD OPERATING VOLTAGE

2

Vdc

MAX OPERATING VOLTAGE

10

Vdc

CURRENT CONSUMPTION (MAX)

0.5

mA

IMPEDANCE

2.2

KOhm

SIGNAL TO NOISE RATIO (MIN.)

60

dB

OPERATING TEMPERATURE

-20 ~ +70

C

STORAGE TEMPERATURE

-40 ~ +85

C

TERMINAL

-

INTERNAL CAPACITOR

N/A

pF

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

2003, Projects Unlimited Inc.

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2011/65/EU COMPLIANT.

4. PART IS IP57 RATED.

5. ASSEMBLY IS WASHABLE WITH BOOT IN PLACE.

6

0.1

1.6

0.2

2.8

0.3

0.8

1.9

TERM. 1 (+)

TERM. 2 (-)

7.1

0.1

3.2

0.1

2.6

0.1

5.8

0.1

4.9

0.1

1.8

0.1

MICROPHONE

BOOT

ASSEMBLY

0.4

0.3

0.05
