ZLED7010

40V LED Driver with Temperature Compensation

Data Sheet

August 12, 2010

© 2010 Zentrum Mikroelektronik Dresden AG — Rev. 1.1

All rights reserved. The material contained herein may not be reproduced, adapted, merged, translated, stored, or used without the

prior written consent of the copyright owner. The information furnished in this publication is PRELIMINARY and subject to changes

without notice.

21 of 23

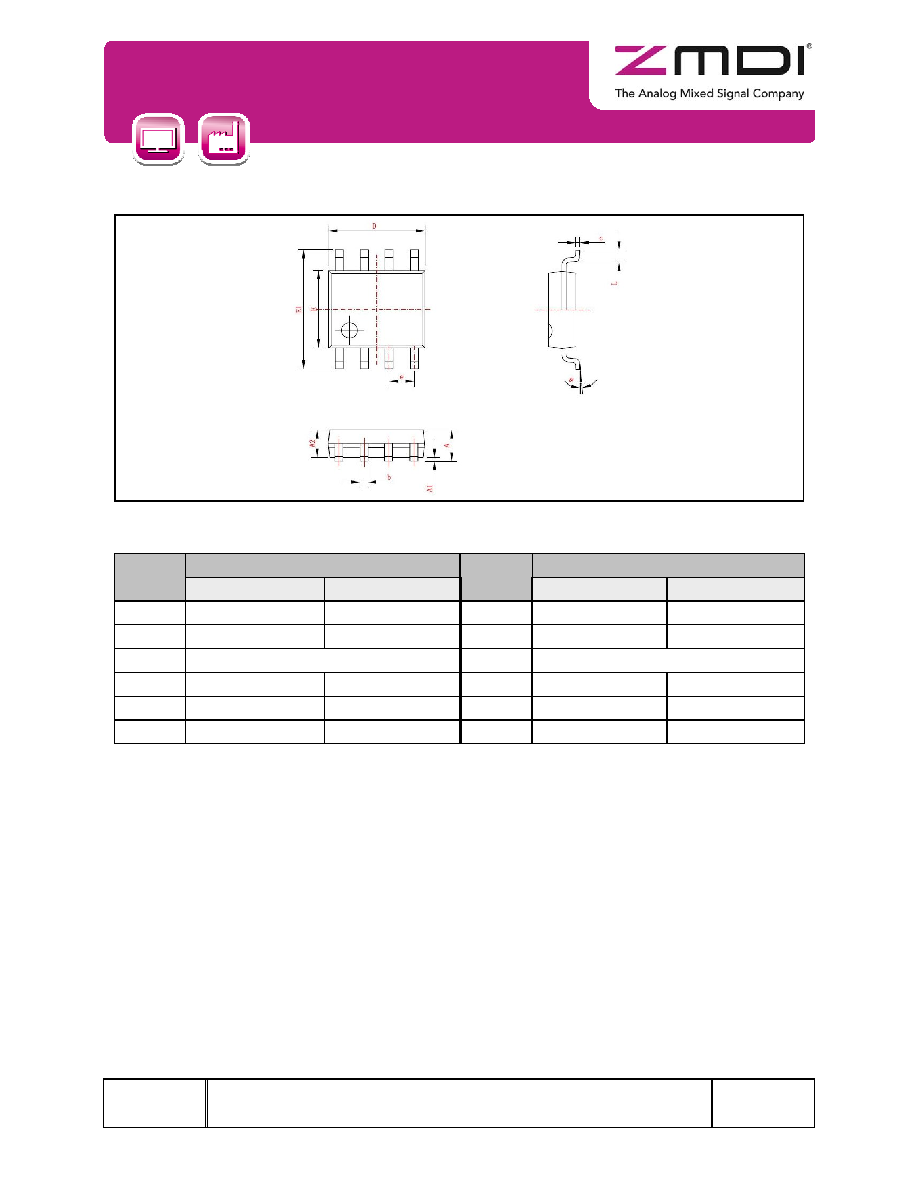

Figure 7.2

SOP-8 Package Drawing

Table 7.2

Package Dimensions SOP-8

Symbol

Min

Max

Symbol

Min

Max

A

1.350

1.750

E

3.800

4.000

A1

0.100

0.250

E1

5.800

6.240

A2

1.450 Typical

e

1.270 Typical

b

0.350

0.490

L

0.400

1.270

c

0.178

0.250

θ

0°

8°

D

4.800

5.000
