Description
M24C08-W M24C08-R M24C08-F
6/38
DocID023924 Rev 4
1
Description
The M24C08 is an 8-Kbit I2C-compatible EEPROM (Electrically Erasable PROgrammable
Memory) organized as 1 K × 8 bits.
The M24C08-W can be accessed with a supply voltage from 2.5 V to 5.5 V, the M24C08-R
can be accessed with a supply voltage from 1.8 V to 5.5 V, and the M24C08-F can be
accessed either with a supply voltage from 1.7 V to 5.5 V (over the full temperature range)
or with an extended supply voltage from 1.6 V to 1.7 V. All these devices operate with a
clock frequency of 400 kHz.

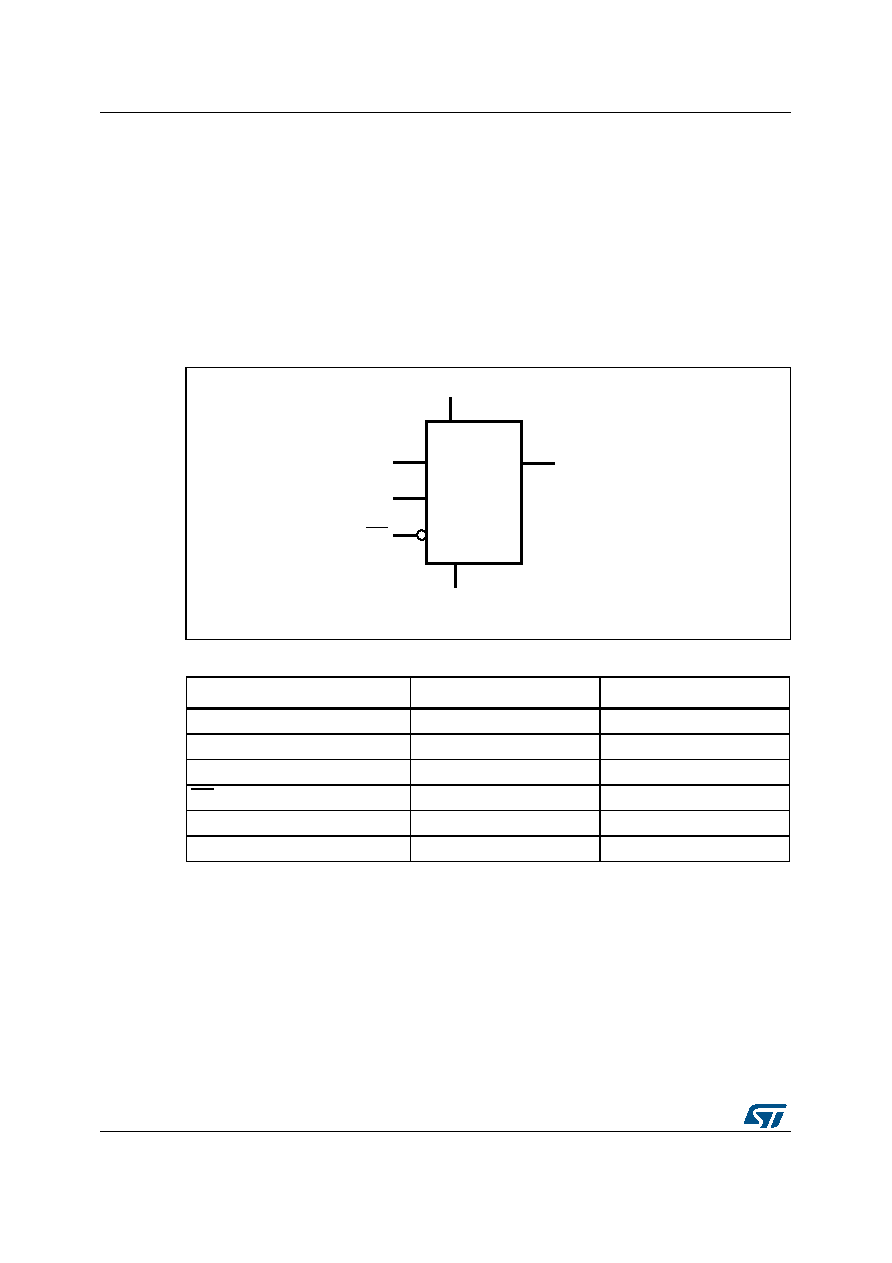

Figure 1. Logic diagram
Table 1. Signal names
Signal name
Function
Direction
E2(1)
1. Signal not connected in the WLCSP package.
Chip Enable
Input
SDA
Serial Data
I/O
SCL
Serial Clock
Input
WC(1)
Write Control
Input
VCC
Supply voltage
-
VSS
Ground
-
