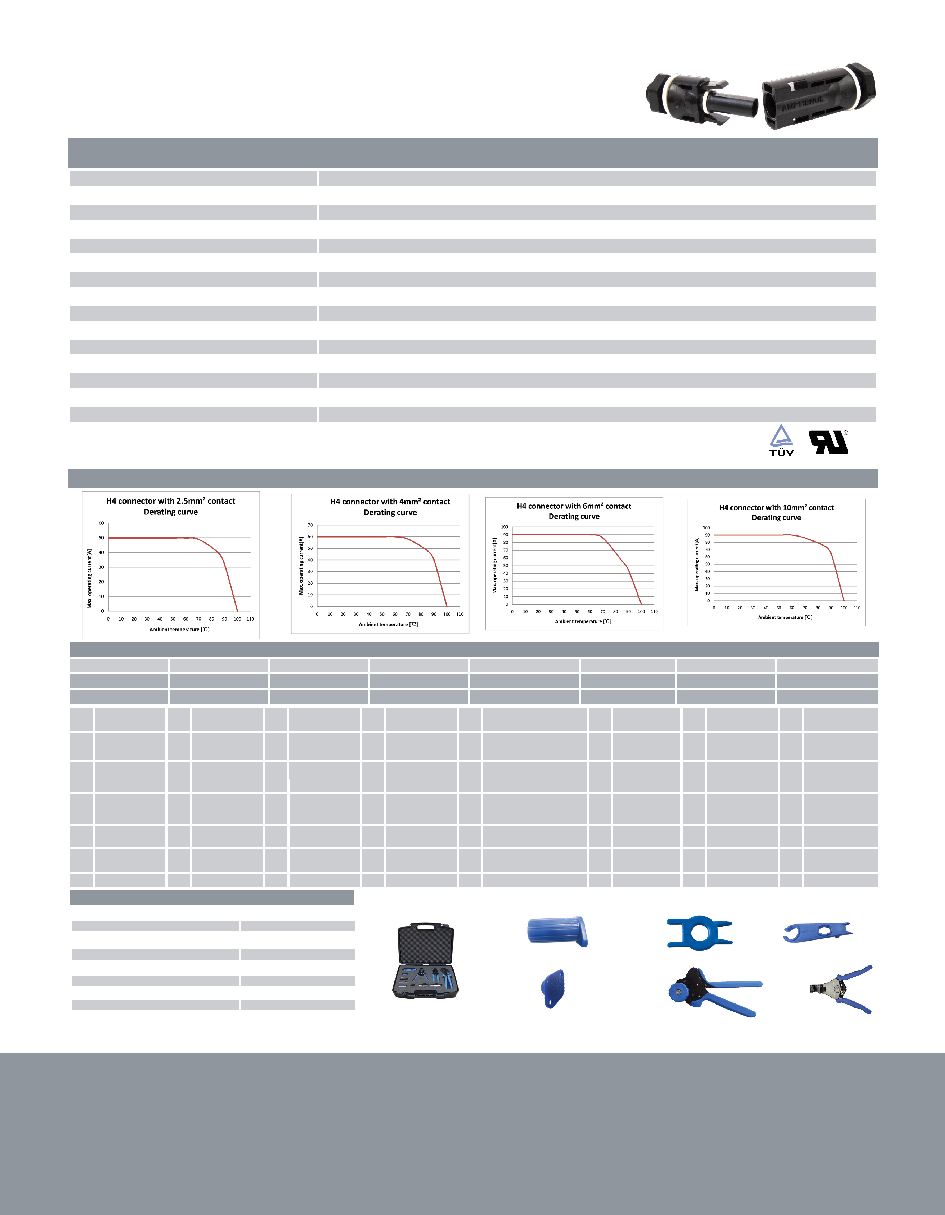

H4 PV Panel Connector

Rated current

32A(2.5mm, AWG14), 40A(4.0mm, AWG12), 44A(6.0mm, AWG10), 65A(10.0mm, AWG8)

Rated voltage

1000V (IEC/

TÜV), 1000V(UL)

Test voltage

6kV for 1 minute, 10kV impulse (1.2/50µS)(IEC)

Typical contact resistance

0.25m

Ω

Contact material

Copper, tin plated

Contact system

Insulation material

PC

Locking mechanism

Snap-lock, special unlock tool required to un-mate as required by NEC2008

Cable strain relief

Compression gland with ratcheting gland nut

Degree of protection

IP68 (1 meter, 1 hour) mated

Safety class

II (IEC61140)

Pollution degree

2 (IEC60664)

Overvoltage category

III (IEC60664)

Flame class

UL94-V0

Ambient temperature range

-40°C to +90°C

How t o order

R 50157783

E 339277

H4 Universal Unlocking Tool

H4 Strip Tool

H4

H4

C

Connector

F

Female +

M

PanelM12

1

1.5- 2.5mm²/ 16-14 AWG

(S & F Contact)

T

TÜV

I

Single

Leave Blank for

Machined Contact

M

Male -

N

Panel M14

2

2.5mm²/ 14 AWG

(Machined Contact)

U

UL

C

100pcs, Bags

S

S & F Contact

(Single Contact)

P

Mated Pair

4

4.0mm²/ 12 AWG

(Machined Contact)

D

Dual

D

500pcs, Bags

4

4.0-6.0mm²/ 12-10 AWG

(S & F Contact)

6

6.0mm²/ 10 AWG

(Machined Contact)

8

10.0mm²/ 8 AWG

(Machined Contact Only)

0

Less Contacts

1

2

3

4

5

6

7

8

H4

C

F

M

2

D

I

S

Product line

Product type

Gender

Connector Type

Cable size

Approvals

Packaging

Variations

H4 Crimp Tool

H4 Wrench Tool

D erat ing c urves

H4 Sealing Cap Female

H4 Sealing Cap Female

H4 Tool-Kit

How t o order ac c essories

Description

Ordering code

H4 Sealing Cap Female

H4PF

H4 Sealing Cap Male

H4PM

H4 Strip Tool

H4TS0000

H4 Crimp Tool (machined contact)

H4TC0001

H4 Crimp Tool (S & F contact)

H4TC0002

H4 Wrench Tool

H4TW0001

H4 Universal Unlocking Tool

H4TU0000

H4 Tool-Kit

H4TK0000
