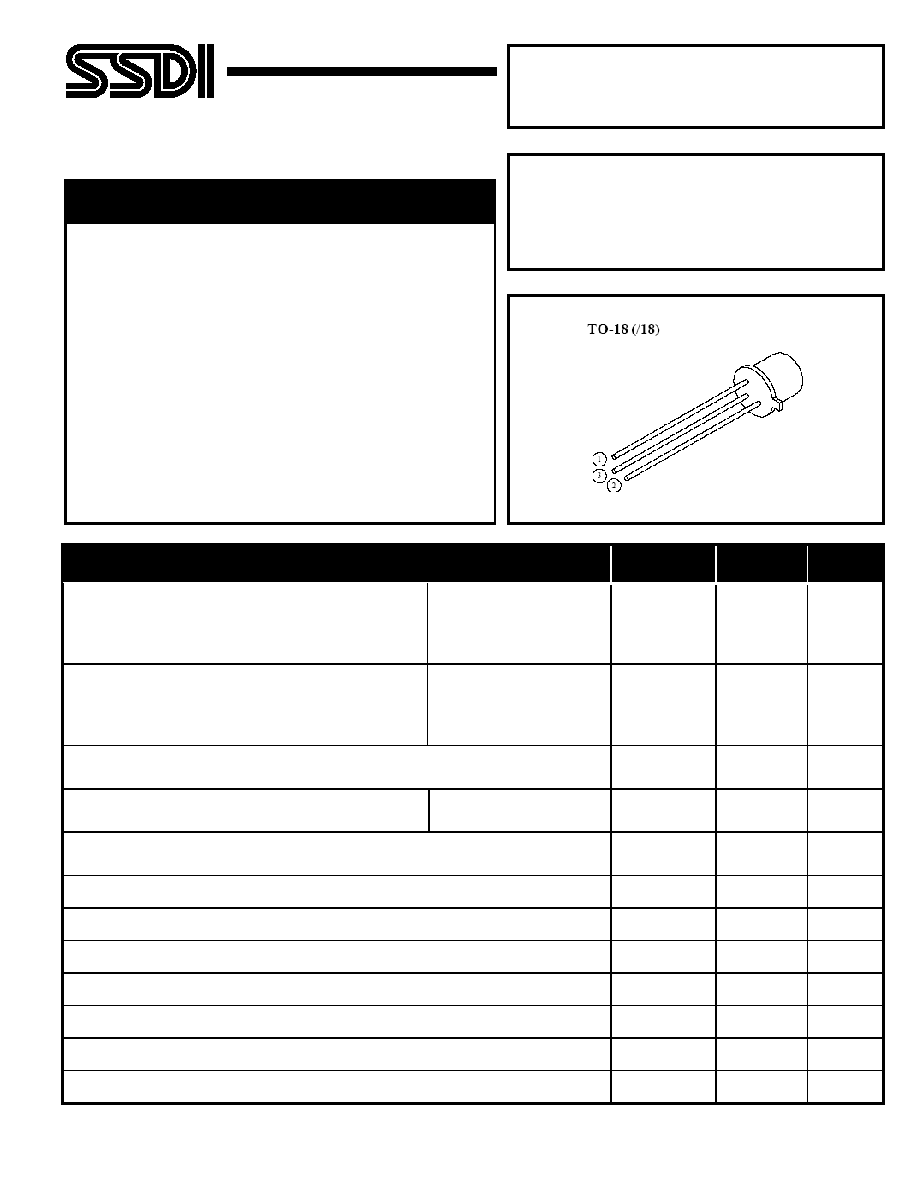

Solid State Devices, Inc.

14830 Valley View Blvd * La Mirada, Ca 90638

Phone: (562) 404-7855 * Fax: (562) 404-1773

ssdi@ssdi-power.com * www.ssdi-power.com

Designer’s Data Sheet

FEATURES:

• Low-Level Gate Characteristics

• IGT = 200 µA (Max) @ 25oC

• Low Holding Current IH = 1 mA (Max) @ 25oC

• Anode Common to Case

• Hermetically Sealed

• TX, TXV, S-Level Screening Available. Consult

Factory

SFS1826 thru SFS1829

1.6 AMPS

200 ─ 400 VOLTS

SILICON CONTROLLED

RECTIFIER

MAXIMUM RATINGS

Symbol

Value

Units

Peak Repetitive Reverse Voltage

and DC Blocking Voltage

SFS1826

SFS1827

SFS1828

SFS1829

VDRM

VRRM

200

250

300

400

Volts

Non-Repetitive Peak Reverse Blocking Voltage

(t < 5.0 ms)

SFS1826

SFS1827

SFS1828

SFS1829

VRSM

300

350

400

500

Volts

RMS On-State Current

(All Conduction Angles)

IT (RMS)

1.6

Amps

Average On-State Current

TC = 50

oC

TA = 25

oC

IT (AV)

1.0

0.7

Amps

Peak Non-Repetitive Surge Current

(One Cycle, 60 Hz, TC = 80

oC )

ITSM

15

Amps

Peak Gate Power

PGM

0.1

Watts

Average Gate Power

PG (AV)

0.01

Watts

Peak Gate Current

IGM

0.1

Amps

Peak Gate Voltage

VGM

6.0

Volts

Operating Junction Temperature Range

TJ

-65 to +200

oC

Storage Temperature Range

Tstg

-65 to +200

oC

Thermal Resistance, Junction to Case

RθJC

72

oC/W
