QorIQ Communications Platforms

QorIQ P1010 and P1014

Communications Processors

Target Markets and Applications

• Wireless LAN access points

(802.11ac/802.11n)

• SOHO/SMB routers

• Controller for Ethernet switches

• Network attached storage

• Video surveillance

• Factory automation and industrial control

Overview

The QorIQ P1010 and P1014 processors are

members of the value-perfomance tier, offering

extensive integration and extreme power

intelligence for a wide variety of applications

in cost-sensitive networking, network

attached storage, digital video surveillance

and industrial segments. Based on 45 nm

technology for low-power implementation,

the P1010 and P1014 processors provide a

single-core, low-power solution for the 533

to 1000 MHz performance range, along with

a trusted security platform and a rich set of

interfaces.

Secure Boot

The secure boot feature ensures that the

processors only run authenticated code.

Through a set of fuses that OEMs can

program once but can never be read, secure

boot prevents unauthorized parties from

reverse engineering code to steal intellectual

property, from loading illegitimate code to

change system functionality or from extracting

sensitive user information that may be stored

in the system.

Coherent System Bus

Security

4.4

Security Fuse

Processor

USB 2.0 w/PHY

Security Monitor

IFC, TDM

2x FlexCAN

SD/MMC

2x DUART

SPI, GPIO

2x I2C

6-Lane 2.5 GHz SerDes

DMA

Power Architecture®

e500-v2 Core

32 KB

D Cache

32 KB

I Cache

256 KB

Frontside

Cache

SATA

1 GE

(P1010

only)

(P1010 only)

16/32-bit DDR3/3L

Memory Controller

(16-bit only for the P1014)

PCIe

Accelerators and Memory Control

Networking Elements

Core Complex (CPU and L2 Cache)

Basic Peripherals and Interconnect

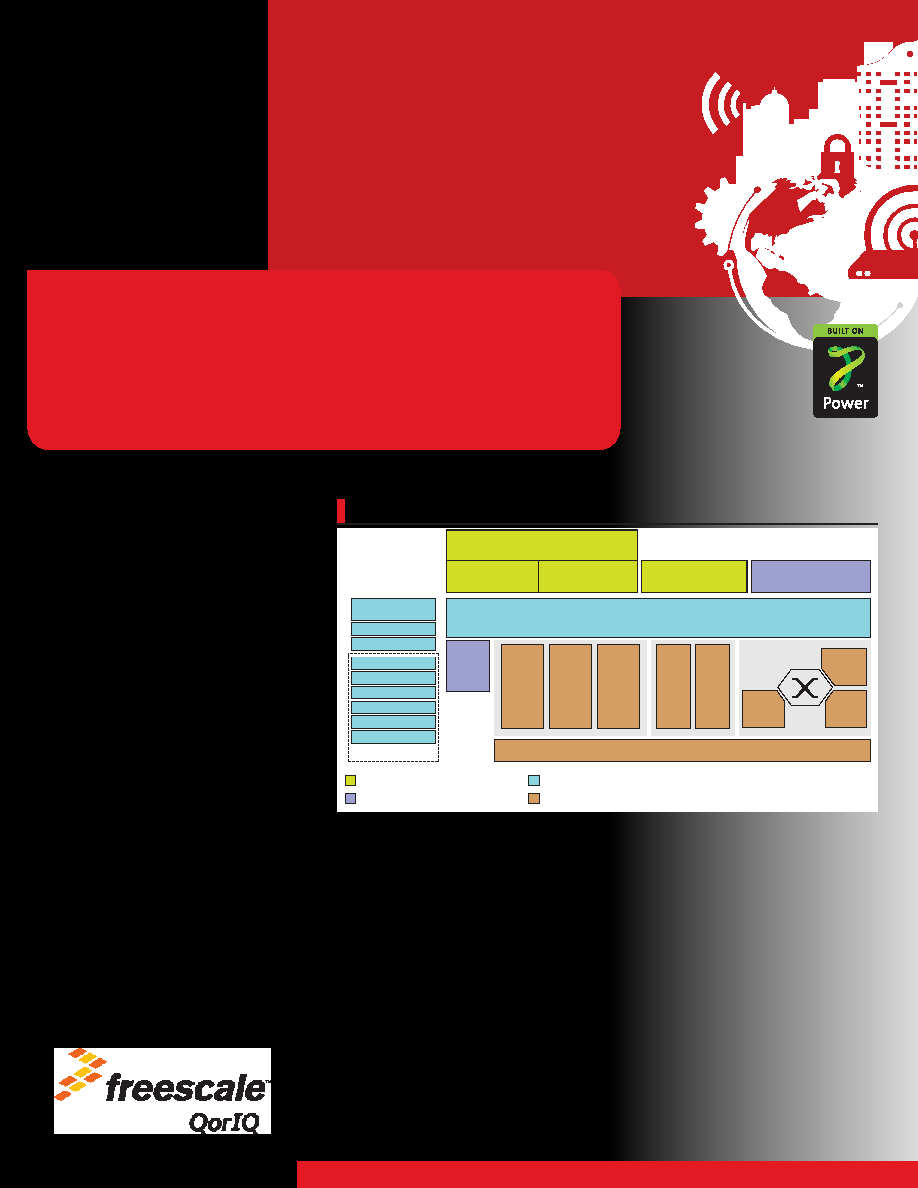

QorIQ P1010 and P1014 Block Diagram

QorIQ P1010 and P1014 Processor Block Diagram
