WPANTDP078-R1A

Dual Band Cellular Antenna

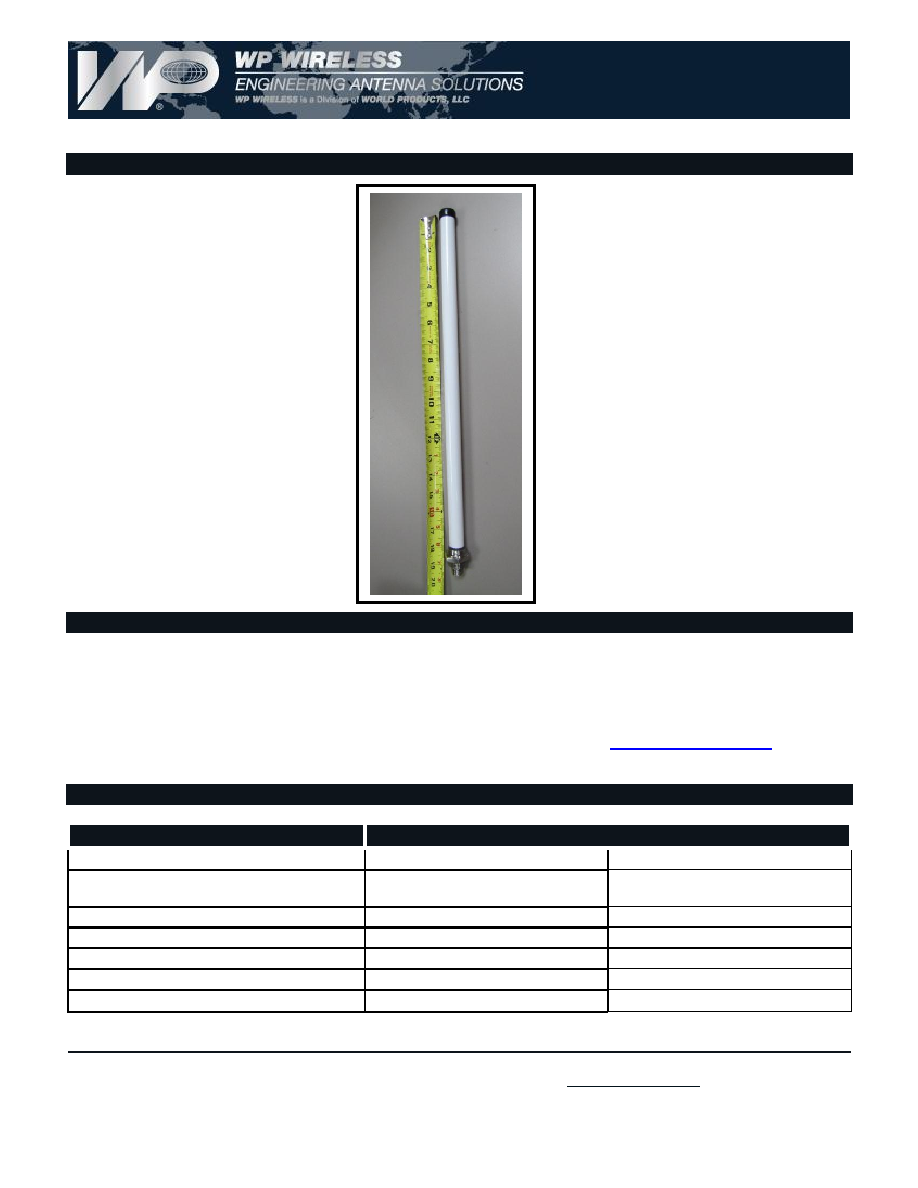

Picture of the Part

Application

The WPANTDP078-R1A is a dual band cellular antenna. The height of the antenna is 18 inches and terminated by a

Type N-female connector at the base.

WP Wireless can assist your engineers to optimize mounting positions for these antennas in your specific application

and can further assist to trouble shoot system integration issues such as TRP/TIS and FCC requirements. WP

Wireless specializes in developing customized Antenna solutions. Please contact sales@wp-wireless.com with your

specific application requirements.

Electrical Properties

Parameter

Antenna Performance

Operating Frequency

810

– 900 MHz

1800

– 1990 MHz

Recommended Impedance of the

customer Radio Module[

]

50Ω

VSWR

– Typical

< 2:1

Peak Gain [dBi] (Typical)

6 dBi

Polarization

Linear

Pattern

Near Omnidirectional

Accepted Power [W] (Max)

2 Watts
