QBLP651 Series

1206 LED with Inner Lens

---------------------------------------------------------------------------------------------------------------------------------------

Product: QBLP651_series

Date: October 16, 2014

Page 3 of 14

Version# 1.2

Introduction

Feature:

 Water clear lens (except white color)

 Yellow lens for white

 Tape and reel packaging

 Bright LED package

 InGaN technology for IB/IG/IW

 AllnGaP technology for R/AG/Y/O

 40°Viewing Angle (R/AG/Y/O/IB/IG)

 165°Viewing Angle (IW)

Description:

These 1206 LEDs have a height profile of 1.40mm.

With a combination of high brightness output and a

small footprint, these LEDs are ideal for status

indication.

Application:

 Status indication

 Back lighting application

Certification & Compliance:

 TS16949

 ISO9001

 RoHS Compliant

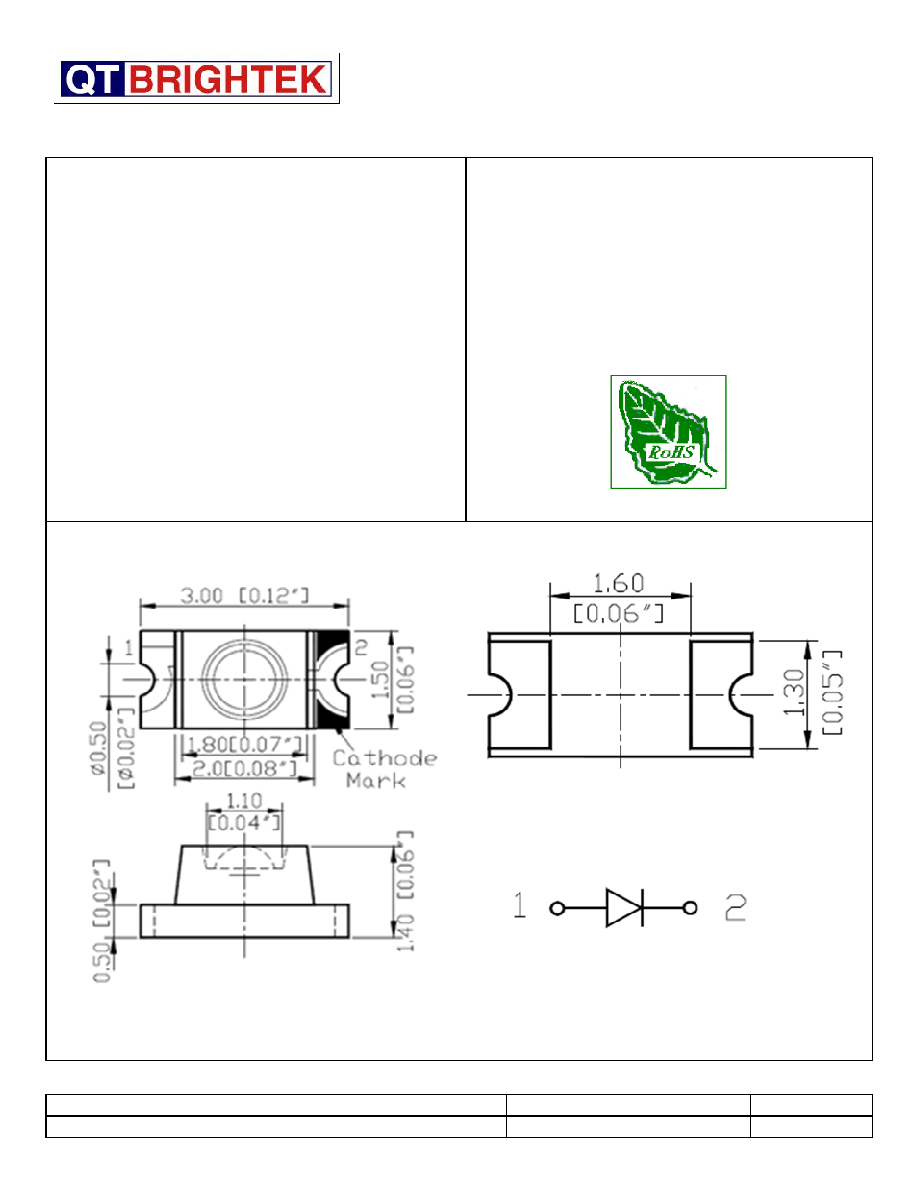

Dimension:

Units: mm / tolerance = +/-0.1mm
