UNISONIC TECHNOLOGIES CO., LTD

UT3414

Power MOSFET

www.unisonic.com.tw

1 of 4

QW-R502-248.F

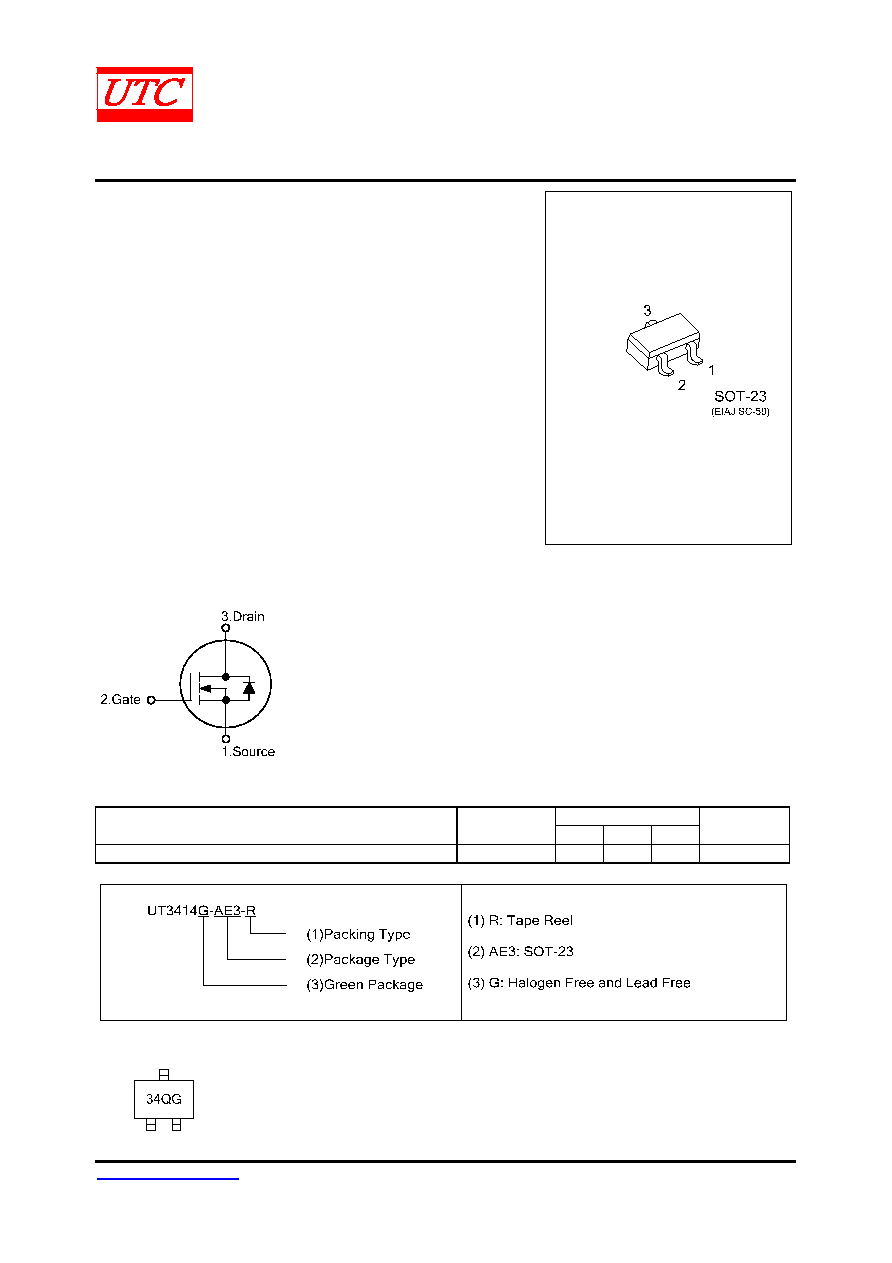

N-CHANNEL ENHANCEMENT

MODE



DESCRIPTION

The UT3414 uses advanced trench technology to provide

excellent RDS(ON), low gate charge and operation with gate voltages

as low as 1.8V. This device is suitable for use as a load switch or in

PWM applications.



FEATURES

* RDS(ON) < 50mΩ @VGS = 4.5V

* RDS(ON) < 63mΩ @VGS = 2.5V

* RDS(ON) < 87mΩ @VGS = 1.8V

* Low capacitance

* Low gate charge

* Fast switching capability

* Avalanche energy specified



SYMBOL



ORDERING INFORMATION

Ordering Number

Package

Pin Assignment

Packing

1

2

3

UT3414G-AE3-R

SOT-23

S

G

D

Tape Reel

Note: Pin Assignment: G: Gate

D: Drain

S: Source



MARKING
